6. If you want to export the log fi les, click the Export button to enter the Export menu.
You can also export all the log fi les stored in the HDD.
(1) Enter the Log Export interface.
Menu > Maintenance > Log Information>Log Export

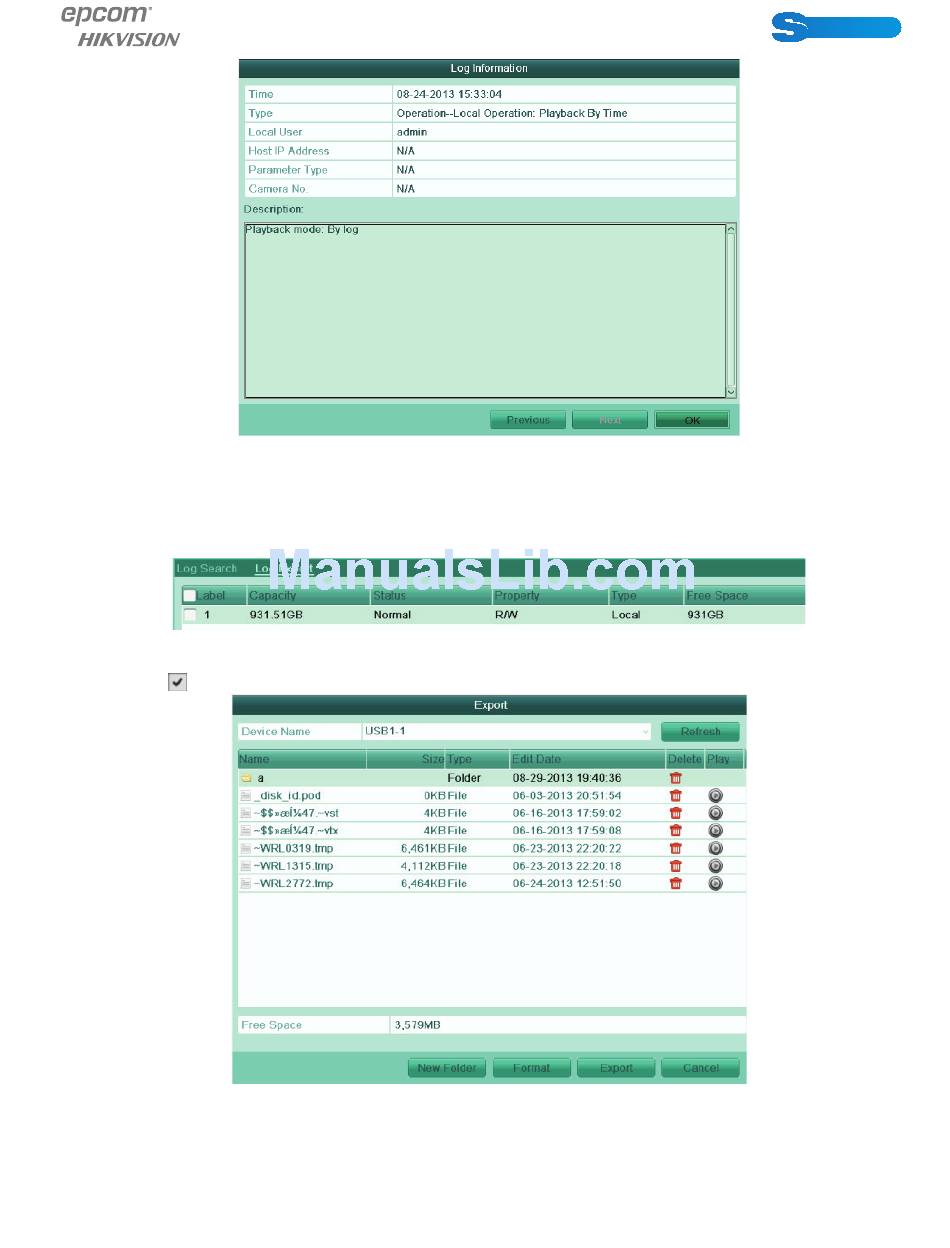

Figure 12.10 Log Export Interface
(2) Check checkbox to select the HDD and click Export to enter the export interface.
7. Select the backup device from the dropdown list of Device Name.
8. Click the Export to export the log fi les to the selected backup device.
You can click the New Folder button to create new folder in the backup device, or click the Format button to format the bac-
116
Figure 12.9 Log Details
Figure 12.11 Export Log Files
