Description of the buttons on the soft keyboard:
Icon Description
Number
...
Lowercase/Uppercase
Backspace
Enter
English input method

1.4 Rear Panel

S Series

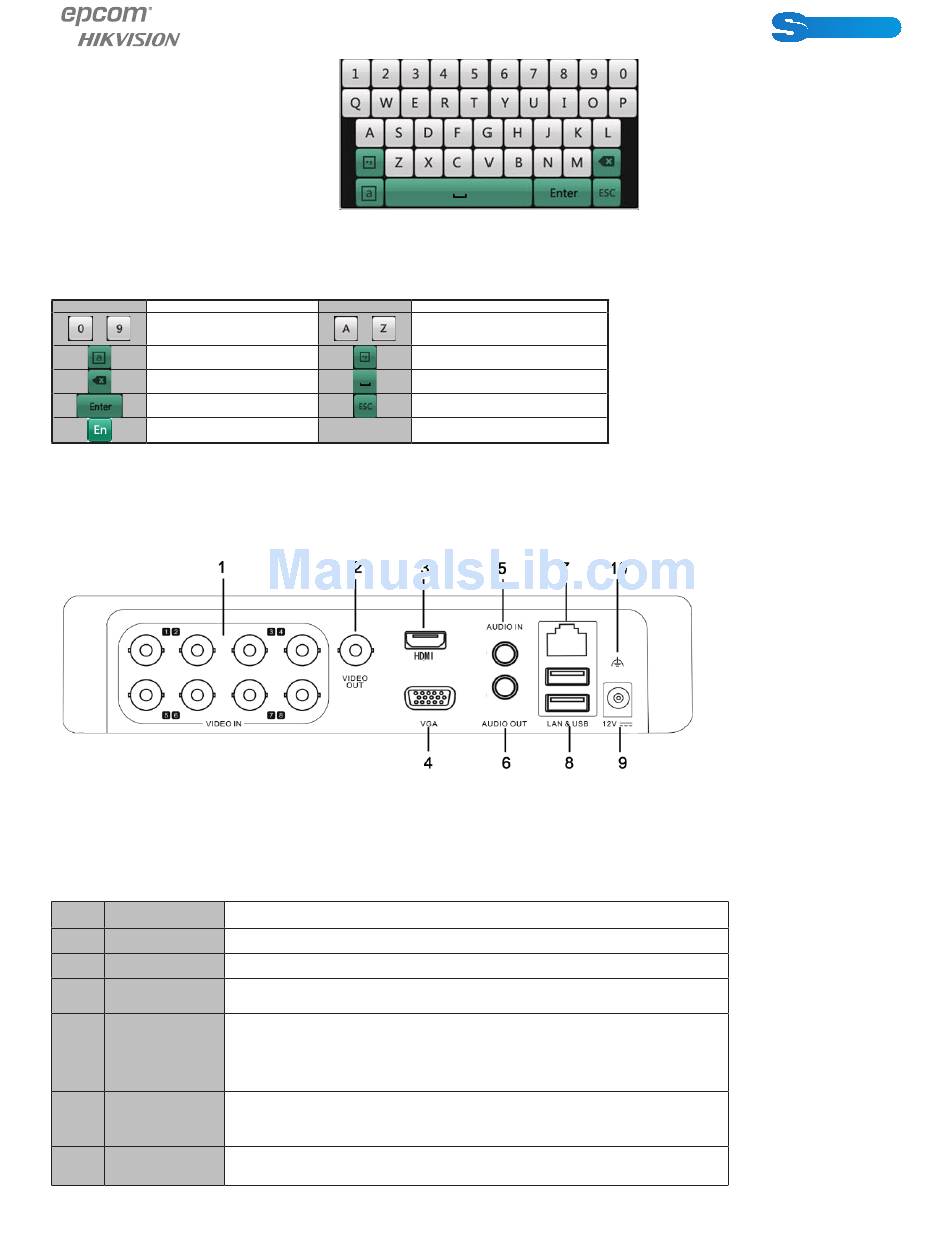

The rear panel of S08 is shown below:
No. Item
1
VIDEO IN
2
VIDEO OUT
3
HDMI
4
VGA
5
AUDIO IN
6
AUDIO OUT
12
Figure 1.3 Soft Keyboard
Table 1.4 Description of the Soft Keyboard Icons
Icon
...
Figure 1.4 Rear Panel of S08
Table 1.5 Description of Rear Panel
Description
BNC connector for analog video input.
BNC connector for video output.
HDMI video output.
DB15 connector for VGA output. Display local video output and
menu.
RCA connector for audio input.
RCA connector for audio output.
Description
English letter
Symbols
Space
Exit
