1.1 Front Panel

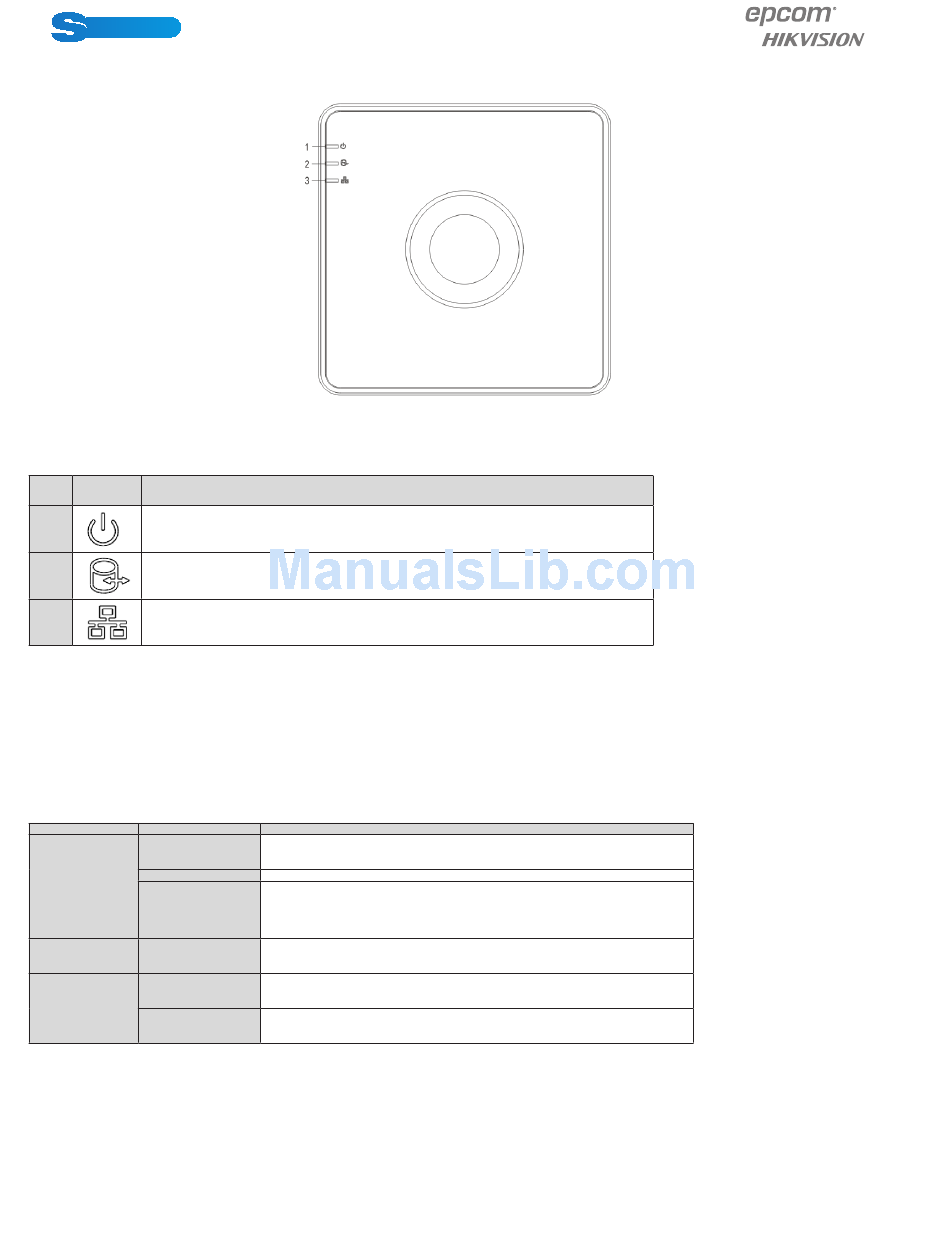

The front panel of S Series DVR is shown in Figure 1.1:
Icon Description
1
Indicator turns red when DVR is powered up.
Indicator lights in red when data is being read from or written
2
to HDD.
Indicator blinks blue when network connection is functioning
3
properly.

1.2 USB Mouse Operation

A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this device. To use a USB mouse:
1. Plug USB mouse into one of the USB interfaces on the rear panel of the device.
2. The mouse should automatically be detected. If in a rare case that the mouse is not detected, the possible reason may be
that the two devices are not compatible, please refer to the recommended device list from your provider.
The operation of the mouse:
Name Action
Single-Click
Double-Click
Left-Click
Click and Drag
Right-Click Single-Click
Scrolling up
Scroll-Wheel
Scrolling down

1.3 Input Method Description

11
Figure 1.1 Front Panel of S Series
Table 1.1 Description of Indicators
Table 1.3 Description of the Mouse Control
Description
Live view: Select channel and show the quick set menu.
Menu: Select and enter a menu.
Live view: Switch single-screen and multi-screen.
Tamper-proof, privacy mask and motion detection: Select target area.
Digital zoom-in: Drag and select target area.
Live view: Drag channel/time bar.
Live view: Show menu.
Menu: Exit current menu to upper level menu.
Live view: Previous screen.
Right-click Menu: Previous ite
Live view: Next screen.
Right-click Menu: Next item.
m.
