4. Enter Record Schedule settings interface.
Menu> Record> Schedule
1) Select Record.
2) Check the checkbox after Enable Schedule.
3) Click Edit.
4) Select Holiday from the Schedule dropdown list.
5) Select Motion or Normal from the Type dropdown list.
6) If you need all day recording, check the All Day checkbox. Otherwise leave it blank.
7) Set start/end time for holiday schedule.
Up to 8 periods can be configured for each day. And the time periods can't be overlapped each other.
In the time table of the channel, both holiday schedule and normal day schedule are displayed.
Repeat the above steps4)-7) to set Holiday schedule for other channel. If the holiday schedule can also be used to other channels,
click Copy and choose the channel you want to apply the settings.
42

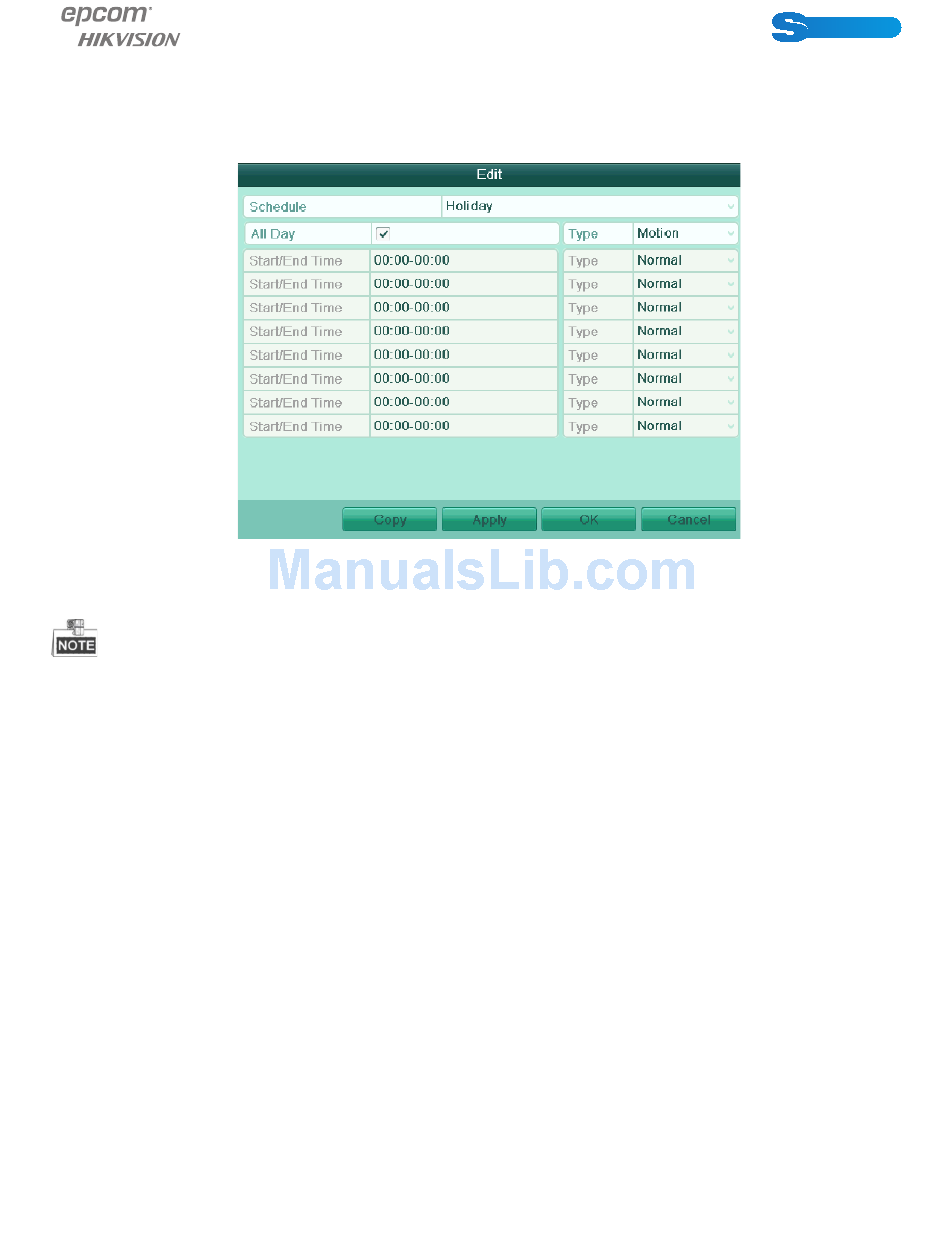

Figure 5.28 Edit Schedule- Holiday
