SERIES
SERIES
3.
Click the checkbox of Enable Privacy Mask to enable this feature.
4.
Use the mouse to draw a zone on the window. The zones will be marked with different frame colors.
Up to 4 privacy mask zones can be configured, and the size of each area can be adjusted.
5. The configured privacy mask zones on the window can be cleared by clicking the corresponding Clear Zone1-4 icons on
the right side of the window, or click Clear All to clear all zones.
6. You can click the Copy button to copy the privacy mask settings of the current camera to other cameras. Please refer to
step 7 of Chapter 11.1 Configuring OSD Settings.
7.
Click the Apply button to save the settings.

Configuring Video Parameters

Steps:
1.
Enter the Image Settings interface.
Menu > Camera > Image
2.
Select the camera to set image parameters.
3. Set the period of a day for configuring independent image parameters so as to satisfy different light conditions, e.g., dayli-
ght and night time. Two periods can be configured. When you have configured Period 1, the Period 2 is remained as the
Other Time.
109

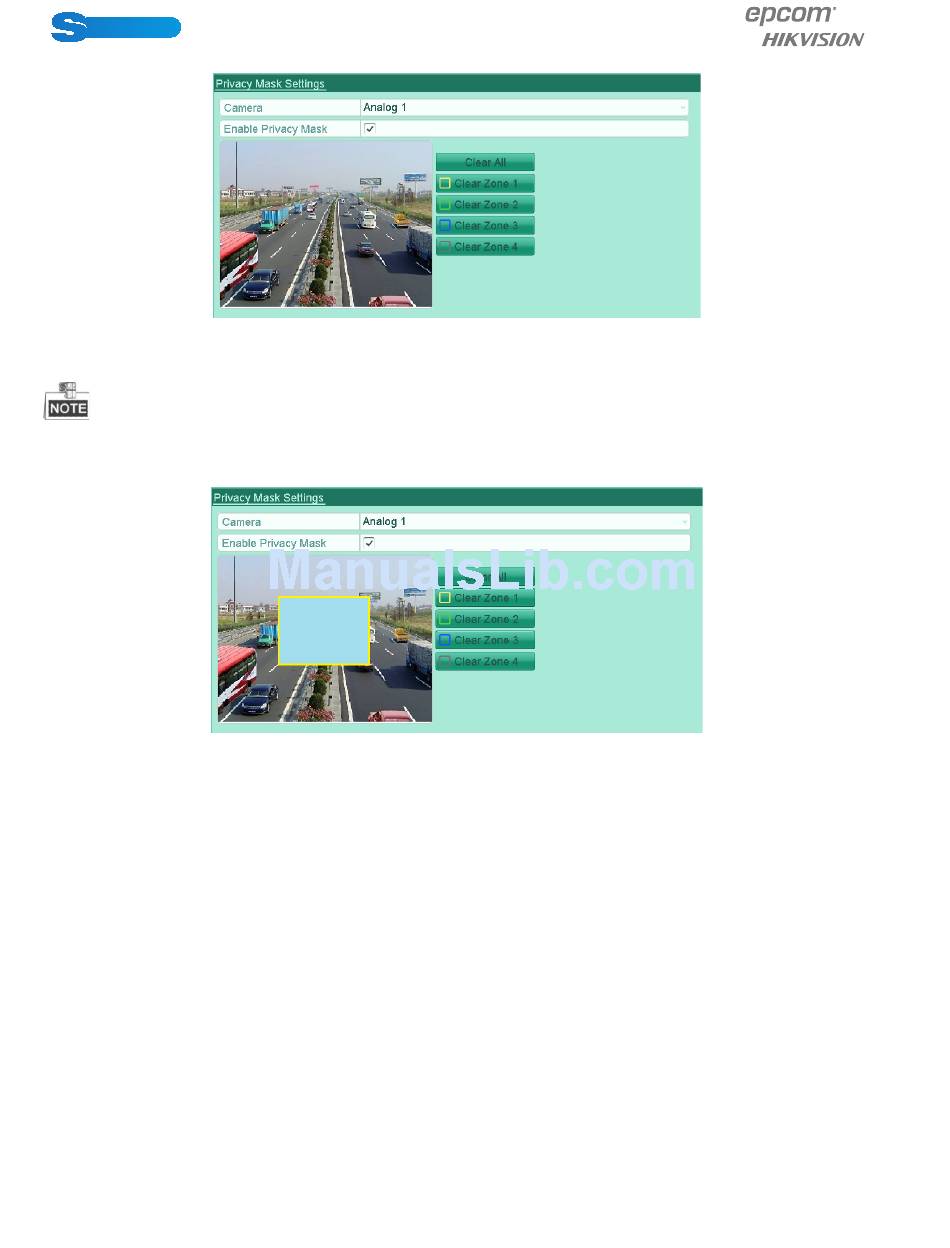

Figure 11.3 Privacy Mask Settings Interface
Figure 11.4 Set Privacy Mask Area
