d) Connecting for configuration

The Atlas250 routers have a DB-9 female connector on the rear panel referred to as "AUX" which
provides access to the device local console for configuration and monitoring purposes. In order to use
this, you must connect the "AUX" port to an asynchronous terminal (or to a PC with terminal
emulation).
COM
Computer

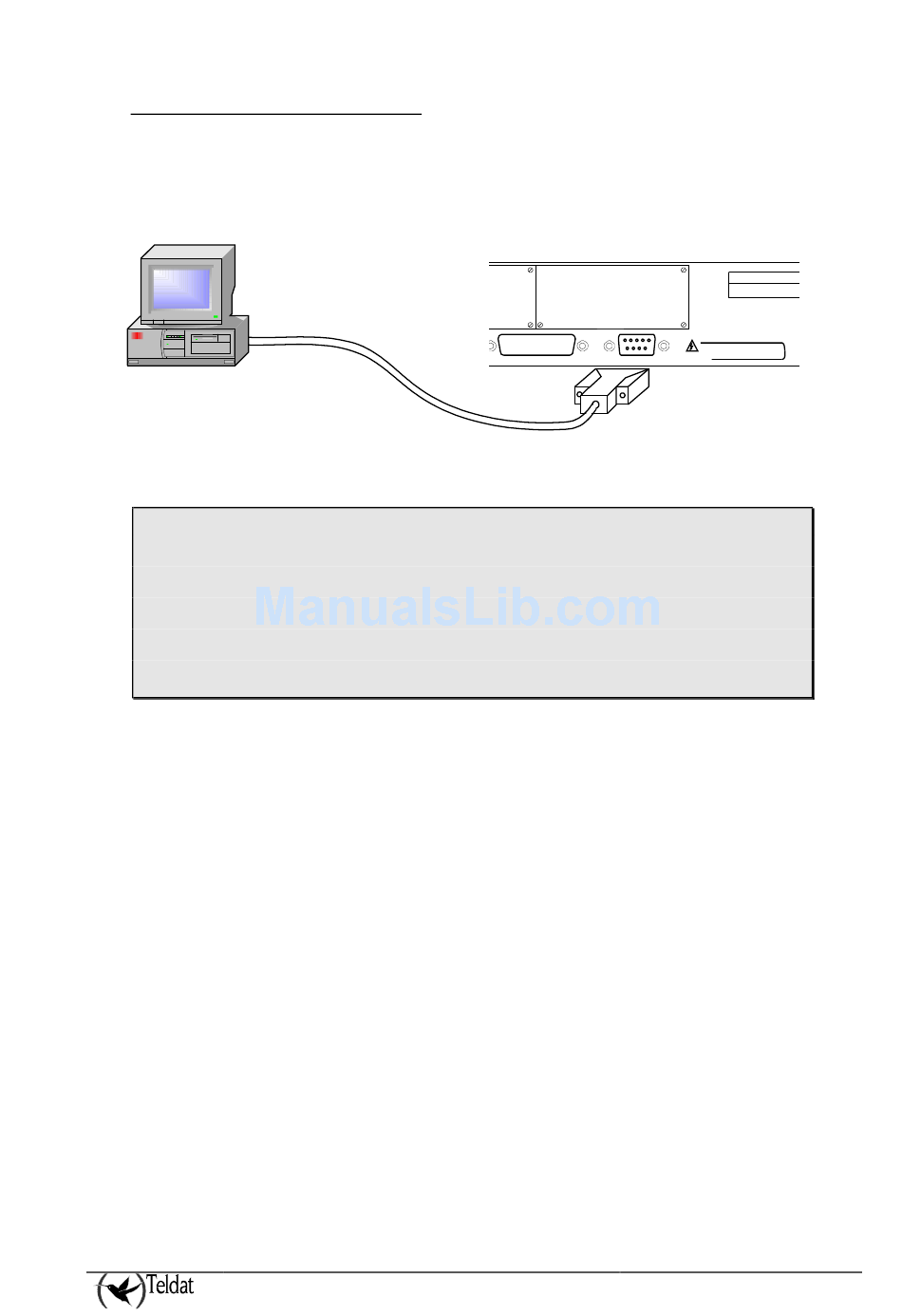

Figure 6. Connection for configuration/monitoring via console
Configuration for the terminal must be:
- Speed: 9600 bps
- Eight data bits
- No parity bit
- One stop bit
- No type of flow control
Also expressed as 9600 8N1. The connection to the configuration port can be carried out with DB -9
female-DB-9 male cable provided with the equipment. In cases where the asynchronous terminal has
DB25 connectors, you must use an additional DB9F-DB25F adapter (not included with the
equipment).
This assembly can also be used to update the device code. For further information, please consult
section 4.3 "Updating the software and the configurations".
