4. Appendices

The configuration is stored in a card in the device and is read each time the device boots. This

configuration is generally stored in the device Flash memory. However, in some models, you can use

an external device in order to store the configuration: a Smart Card, which simplifies the transfer of

configurations from one device to another. The information is compressed in order to take advantage

of the space available in the Smart Card. The choice of the active storing medium where you read the

configuration and where this is stored is carried out through console commands. These commands can

be found in more detail in the "Dm704-I Configuration and Monitoring" manual.

The Smart Card is a card with an integrated circuit permitting you to store and process information.

The available space is variable, however it can always be measured in Kilobytes. The external aspect

of the card is displayed in the following figure: on one side of the card you can see the integrated

circuit and on the other there is an arrow indicating which way to insert the card.

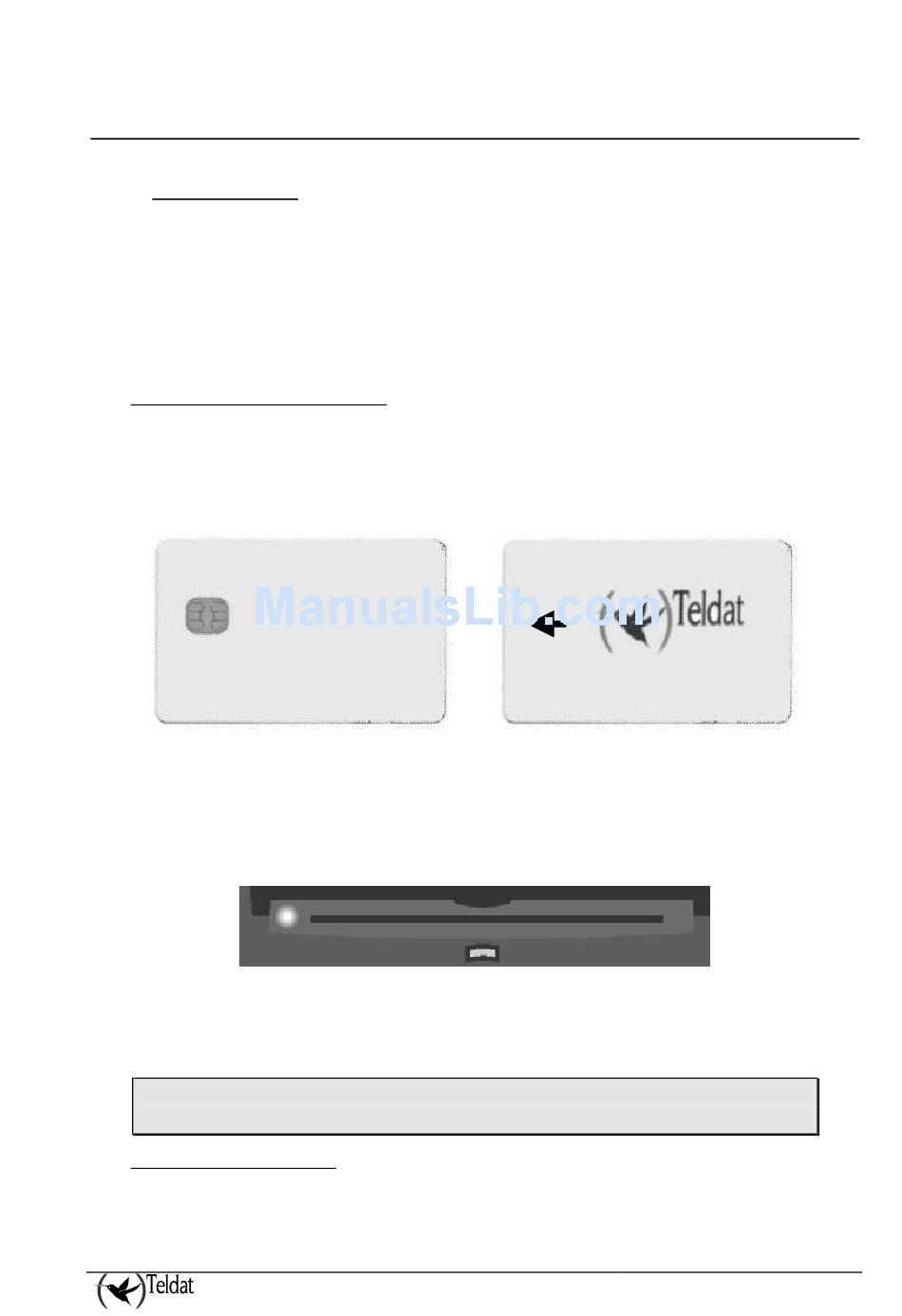

Figure 13. Aspect of a SmartCard

In those models that have this device, the Smart Card is inserted in the slot located on the front panel

of the equipment. The card should be placed in the slot so that the arrow is face up and the chip face

down. The card must be carefully inserted following the arrow until a small click is heard.

Figure 14. SmartCard insertion slot

Next to the insertion slot you can see a LED which indicates the card activity. This LED lights up in

green when it is reading or writing in the card and remains off when there is no activity.

• DO NOT extract or introduce the card when the activity LED is on. Contrariwise

data stored in the card may be lost.

The content of the Smart Card may be viewed from either the console or through FTP.
