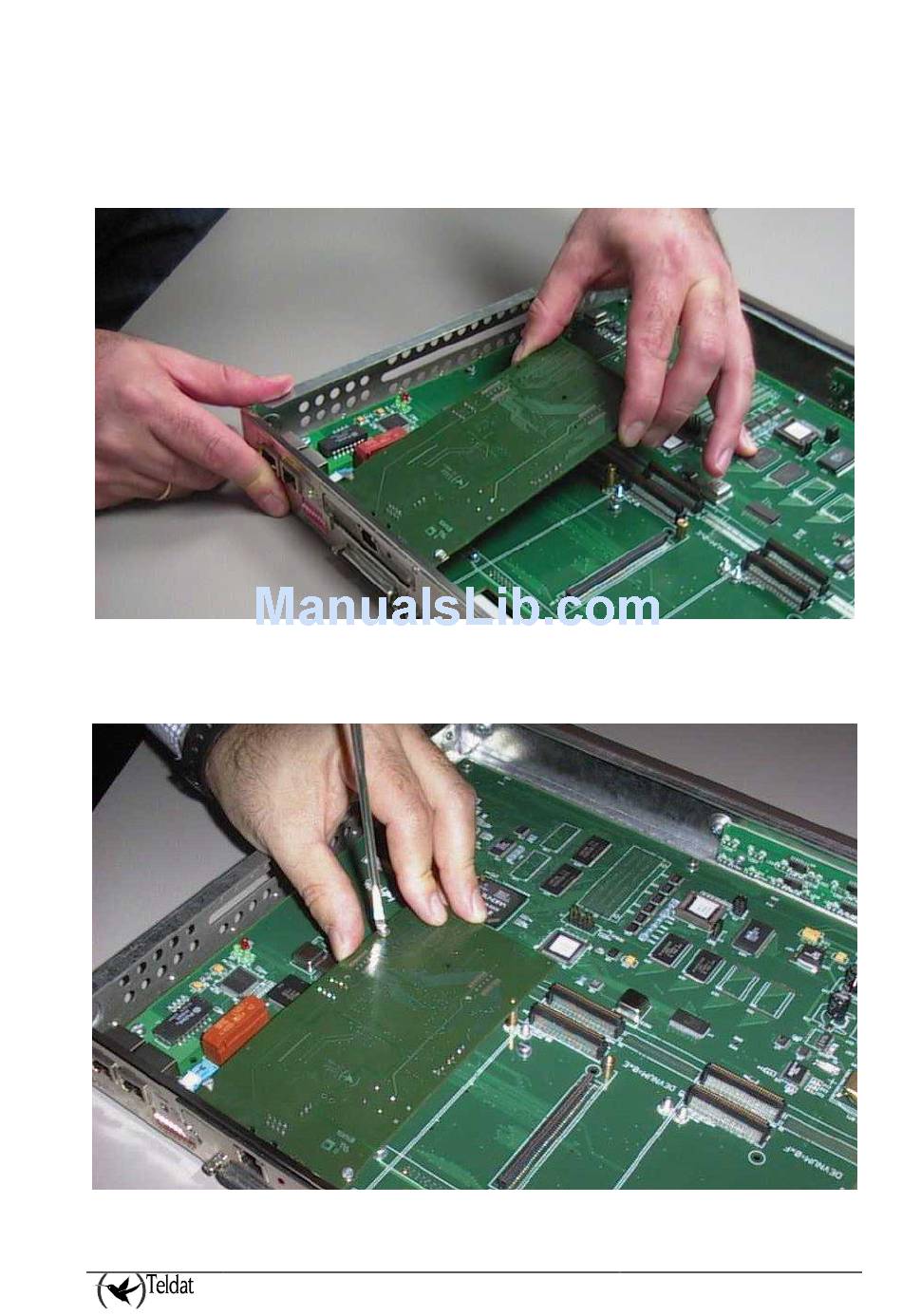

8. Place the PMC card in the slot so that this firstly adjusts to the space on the device rear panel
and subsequently to the two PMC connections. This operation must be carefully carried out
without forcing any piece or part of the device. Check that the board is clearly settled over the
PMC connectors.
9. Screw the PMC board to the posts. For this use two screws with their corresponding washers.
Firmly tighten the screws without damaging the board.
ATLAS 250 – Installation Manual
29
Doc.DM698-I
Ver.2.0
