2.3. Installation in a rack
In order to install the Atlas250 router in a 19-inch rack, you require two plastic strips as can be seen in
the figure. The strips and the associated screws are not included in the basic packet and need to be
acquired separately.
Both strips are attached to the device through four screws, two at each side, as shown in the figure.

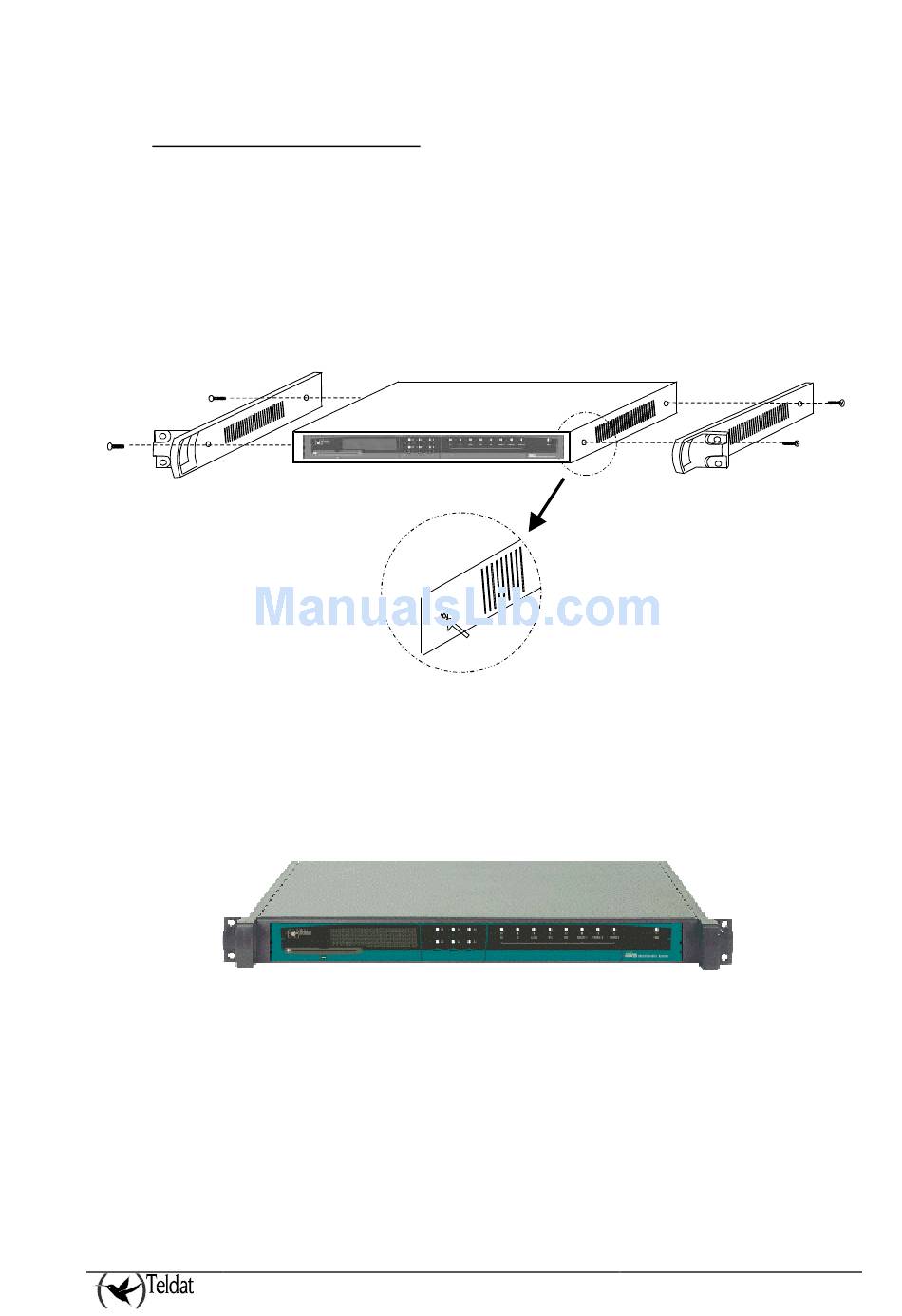

Figure 7. Attaching the strips
The spaces for the screws in the Atlas250 router leave the factory protected by covers. These can be
removed by using a sharp tool (such as a small flat screwdriver). We recommend removing the upper
cover in order to carry this out more easily.
Figure 8. Device with the strips
Doc.DM698-I
ATLAS 250 – Installation Manual
Ver.2.0
