Newtec has developed a proprietary encapsulation format called XPE (Extended
Performance Encapsulation), which is much more efficient than MPE.
Video, audio or IP
Figure 39 - Transport Stream Carried over DVB-S2
7.1.3.2 DVB-S2 Multi-Stream
A unique feature of DVB-S2 is the ability to carry different transport streams and/or
generic streams into separate baseband frames, on the same satellite carrier.
Each baseband frame is identified with an Input Stream Identifier. A sequence of
DVB-S2 baseband frames with the same ISI number is called a DVB-S2 stream. A
satellite carrier that transports several DVB-S2 streams is said to operate in Multi-
stream mode.

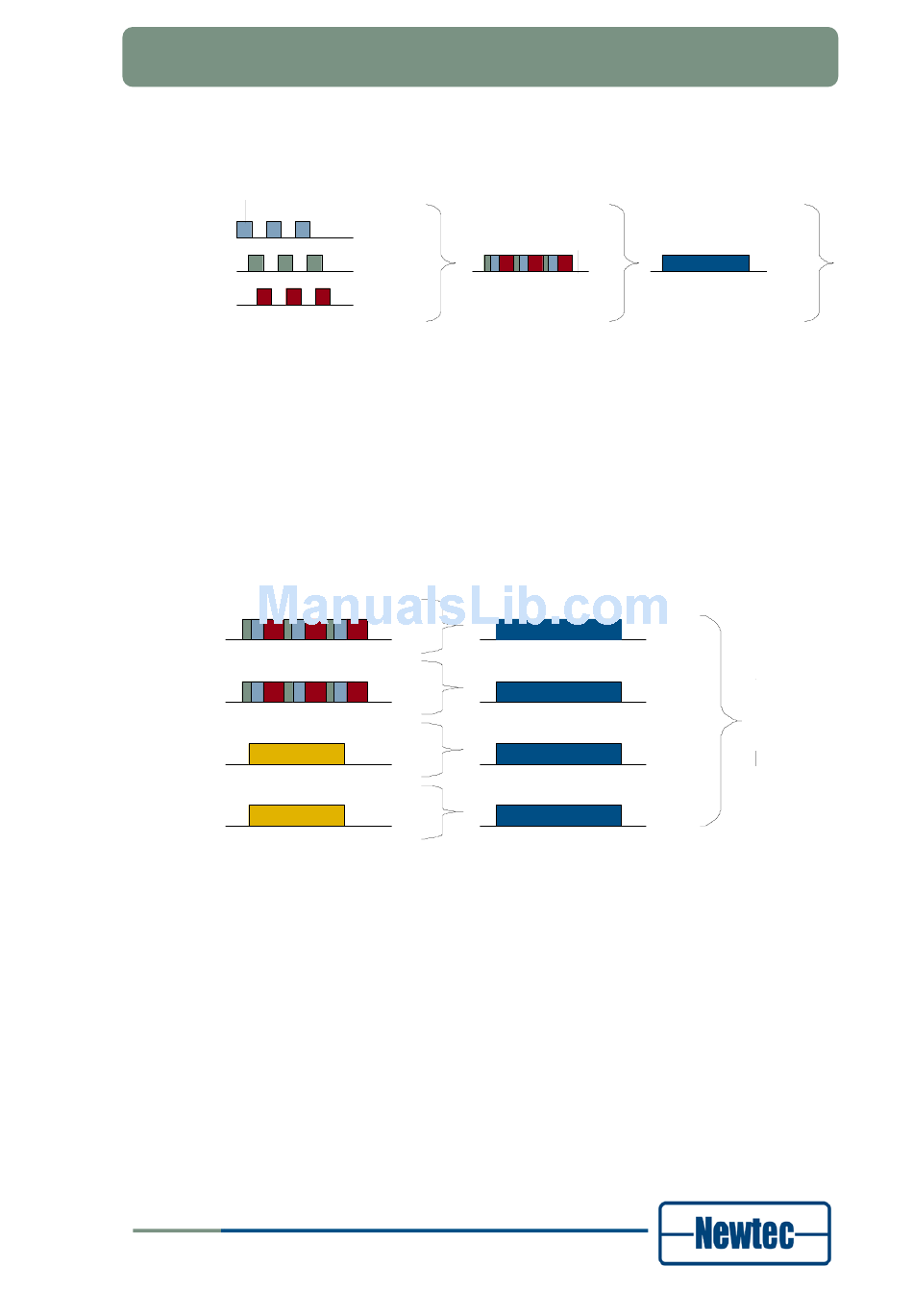

Figure 40 - DVB-S2 - Multi-Stream
7.1.3.3 DVB-S2 CCM, VCM and ACM
In DVB-S2 each baseband frame can be modulated with different error correction
and modulation parameters (in short, ModCod, for example QPSK 4/5). A DVB-S2
modulator is capable of detecting these parameters on the fly, without loosing
synchronization from one frame to the next.
