Physical Description

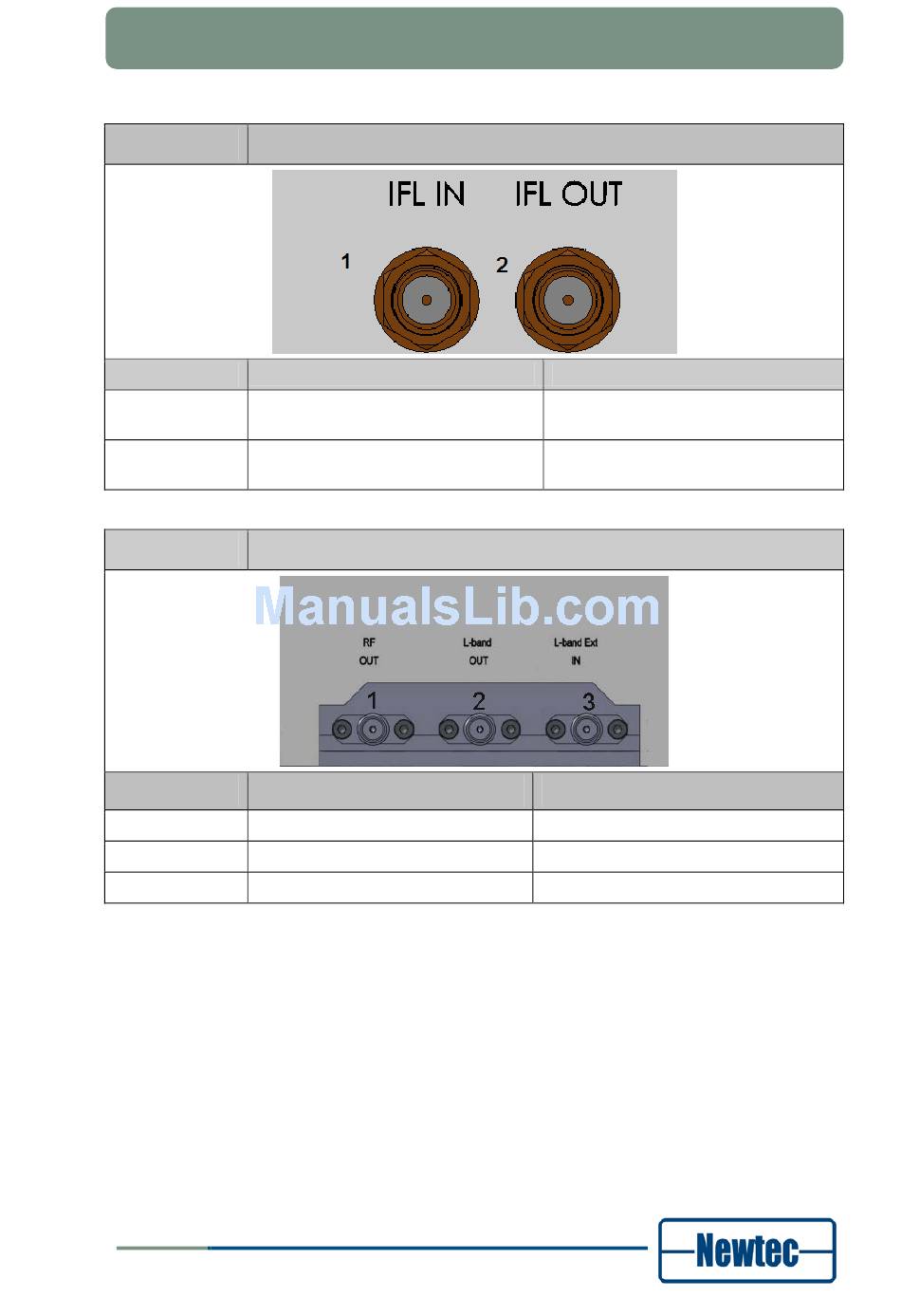

Connector Back Panel 05 / Description
Connector Technical Specifications
1. IFL (IN) SMA (Female) 50 Ohm
2. IFL (OUT) SMA (Female) 50 Ohm
Back Panel 06/Description
Connector Technical Specifications
1. RF OUT SMA (Female) 50 Ohm
2. L-band OUT SMA (Female) 50 Ohm
3. L-band Ext IN SMA (Female) 50 Ohm
version 3.2
31
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
SHAPING THE FUTURE SATELLITE OF COMMUNICATIONS
Signalling Type
L-band (Input) to be looped to Mod
OUT of BP01
L-band + 10MHz,
Signalling Type
Lower Ku-band
L-band
L-band
