Graphical User Interface
(GUI)
6.4.7.2
Importing a Configuration
The possibility exists to import all 48 device configurations as a ".cfg" file from a
local computer.
Proceed as follows to import a configuration set:
1. Click the Configs Tab;
2. Click the Import button;
3. Browse to the location of the stored ".cfg" file;
4. Select the ".cfg" file and click Open. The stored configurations are loaded into
the Newtec device.
5. The user has two options:
- The user can keep the imported configurations. In this case, the user must
save the current imported configuration in bootconfiguration;
- The user can decide to delete the imported configurations. In this case the
user must restart the device. The device will start up using the same
bootconfiguration as the previous start up.
6.4.8

Create a Diagnostics Report

Perform the following steps to create a diagnostics report.
 Click Misc. tab;
 Click Diag. Report

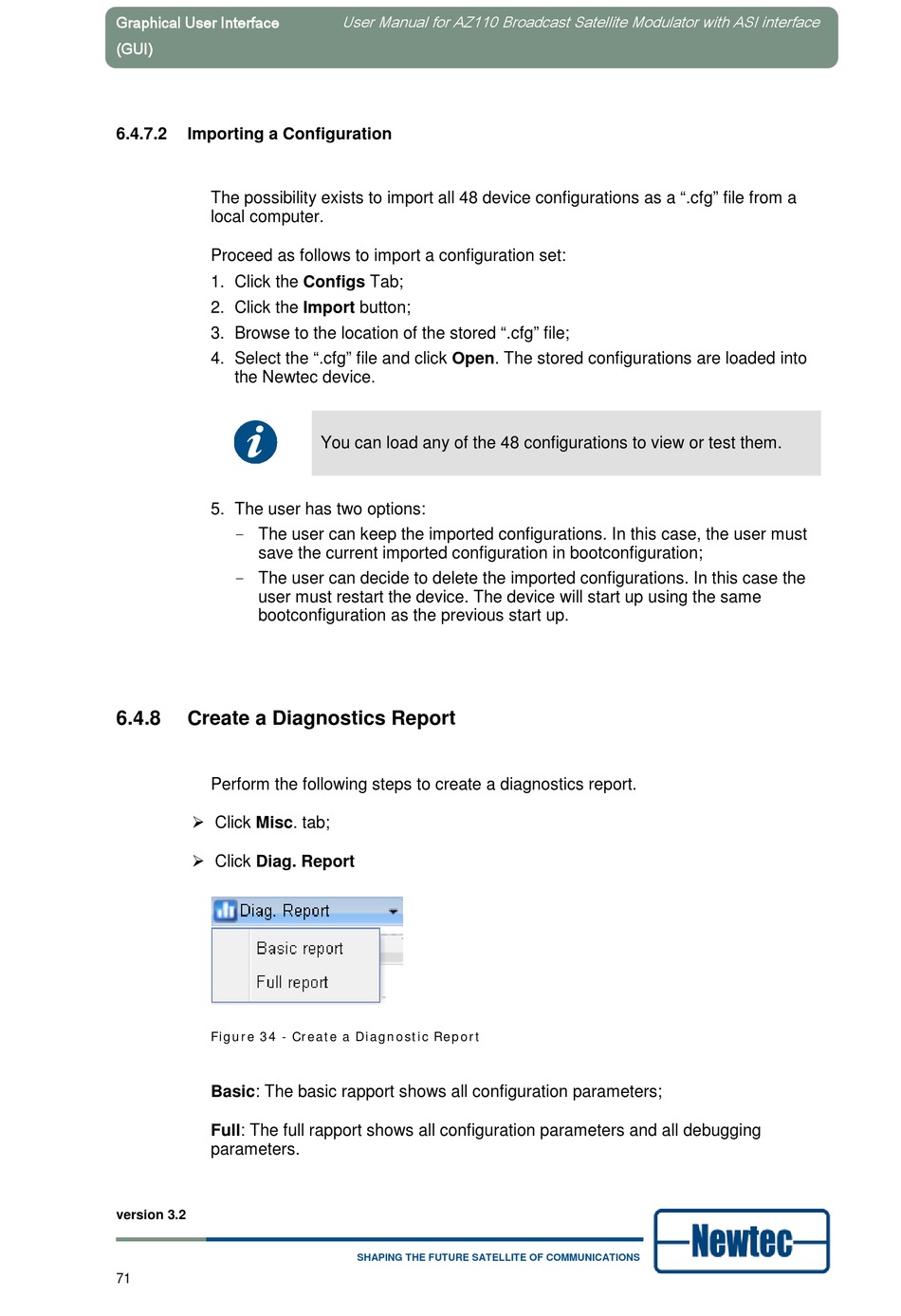

Figure 34 - Create a Diagnostic Report
Basic: The basic rapport shows all configuration parameters;
Full: The full rapport shows all configuration parameters and all debugging
parameters.
version 3.2
71
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
You can load any of the 48 configurations to view or test them.
