Leds - Newtec AZ110 User Manual

How to Manage
5.2.3

LEDs

The LEDs provide a basic status of the device.

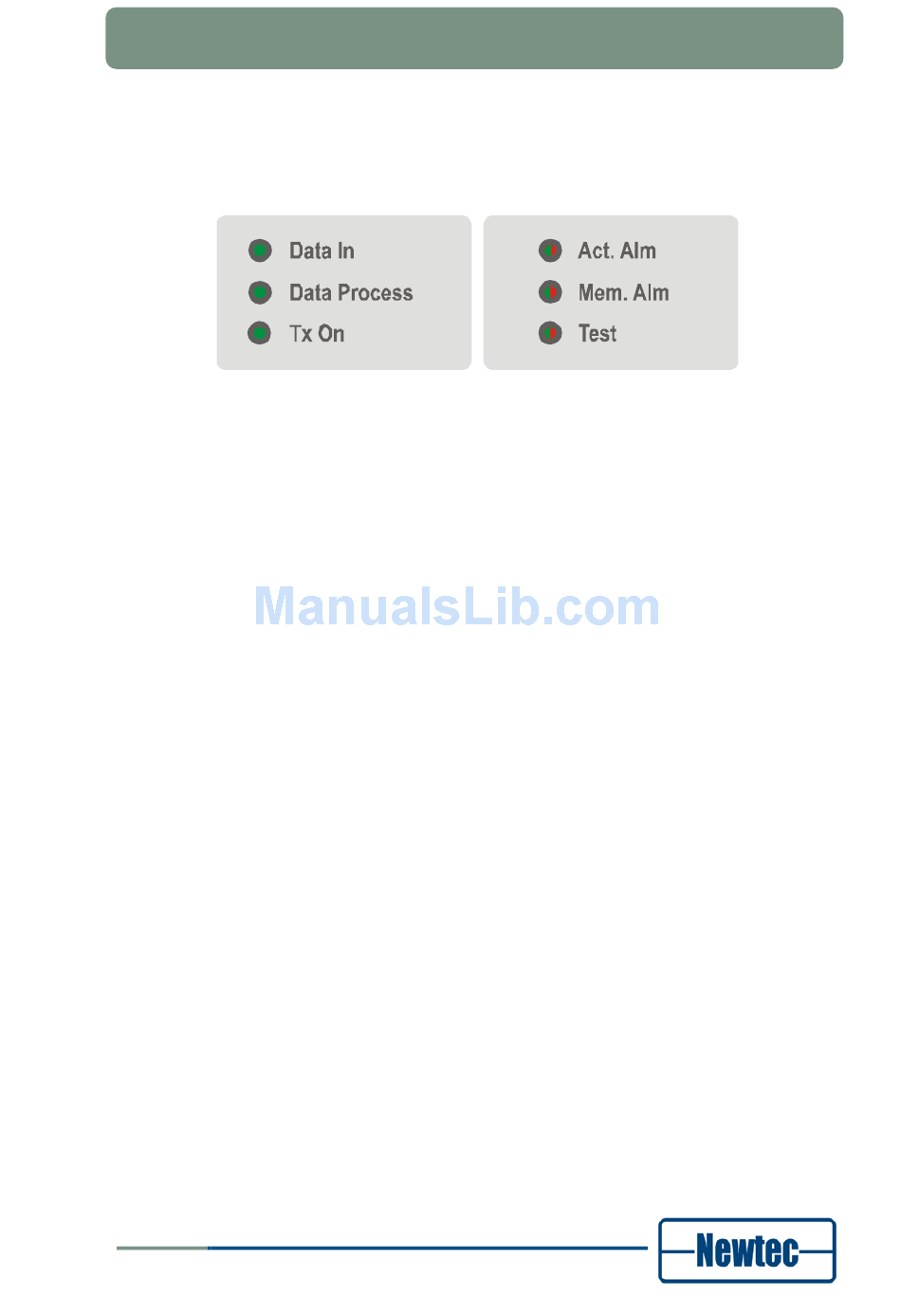

Figure 14- Front Panel LEDs
Data In:
Data Process:
Tx on:
Act. Alm:
Mem. Alm:
Test:
version 3.2
41
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
green At least 1 data input is active and valid
green Data processed prior to transmission
(rate adaptation, etc.)
green Transmit on
red Actual alarm(s) present
red Memorised alarm(s) present
orange On if the modulator is in test mode
