6.3.4.3 Macro Tab

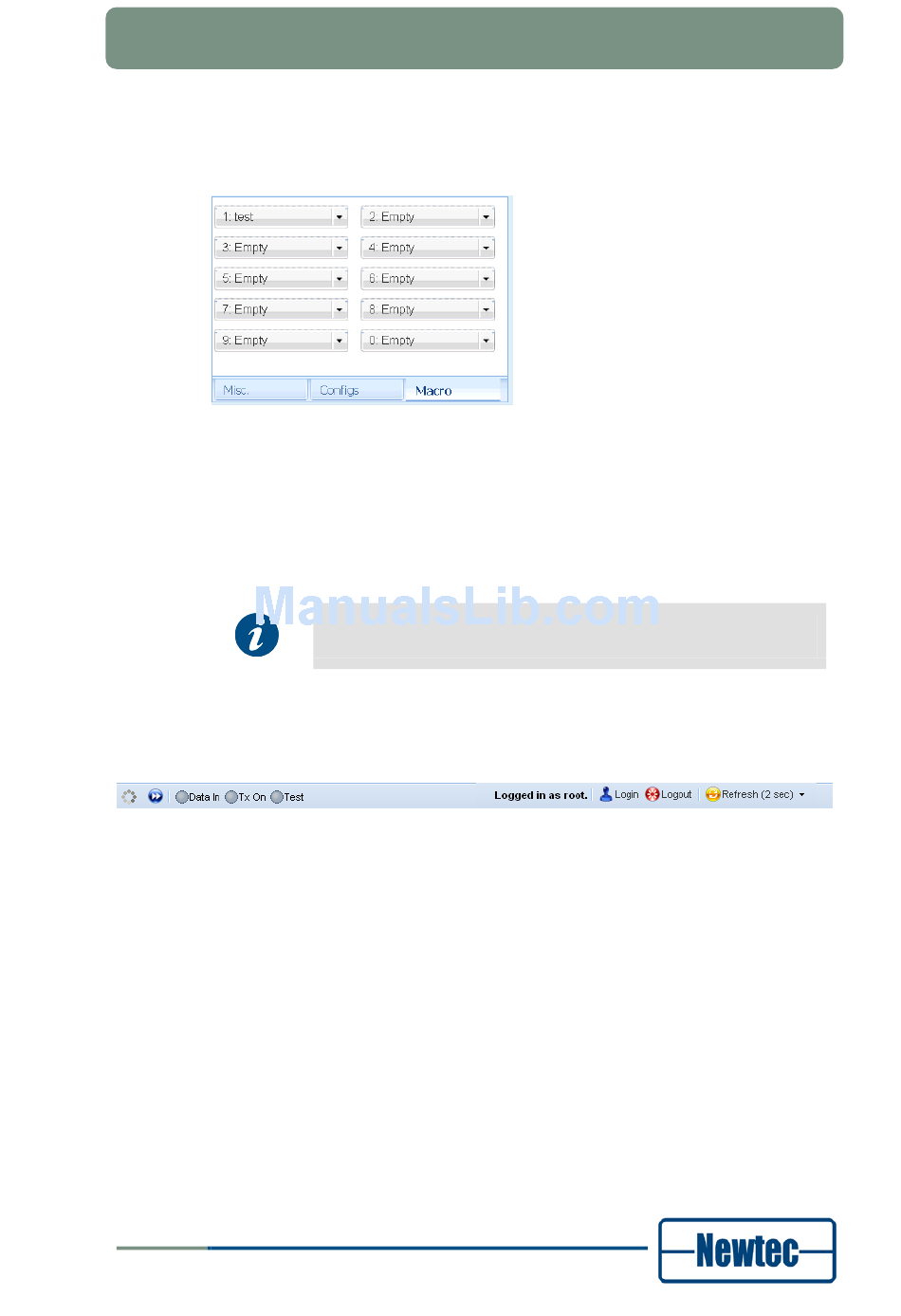

Figure 27 - Custom Function Controls Tab
Use the buttons on the Macro tab to store sets of RMCP-commands. Manually
insert and assign up to twenty RMCP-commands separated by a ";" to one button
or change stored RMCP-command sets via the Edit option.
Click the arrow next to the button to open the Edit option.
6.3.5

Status Bar

The status bar informs on:
• Ongoing interaction with the device via the status field on the left;
• The current user profile.
Log in to or log out from the GUI of the device via the buttons in the status bar.
When you click the:
• Logout button, the current user is logged out.
• Login button, to open the User identification dialog box.
• Refresh button to refresh the status of the device.
Click the arrow to configure the time interval of refresing the status of the
device.
version 3.2
60
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
An overview of all allowed RMCP-commands can be found in the
reference manual of your device.
