Graphical User Interface
(GUI)
The alarm window contains the following information and controls (refer to Figure
23):
Area No.
1
2
3
4
Table 7 – Alarm window areas
6.3.4

Function Control Window

The function control window contains three tabs:
• Miscellaneous (Misc.);
• Configs;
• Macro.

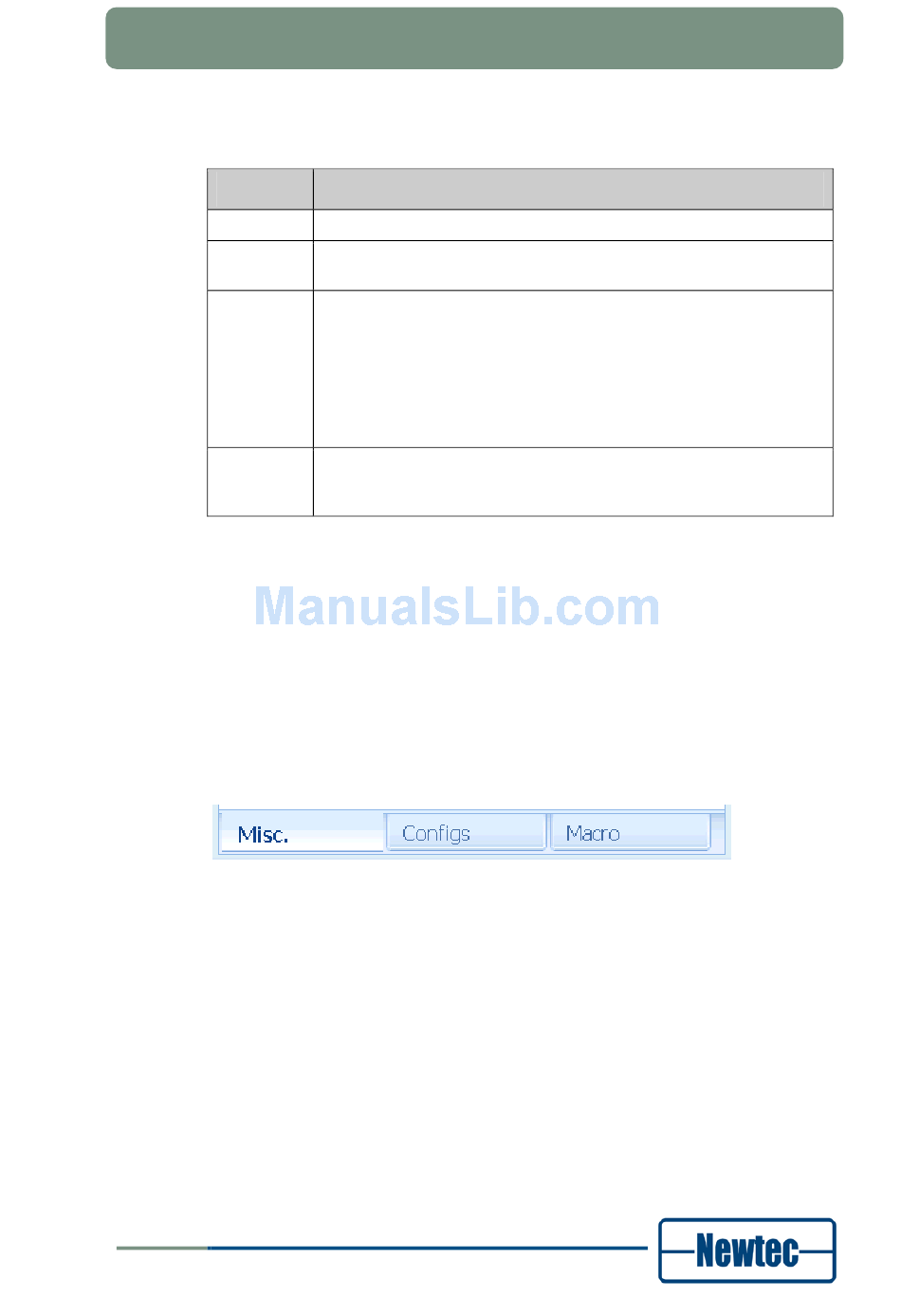

Figure 24 –Tabs Function Control Window
version 3.2
56
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
Description
This area displays the alarm name.
This area displays the number of times an alarm was generated
since it was last cleared.
This area contains drop-down list boxes in which you can select a
filter to apply.
You can filter on the alarm activity:
• Active & Memorized alarms;
• Masked & Forced alarms;
• All Alarms;
Clear the number of times an alarm was generated since it was last
cleared. Active alarms can be cleared but the counter will still
show one.
SHAPING THE FUTURE SATELLITE OF COMMUNICATIONS
