Physical Description
Serial Monitoring and Control via RS485/RS232
5
MON & CTRL
9

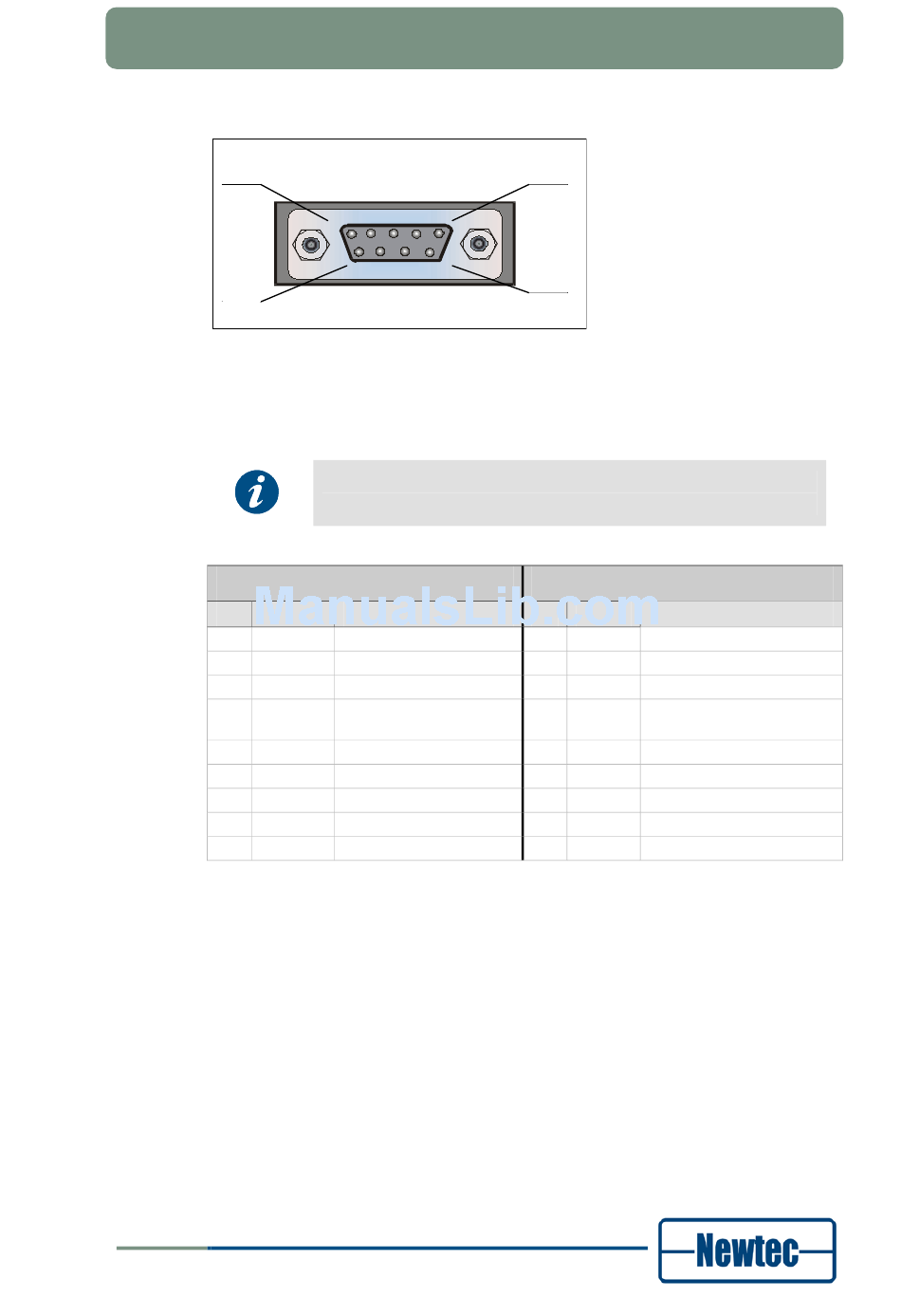

Figure 8 - Serial Monitoring and Control Connector
The modulator contains the hardware for the RS485 and RS232 interface.
Pin Name
1 GND
2
3 Tx-A
4 Rx-A
5 GND
6 Rx-B
7
8
9 Tx-B
Table 1 - Pin Configuration
version 3.2
25
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
Select the type of serial interface via the front panel or via the
GUI, but not via the serial port itself.
RS485
Function
Shield ground
Not connected
Send Data A (input)
Receive Data A (output)
Signal ground
Receive Data B (output)
Not connected
Not connected
Send Data B (input)
SHAPING THE FUTURE SATELLITE OF COMMUNICATIONS
1
6
RS232
Pin Name Function
1 GND Shield ground
2 Rx-D Receive Data (input)
3 Tx-D Transmit Data (output)
4 DTR Data Terminal Ready
(output)
5 GND Signal ground
6 Not connected
7 RTS Request to send (output)
8 CTS Clear to send (input)
9 Not connected
