Sub Back Panel Descriptions

In this section the optional back panels are listed. Depending on the options
ordered a combination of back panels is used.
The different combinations per ordering option are described in the following
section 3.2.3.

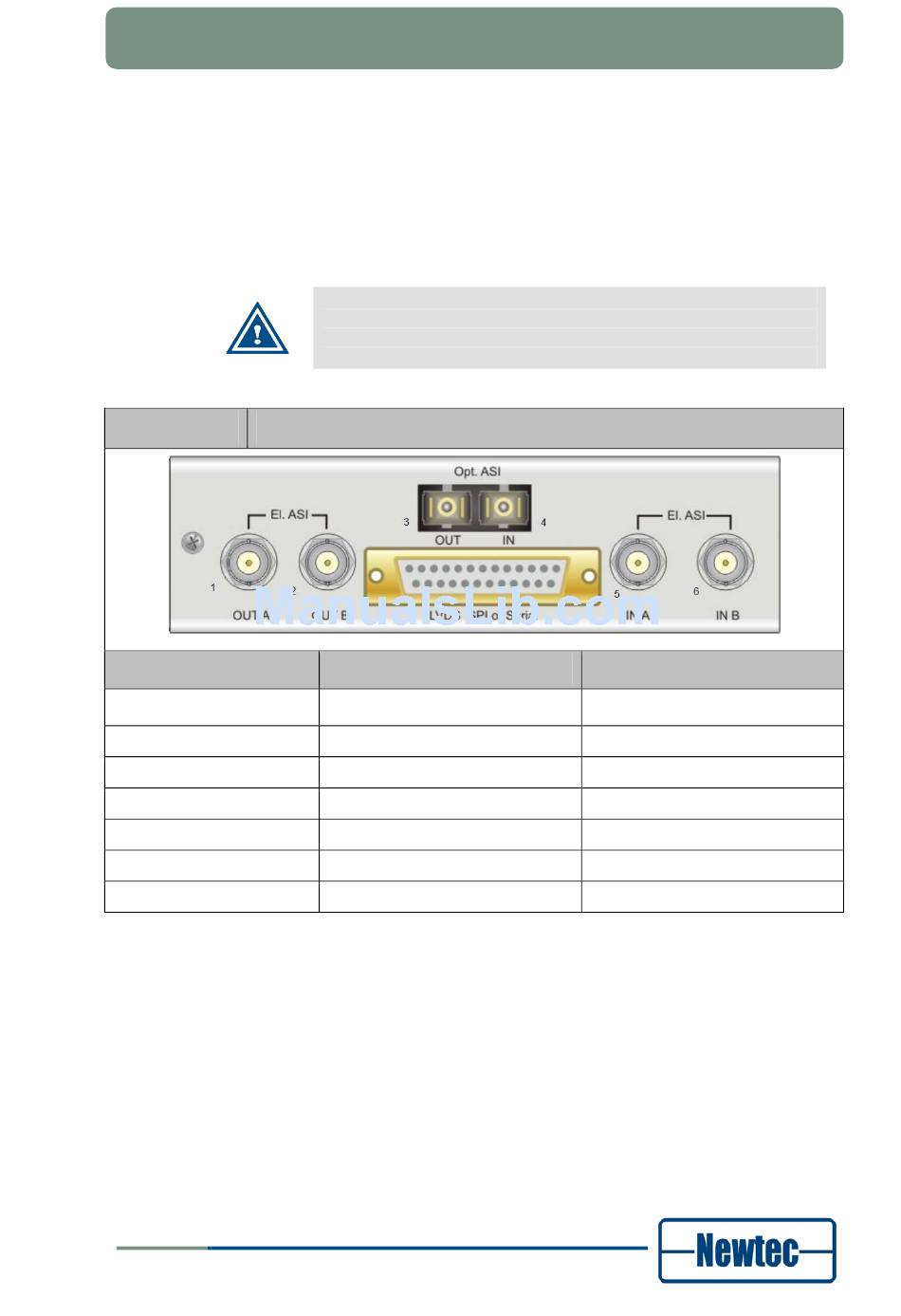

Back Panel 01 / Description
Connector
1. El. ASI OUT A
2. El ASI OUT B
3. Opt ASI OUT
4. Opt ASI IN
5. El. ASI IN A
6. El. ASI IN B
7. LVDS SPI or Serial
version 3.2
28
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
The connector REF OUT is used for option GR01 or GR02.
When one of these options is selected the REF OUT connector is
available on the first sub back panel that enables this option.
In all other sub back panels this option is not used.
Technical Specifcations
BNC (Female) 50 Ohm
BNC (Female) 50 Ohm
Optical connector
Optical connector
BNC (Female) 50 Ohm
BNC (Female) 50 Ohm
Sub-D (Female) 25 Pins
SHAPING THE FUTURE SATELLITE OF COMMUNICATIONS
Signalling Type
Output signal
Output signal
ASI
ASI
ASI
ASI
