Physical Description
Back Panel 04 / Description

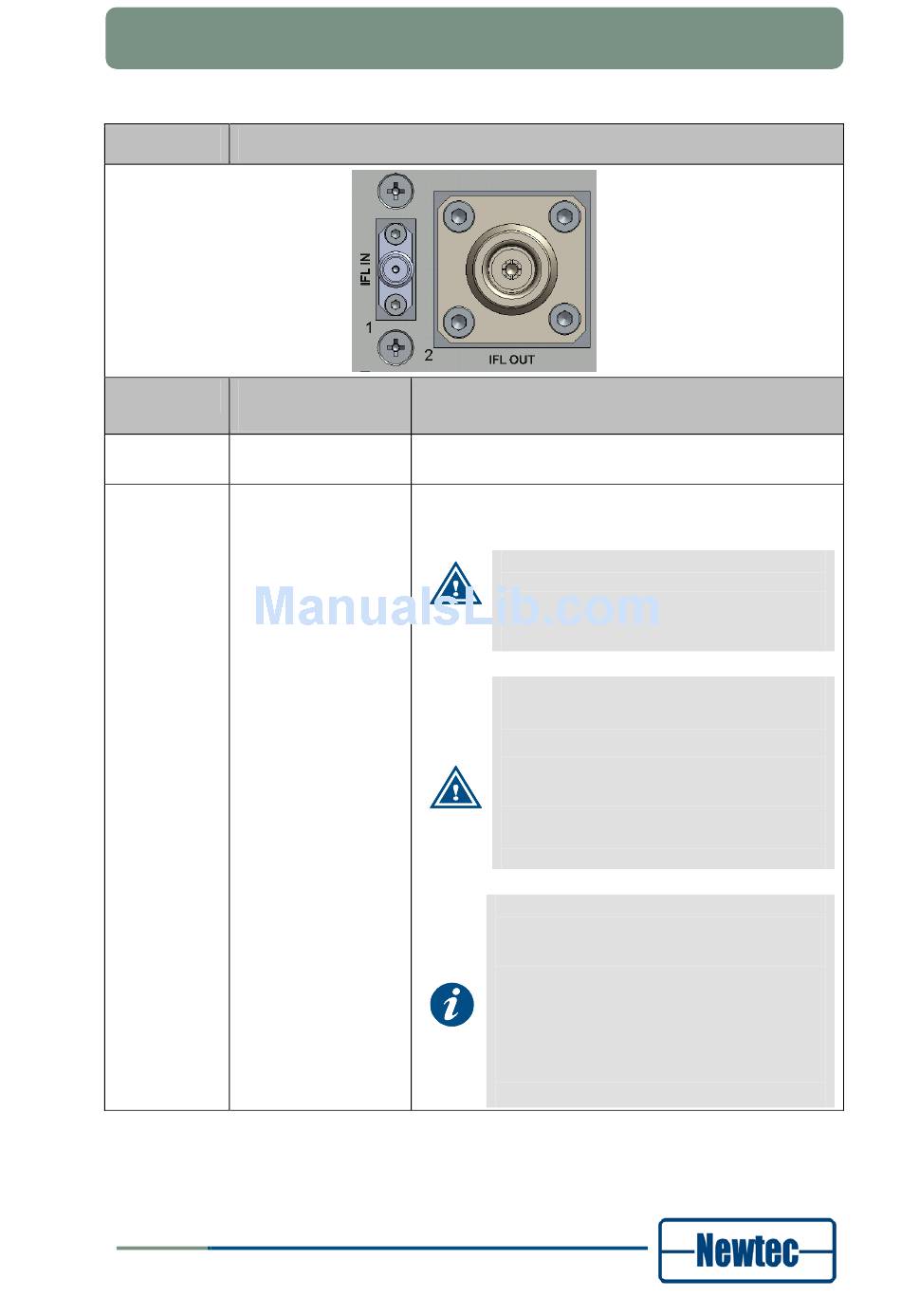

Connector Technical
Specifications
1. IFIN SMA (Female) 50
Ohm
2. IFL OUT N-Connector
(Female) 50 Ohm
version 3.2
30
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
Signalling Type
L-band, is looped to Mod out of BP01
L-band + 10MHz +DC (12V, 24V, 48V)
Switch of the power of the device before
connecting the coax cable.
This to reduce the risk of personal injury
from electric shock or damage to the
device.
The following DC voltages can be selected:
• 12V
• 24V
• 48V
The maximum current on this connector is
3A.
Use a coax cable rated for the voltage and
current marked on the device.
The following parameters must be enabled
in the device:
• ODU communication control
• Outdoor power supply
Set the parameters on the following
location. (Setting parameters refer to
chapter 5.)
AZ >> Unit >> Control >> Outdoor Unit
