Graphical User Interface
(GUI)

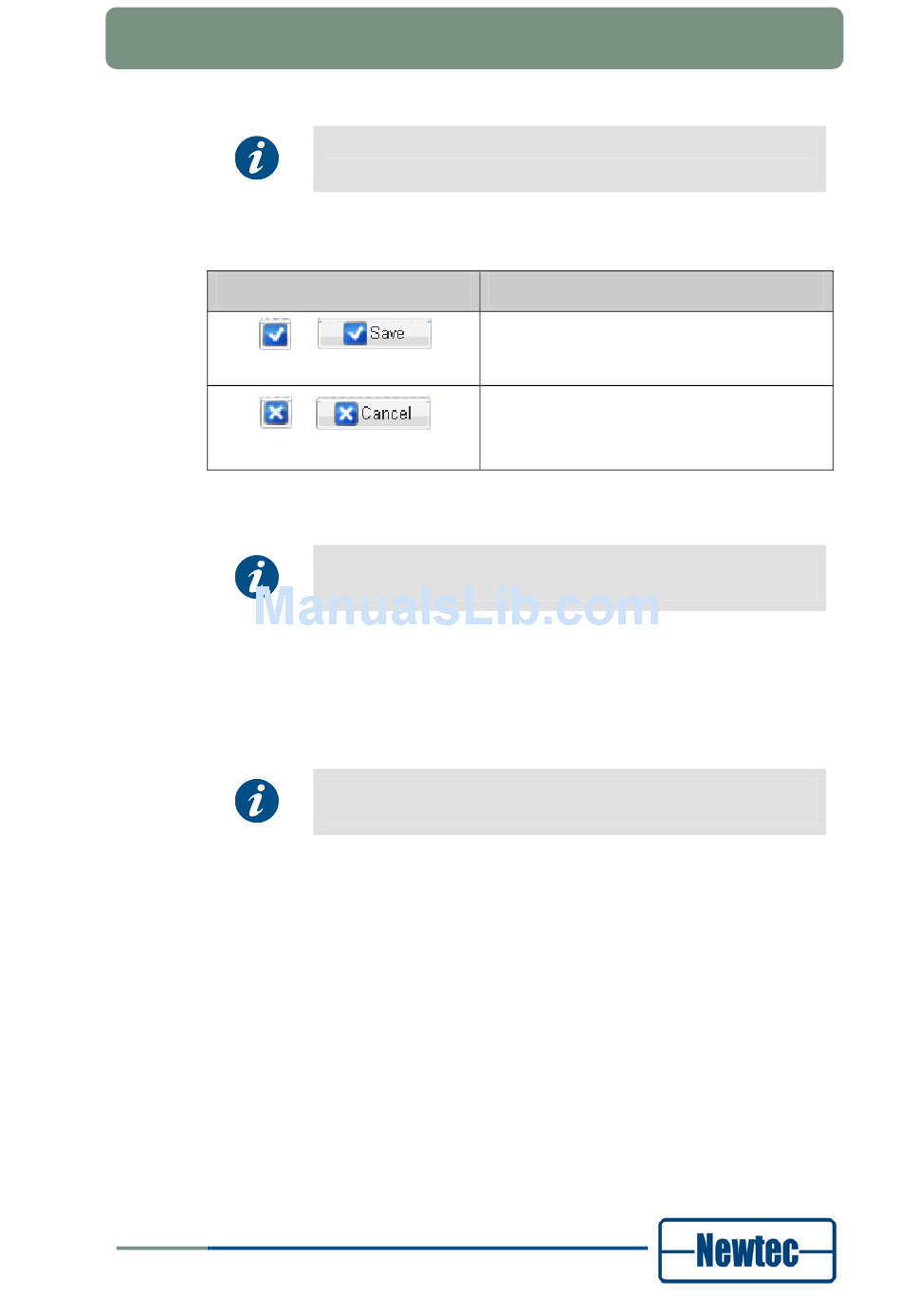

Depending on the parameter interface type you must confirm or reject the selected
or inserted value for the parameter by clicking one of the following buttons:
Button
Table 10 – Parameter Save and Cancel Buttons
6.4.2.2
Applicable Parameters
The number of parameters you see in the tree view and the detailed view of a
block depends on your user profile and the current device configuration.
6.4.2.3
Invalid Values
The GUI does not allow the implementation of invalid values. While typing a value
this value is validated. The user interface has several features that help to insert
valid parameters:
• Place the mouse cursor above a field to be adjusted, the acceptable range is
displayed in a tooltip;
• When typing an invalid value for a parameter, the edges of the parameter field
turn red and a tooltip displays the reason why the value is invalid ;
• It is not possible to save values outside the defined ranges for the device.
version 3.2
63
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
In the dialog box type table you can move table columns to
another position in the table.
or
or
When a parameter value changes in the GUI, it briefly gets a
yellow background.
Parameter changes via the front panel or via the management
interface are also visible in the GUI .
SHAPING THE FUTURE SATELLITE OF COMMUNICATIONS
Function
Save the parameter value.
Do not save the parameter value.
