Graphical User Interface
(GUI)

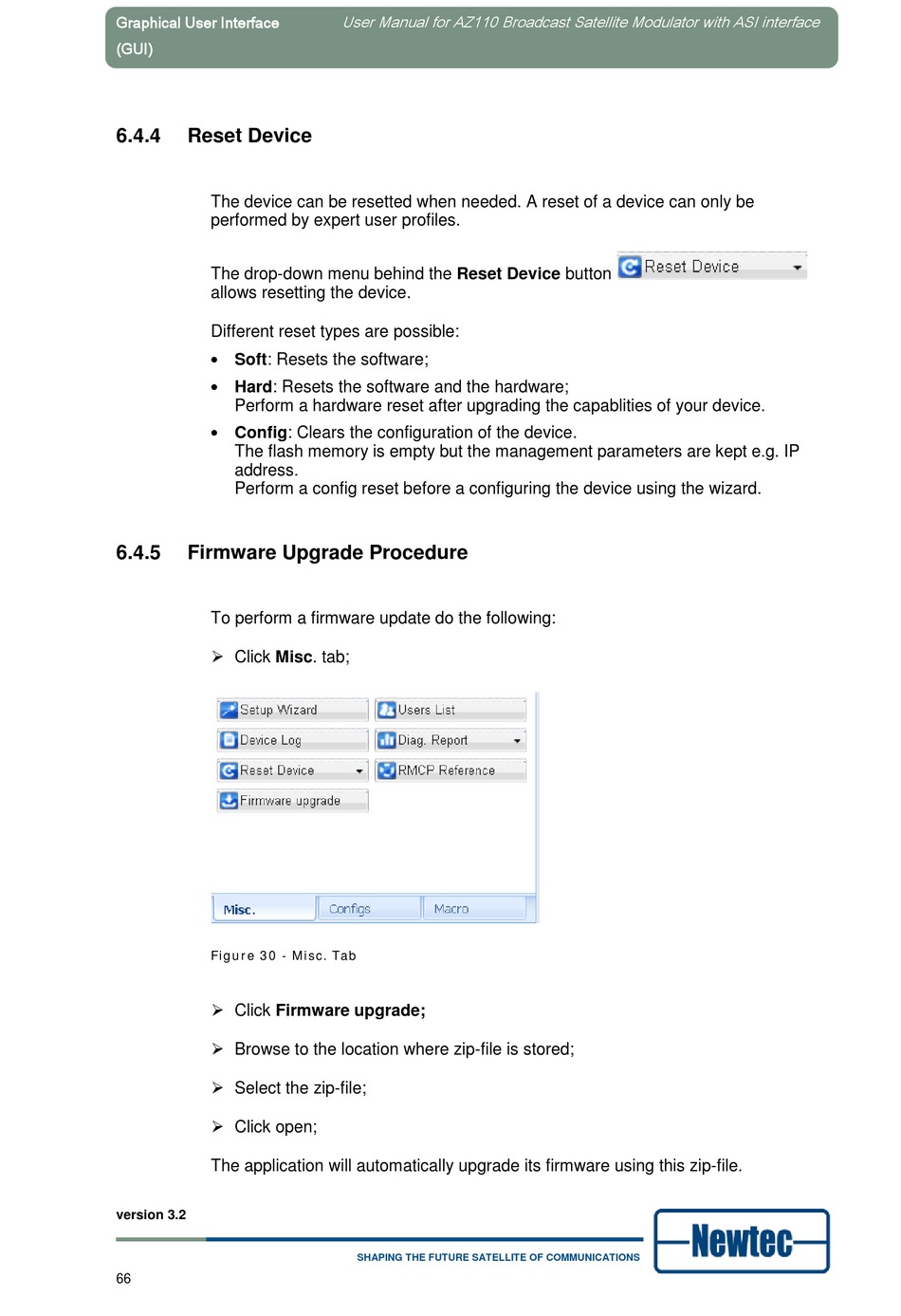

6.4.4

Reset Device

The device can be resetted when needed. A reset of a device can only be
performed by expert user profiles.
The drop-down menu behind the Reset Device button
allows resetting the device.
Different reset types are possible:
• Soft: Resets the software;
• Hard: Resets the software and the hardware;
Perform a hardware reset after upgrading the capablities of your device.
• Config: Clears the configuration of the device.
The flash memory is empty but the management parameters are kept e.g. IP
address.
Perform a config reset before a configuring the device using the wizard.
6.4.5

Firmware Upgrade Procedure

To perform a firmware update do the following:
 Click Misc. tab;
Figure 30 - Misc. Tab
 Click Firmware upgrade;
 Browse to the location where zip-file is stored;
 Select the zip-file;
 Click open;
The application will automatically upgrade its firmware using this zip-file.
