3 How to Install

3.7.3 Motor Thermal Protection

The electronic thermal relay in the adjustable frequency drive has received UL-approval for single motor protection, when par. 1-90
Protection ETR Trip
is set for
For thermal motor protection, it is also possible to use the MCB 112 PTC thermistor card option. This card provides an ATEX certificate to protect motors
in explosion hazard areas, Zone 1/21 and Zone 2/22. Please refer to the
3

3.7.4 How to Connect a PC to the Adjustable Frequency Drive

To control the adjustable frequency drive from a PC, install the MCT 10
Set-up Software.
The PC is connected via a standard (host/device) USB cable or via the RS
485 interface as shown in the section
Guide.
NOTE!
The USB connection is galvanically isolated from the
supply voltage (PELV) and other high-voltage termi-
nals. The USB connection is connected to protection
ground on the adjustable frequency drive. Use only
isolated laptop for PC connection to the USB connector
on the adjustable frequency drive.

3.7.5 The FC 300 PC software

Data storage in PC via MCT 10 Set-up Software:
1. Connect a PC to the unit via the USB com port.
2. Open MCT 10 Set-up Software
3. Select the USB port in the "network" section.
4. Choose "Copy".
5. Select the "project" section.
6. Choose "Paste".
7. Choose "Save as"
All parameters are now stored.
3-30
Motor Current
and par. 1-24 is set to the rated motor current (see motor nameplate).
Bus Connection
in the Programming
MG.33.AG.22 - VLT
VLT ® AutomationDrive FC 300 Instruction
Design Guide
for further information.

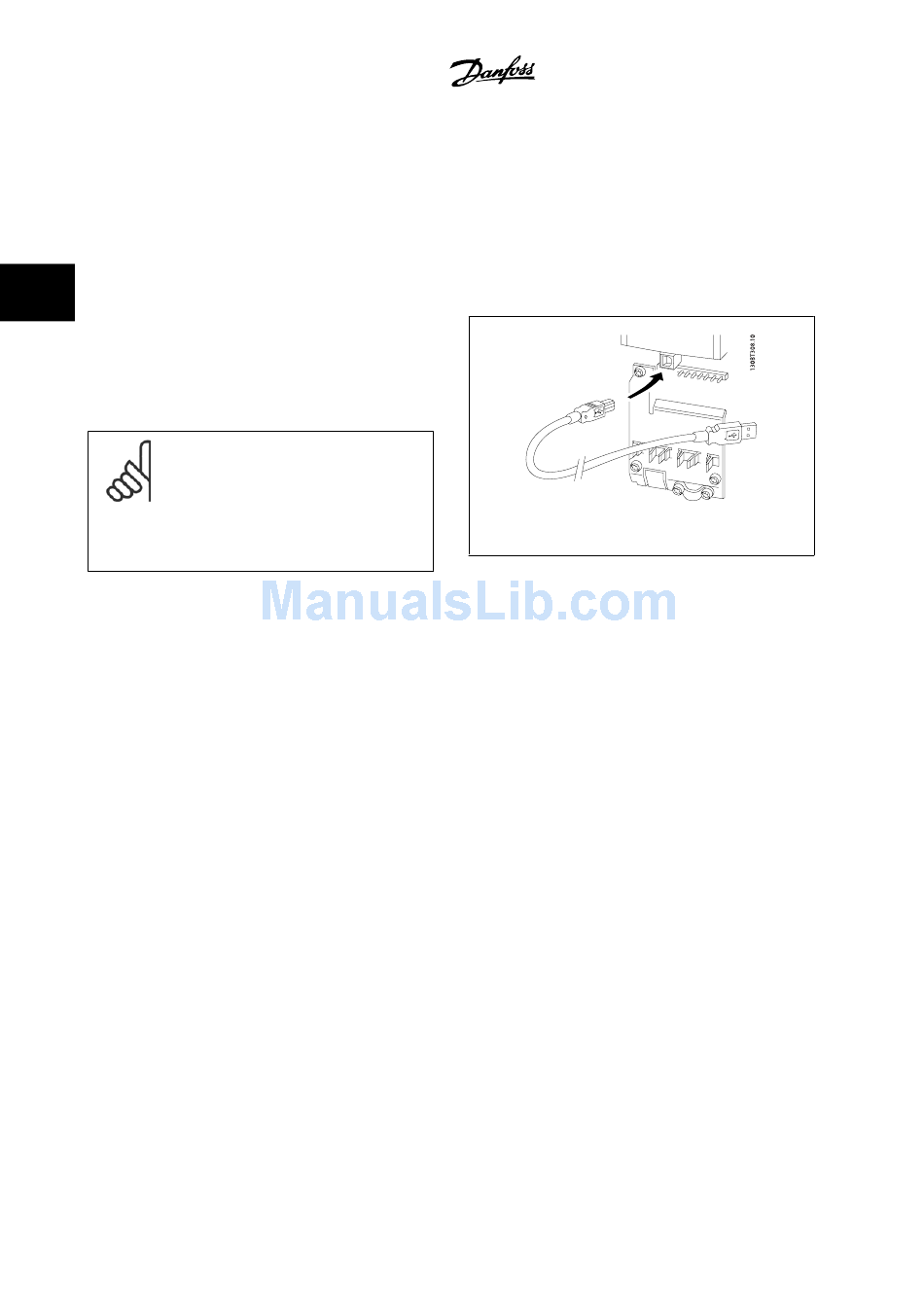

Figure 3.23: USB connection.
Data transfer from PC to drive via MCT 10 Set-up Software:
1. Connect a PC to the unit via the USB com port.
2. Open MCT 10 Set-up software
3. Choose "Open"– stored files will be shown.
4. Open the appropriate file
5. Choose "Write to drive"
All parameters are now transferred to the drive.
A separate manual for MCT 10 Set-up Software is available.
®
is a registered Danfoss trademark
Manual
Motor Thermal
