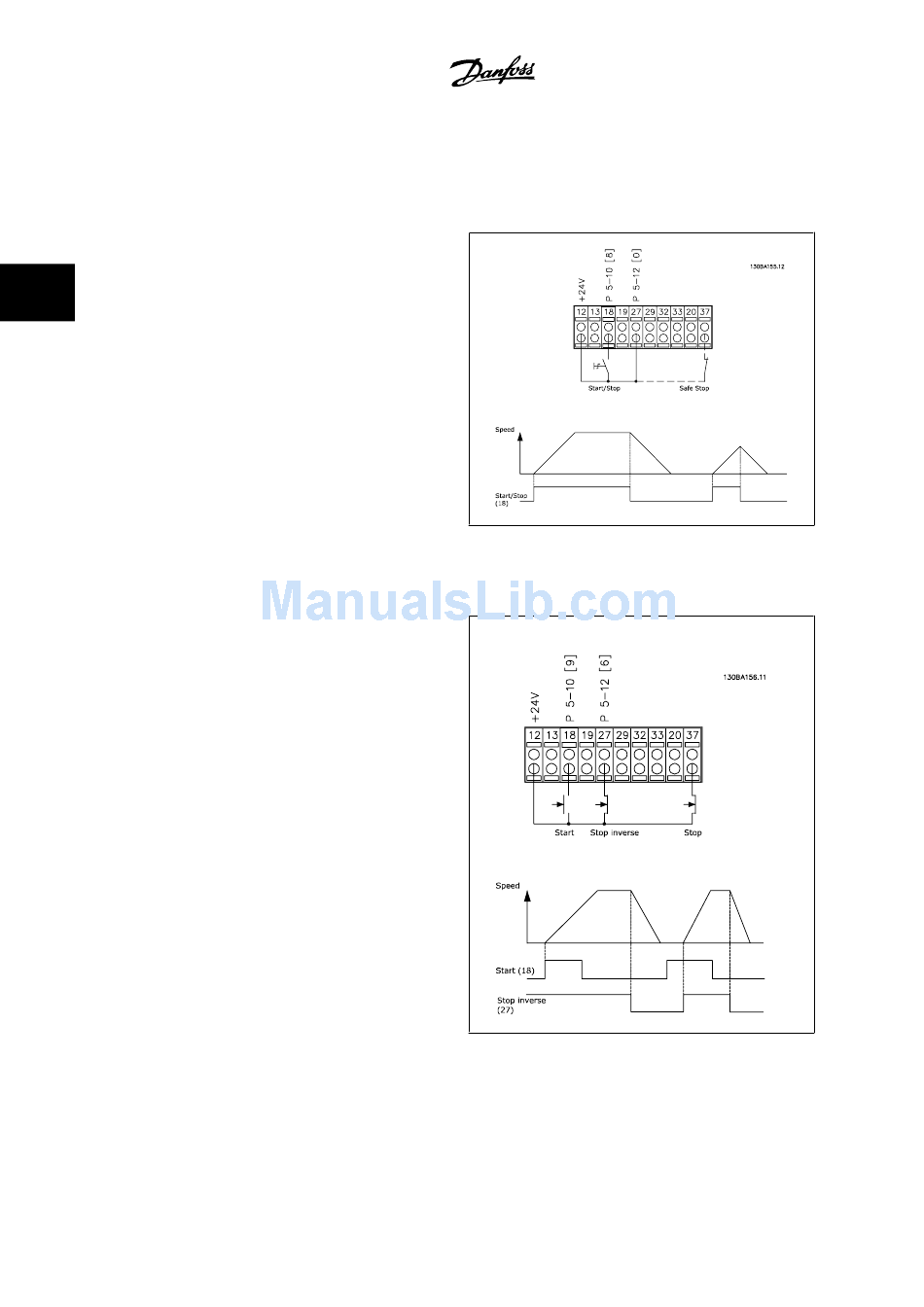

3 How to Install

3.4 Connection Examples

3.4.1 Start/Stop
Terminal 18 Digital Input
Terminal 18 = par. 5-10
Terminal 27 Digital Input
Terminal 27 = par. 5-12
fault coast inverse )
3
Terminal 37 = Safe stop (where available!)
3.4.2 Pulse Start/Stop
Terminal 18 = par. 5-10 Terminal 18 Digital Input
Terminal 27= par. 5-12 Terminal 27 Digital Input
Terminal 37 = Safe stop (where available!)
3-22
Start
[8]
No operation
[0] (De-
Latched start, [9]
Stop inverse, [6]
®
