3 How to Install
3.3.6 Access to Control Terminals
All terminals to the control cables are located underneath the terminal cover
on the front of the adjustable frequency drive. Remove the terminal cover
with a screwdriver.
3
Remove front cover to access control terminals. When replacing the front
cover, ensure proper fastening by applying a torque of 2 Nm.
3-20

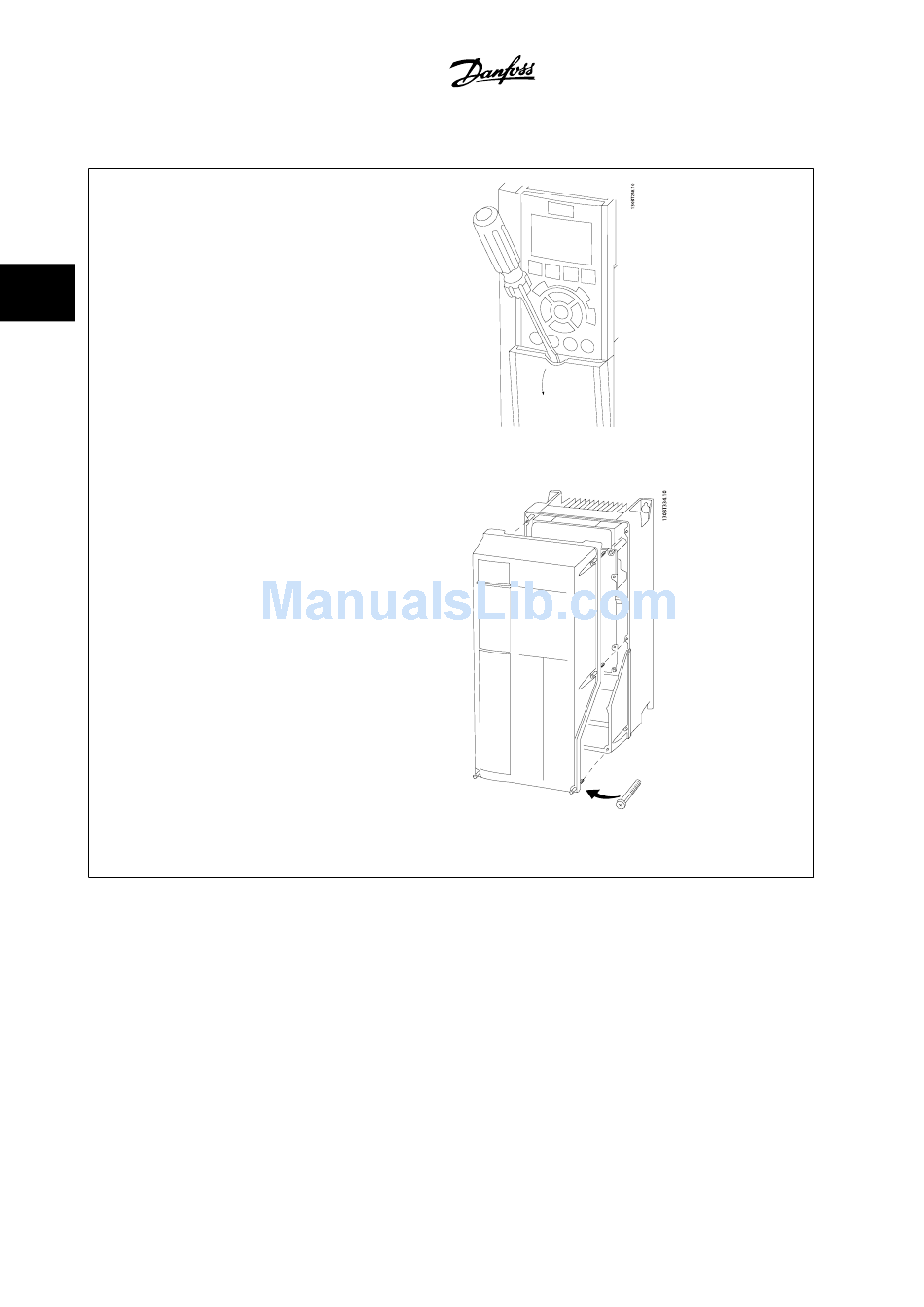

Figure 3.20: Access to control terminals for A2, A3, B3, B4, C3 and
C4 enclosures
Figure 3.21: Access to control terminals for A4, A5, B1, B2, C1 and
C2 enclosures
®
