3 How to Install
3

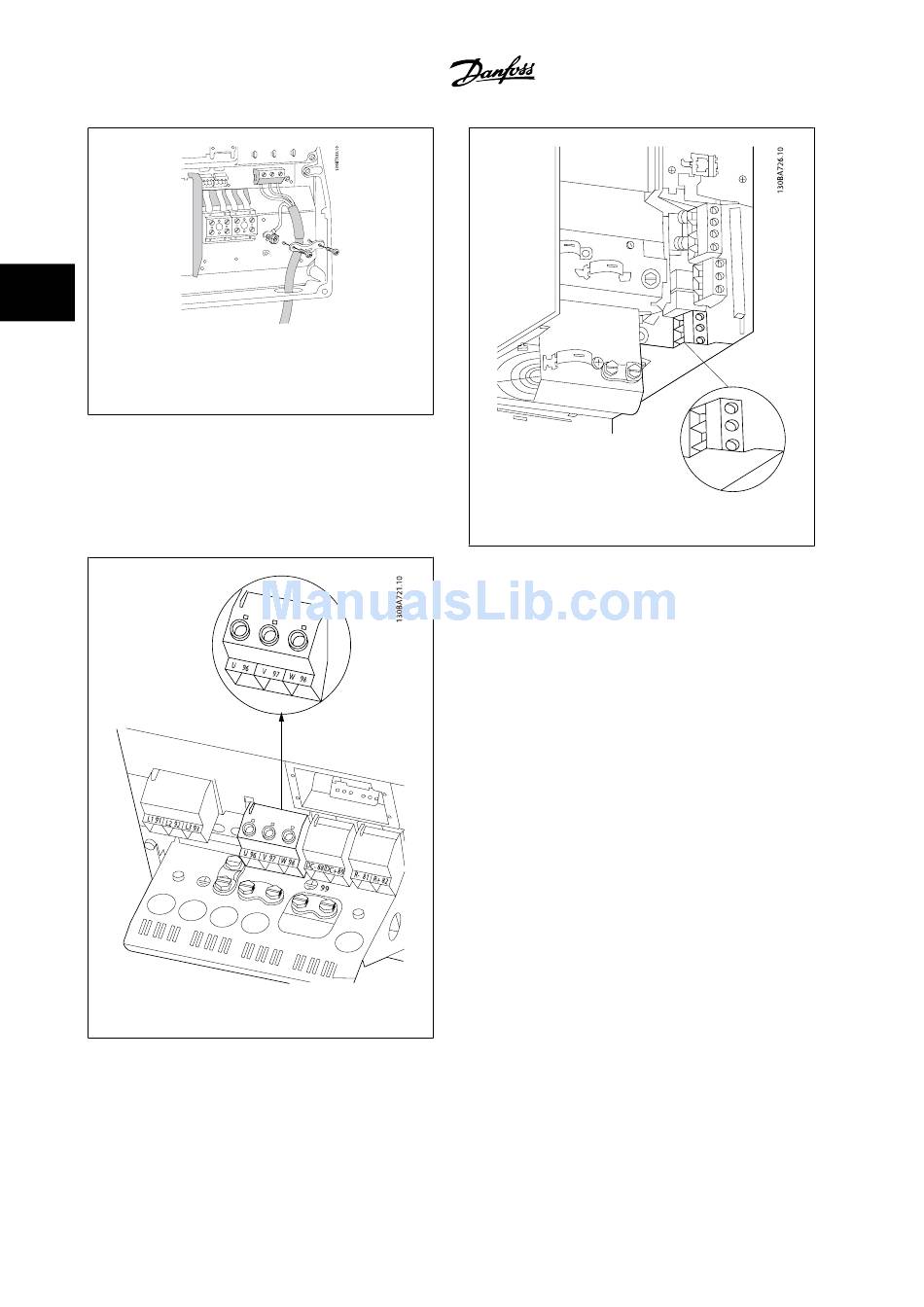

Figure 3.11: Motor connection for size B1 and B2 (IP 21/
NEMA Type 1, IP 55/ NEMA Type 12 and IP66/ NEMA Type
4X)
Figure 3.13: Motor connection for frame size B4 .
3-14
Figure 3.12: Motor connection for size B3.
®
MG.33.AG.22 - VLT
is a registered Danfoss trademark
