VLT 5000/6000/8000
High Power Installation Guide

6. Start-Up Check

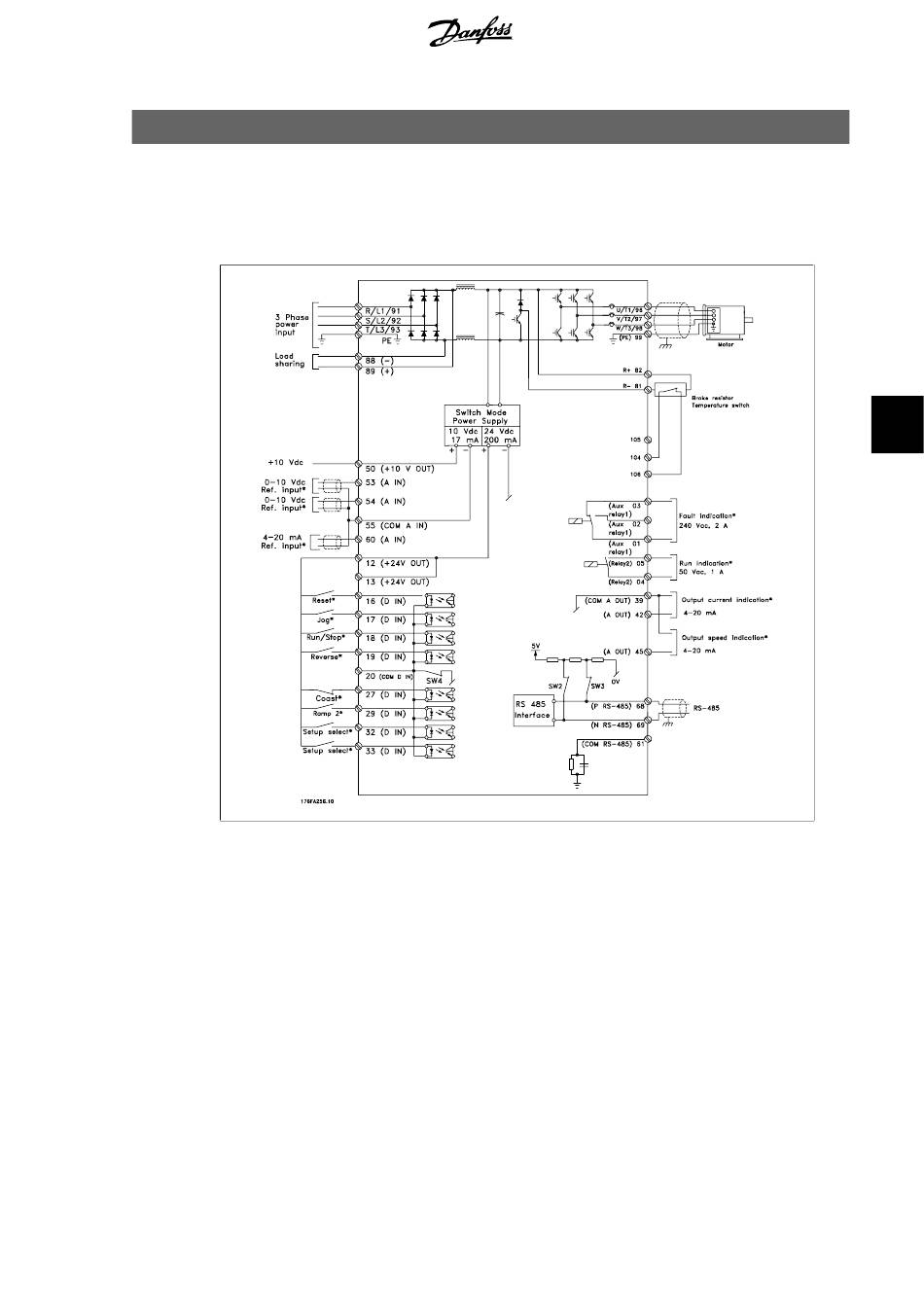

6.1.1. Connection Examples

For details see the Operating Instructions of the specific frequency converters.
Brake terminals 81 and 82 are not available in VLT 6000, VLT 8000 and VLT 4000 series.
* Depends on parameter settings.

6.1.2. Electrical Installation Procedures

The following procedure will guide you through a correct electrical installation of your VLT fre-
quency converter.
Before you start, please read the safety instructions on the first page of this instruction.
Note that the user is responsible, that the VLT frequency converter, motor and other units are
installed according to recognized local regulations. Pay special attention to cable dimensioning,
pre-fuses, earthing and over-current protection.
1. Mechanical installation check
Check the following before the electrical installation:
MI.90.J2.02 - VLT ® is a registered Danfoss trademark
6. Start-Up Check
6
47
