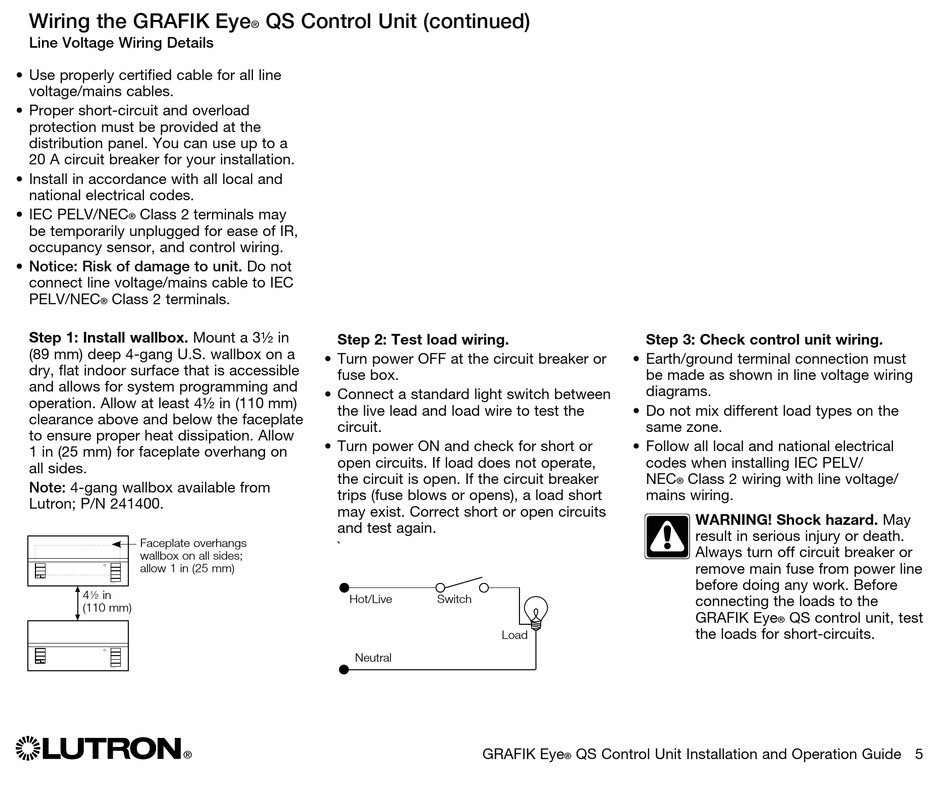

Wiring the GRAFIK Eye

Line Voltage Wiring Details

• Use properly certified cable for all line
voltage/mains cables.
• Proper short-circuit and overload
protection must be provided at the
distribution panel. You can use up to a
20 A circuit breaker for your installation.
• Install in accordance with all local and
national electrical codes.
• IEC PELV/NEC Class 2 terminals may
®
be temporarily unplugged for ease of IR,
occupancy sensor, and control wiring.
• Notice: Risk of damage to unit. Do not
connect line voltage/mains cable to IEC
PELV/NEC Class 2 terminals.
®
Step 1: Install wallbox. Mount a 3½ in
(89 mm) deep 4-gang U.S. wallbox on a
dry, flat indoor surface that is accessible
and allows for system programming and
operation. Allow at least 4½ in (110 mm)
clearance above and below the faceplate
to ensure proper heat dissipation. Allow
1 in (25 mm) for faceplate overhang on
all sides.
Note: 4-gang wallbox available from
Lutron; P/N 241400.
Faceplate overhangs
wallbox on all sides;
allow 1 in (25 mm)
LUTRON
4` in
(110 mm)
LUTRON
®
QS Control Unit (continued)
®
Step 2: Test load wiring.
• Turn power OFF at the circuit breaker or
fuse box.
• Connect a standard light switch between
the live lead and load wire to test the
circuit.
• Turn power ON and check for short or
open circuits. If load does not operate,
the circuit is open. If the circuit breaker
trips (fuse blows or opens), a load short
may exist. Correct short or open circuits
and test again.
`
Hot/Live
Neutral
Switch
Load
GRAFIK Eye QS Control Unit Installation and Operation Guide 5
®
Step 3: Check control unit wiring.
• Earth/ground terminal connection must
be made as shown in line voltage wiring
diagrams.
• Do not mix different load types on the
same zone.
• Follow all local and national electrical
codes when installing IEC PELV/
NEC Class 2 wiring with line voltage/
®
mains wiring.
WARNING! Shock hazard. May
result in serious injury or death.
Always turn off circuit breaker or
remove main fuse from power line
before doing any work. Before
connecting the loads to the
GRAFIK Eye QS control unit, test
®
the loads for short-circuits.
