Maintenance Manual > Adjustment > Mechanical Adjustment > Carriage height Adjustment
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

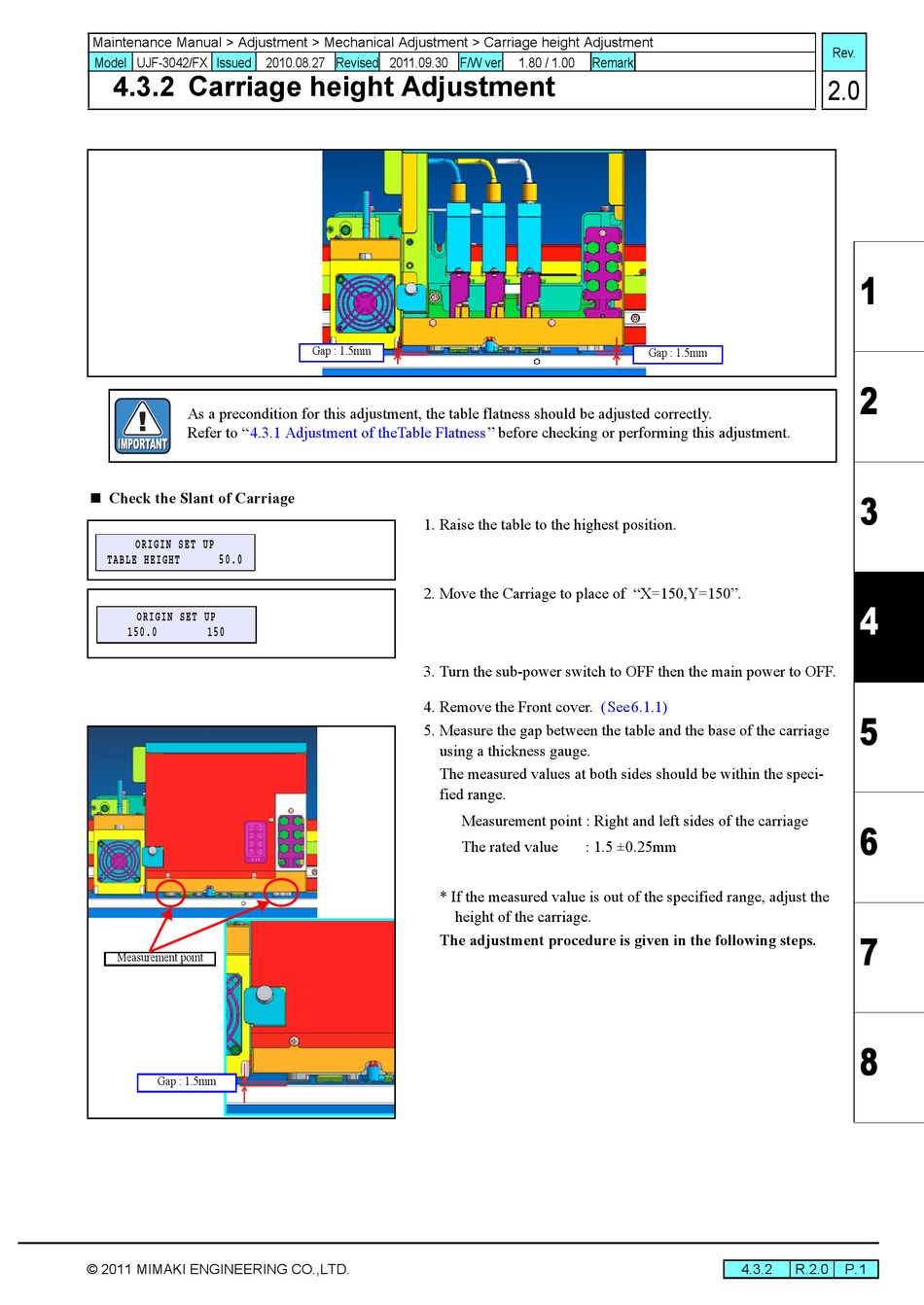

4.3.2 Carriage height Adjustment
As a precondition for this adjustment, the table flatness should be adjusted correctly.
Refer to "4.3.1 Adjustment of theTable
 Check the Slant of Carriage
ORIGIN SET UP
TABLE HEIGHT 50.0
ORIGIN SET UP
150.0 150
Measurement point
Gap : 1.5mm
© 2011 MIMAKI ENGINEERING CO.,LTD.
Gap : 1.5mm
Flatness" before checking or performing this adjustment.
1. Raise the table to the highest position.
2. Move the Carriage to place of "X=150,Y=150".
3. Turn the sub-power switch to OFF then the main power to OFF.
4. Remove the Front cover.
5. Measure the gap between the table and the base of the carriage
using a thickness gauge.
The measured values at both sides should be within the speci-
fied range.
Measurement point : Right and left sides of the carriage
The rated value
* If the measured value is out of the specified range, adjust the
height of the carriage.
The adjustment procedure is given in the following steps.
1.80 / 1.00 Remark
Gap : 1.5mm
(See6.1.1)
: 1.5 ±0.25mm
Rev.
2.0
1
2
3
4
5
6
7
8
4.3.2 R.2.0 P.1
