Maintenance Manual > Adjustment > Adjustment Items > Wash Tube
Model UJF-3042/FX Issued 2012.05.31 Revised

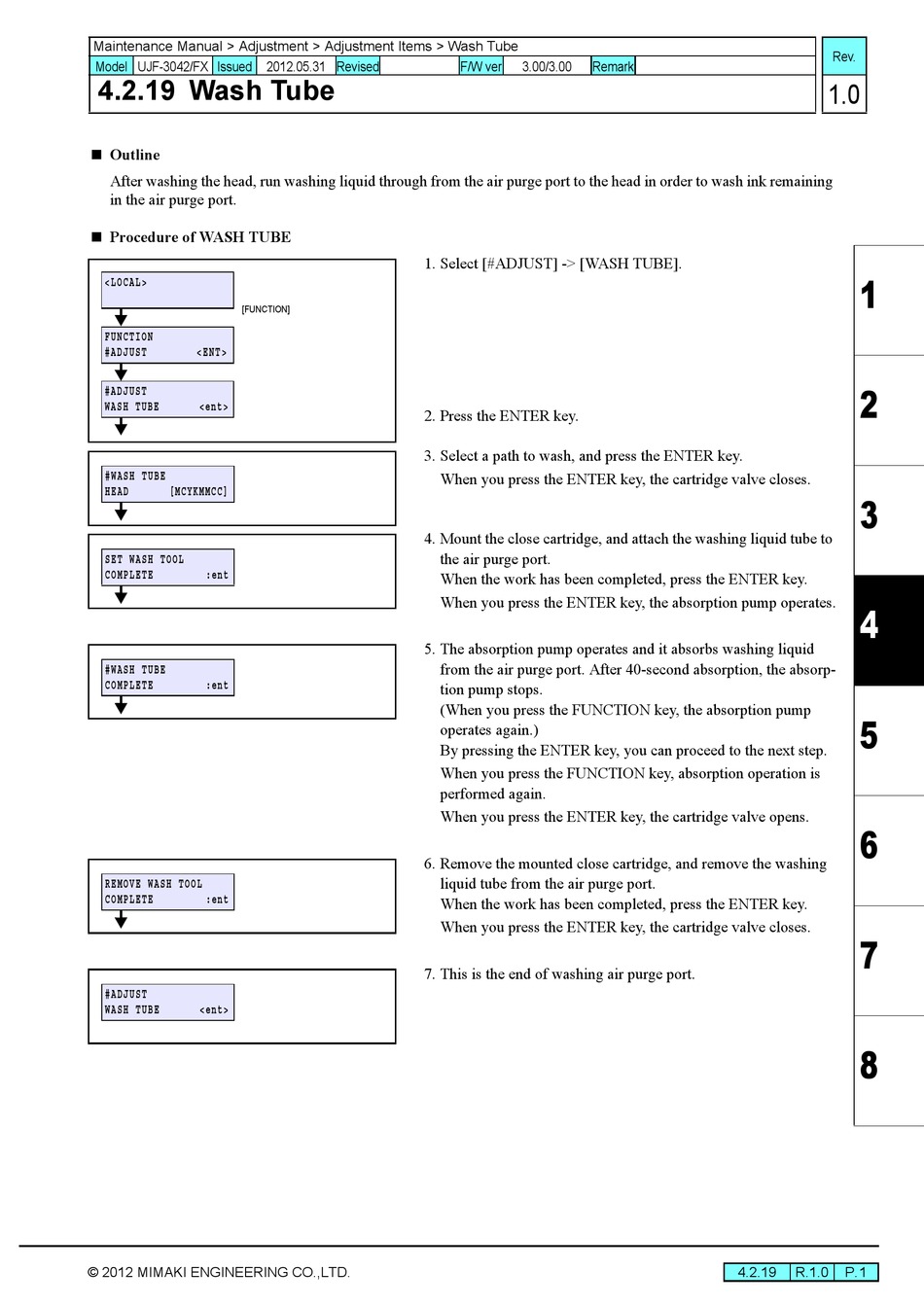

4.2.19 Wash Tube
 Outline
After washing the head, run washing liquid through from the air purge port to the head in order to wash ink remaining
in the air purge port.
 Procedure of WASH TUBE
<LOCAL>
[FUNCTION]
FUNCTION
#ADJUST <ENT>
#ADJUST
WASH TUBE <ent>
#WASH TUBE
HEAD [MCYKMMCC]
SET WASH TOOL
COMPLETE :ent
#WASH TUBE
COMPLETE :ent
REMOVE WASH TOOL
COMPLETE :ent
#ADJUST
WASH TUBE <ent>
© 2012 MIMAKI ENGINEERING CO.,LTD.
F/W ver 3.00/3.00 Remark
1. Select [#ADJUST] -> [WASH TUBE].
2. Press the ENTER key.
3. Select a path to wash, and press the ENTER key.
When you press the ENTER key, the cartridge valve closes.
4. Mount the close cartridge, and attach the washing liquid tube to
the air purge port.
When the work has been completed, press the ENTER key.
When you press the ENTER key, the absorption pump operates.
5. The absorption pump operates and it absorbs washing liquid
from the air purge port. After 40-second absorption, the absorp-
tion pump stops.
(When you press the FUNCTION key, the absorption pump
operates again.)
By pressing the ENTER key, you can proceed to the next step.
When you press the FUNCTION key, absorption operation is
performed again.
When you press the ENTER key, the cartridge valve opens.
6. Remove the mounted close cartridge, and remove the washing
liquid tube from the air purge port.
When the work has been completed, press the ENTER key.
When you press the ENTER key, the cartridge valve closes.
7. This is the end of washing air purge port.
