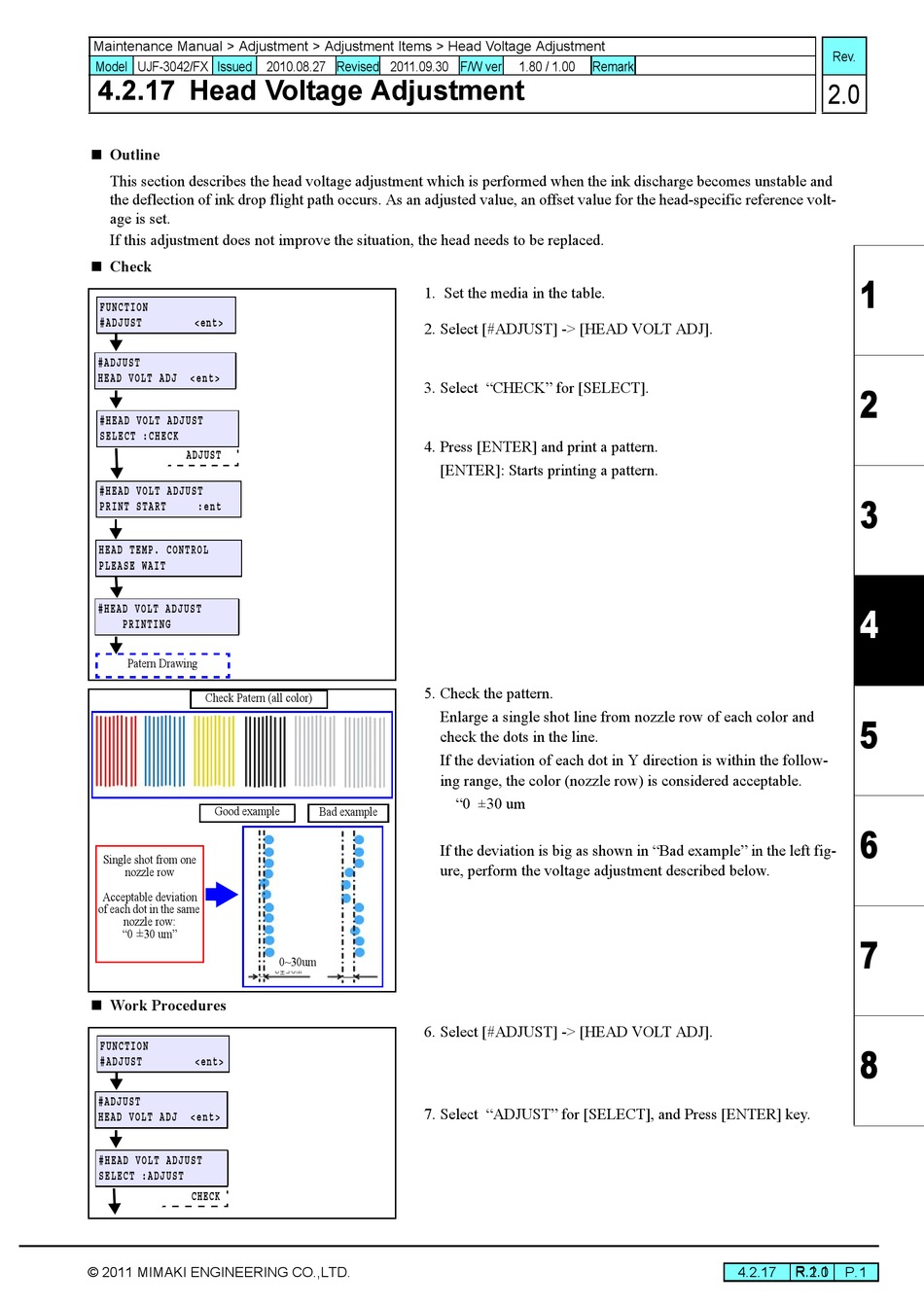

4.2.17 Head Voltage Adjustment
 Outline
This section describes the head voltage adjustment which is performed when the ink discharge becomes unstable and
the deflection of ink drop flight path occurs. As an adjusted value, an offset value for the head-specific reference volt-
age is set.
If this adjustment does not improve the situation, the head needs to be replaced.
 Check
FUNCTION
#ADJUST <ent>
#ADJUST
HEAD VOLT ADJ <ent>
#HEAD VOLT ADJUST
SELECT :CHECK
ADJUST
#HEAD VOLT ADJUST
PRINT START :ent
HEAD TEMP. CONTROL
PLEASE WAIT
#HEAD VOLT ADJUST
PRINTING
Patern Drawing
Check Patern (all color)
Good example
Single shot from one
nozzle row
Acceptable deviation
of each dot in the same
nozzle row:
±
"0 30 um"
 Work Procedures
FUNCTION
#ADJUST <ent>
#ADJUST
HEAD VOLT ADJ <ent>
#HEAD VOLT ADJUST
SELECT :ADJUST
CHECK
© 2011 MIMAKI ENGINEERING CO.,LTD.
1. Set the media in the table.
2. Select [#ADJUST] -> [HEAD VOLT ADJ].
3. Select "CHECK" for [SELECT].
4. Press [ENTER] and print a pattern.
[ENTER]: Starts printing a pattern.
5. Check the pattern.
Enlarge a single shot line from nozzle row of each color and
check the dots in the line.
If the deviation of each dot in Y direction is within the follow-
ing range, the color (nozzle row) is considered acceptable.
Bad example
If the deviation is big as shown in "Bad example" in the left fig-
ure, perform the voltage adjustment described below.
0~30um
6. Select [#ADJUST] -> [HEAD VOLT ADJ].
7. Select "ADJUST" for [SELECT], and Press [ENTER] key.
1.80 / 1.00 Remark
"0 ±30 um
Rev.
2.0
1
2
3
4
5
6
7
8
R.1.1
