Maintenance Manual > Adjustment > Adjustment Items > ANGLE ADJUST
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

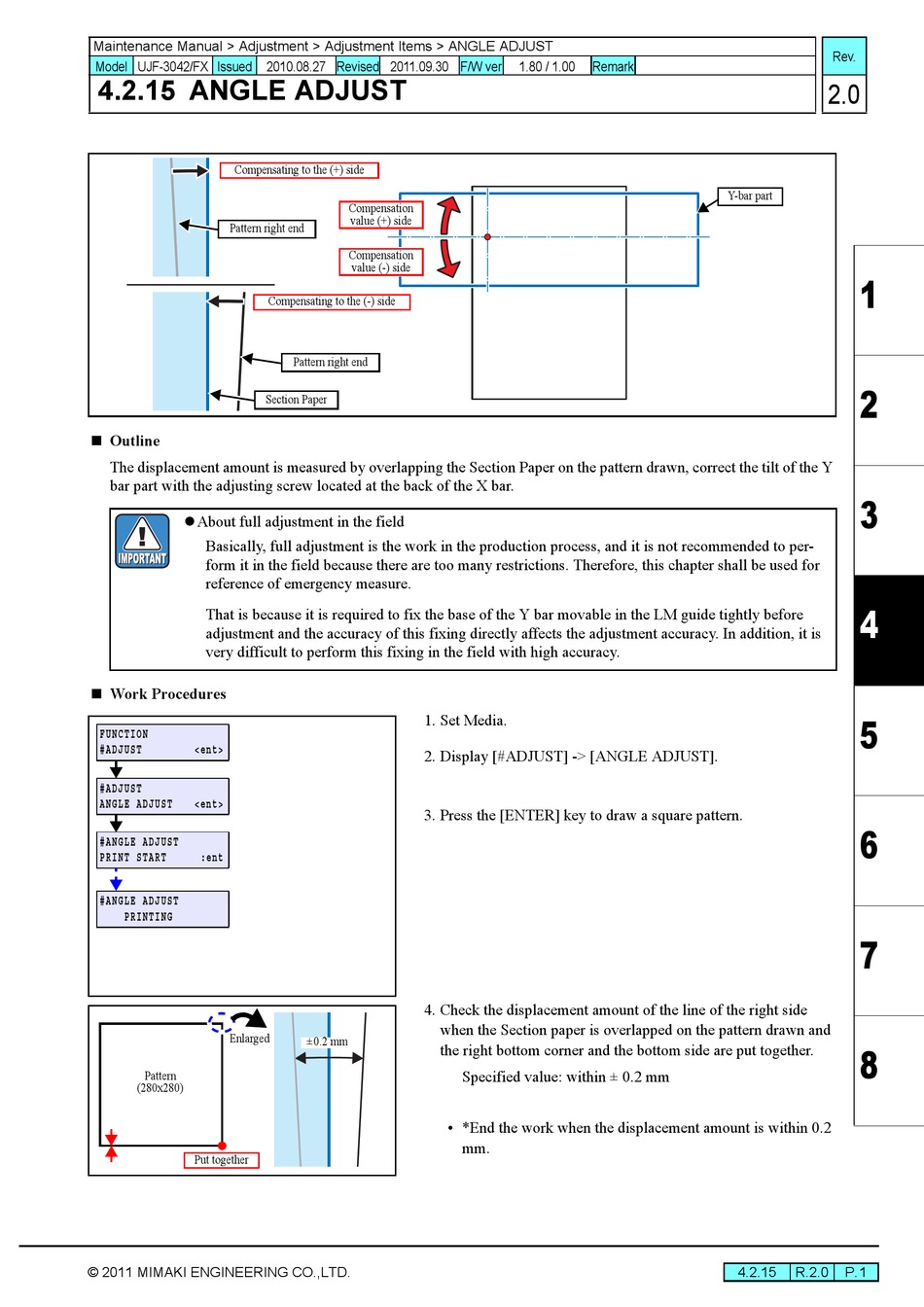

4.2.15 ANGLE ADJUST
Compensating to the (+) side
Pattern right end
 Outline
The displacement amount is measured by overlapping the Section Paper on the pattern drawn, correct the tilt of the Y
bar part with the adjusting screw located at the back of the X bar.
 About full adjustment in the field
Basically, full adjustment is the work in the production process, and it is not recommended to per-
form it in the field because there are too many restrictions. Therefore, this chapter shall be used for
reference of emergency measure.
That is because it is required to fix the base of the Y bar movable in the LM guide tightly before
adjustment and the accuracy of this fixing directly affects the adjustment accuracy. In addition, it is
very difficult to perform this fixing in the field with high accuracy.
 Work Procedures
FUNCTION
#ADJUST <ent>
#ADJUST
ANGLE ADJUST <ent>
#ANGLE ADJUST
PRINT START :ent
#ANGLE ADJUST
PRINTING
Enlarged
Pattern
(280x280)
Put together
© 2011 MIMAKI ENGINEERING CO.,LTD.
Compensation
value (+) side
Compensation
value (-) side
Compensating to the (-) side
Pattern right end
Section Paper
1. Set Media.
2. Display [#ADJUST] -> [ANGLE ADJUST].
3. Press the [ENTER] key to draw a square pattern.
4. Check the displacement amount of the line of the right side
±0.2 mm
1.80 / 1.00 Remark
when the Section paper is overlapped on the pattern drawn and
the right bottom corner and the bottom side are put together.
Specified value: within ± 0.2 mm
• *End the work when the displacement amount is within 0.2
mm.
Rev.
2.0
Y-bar part
1
2
3
4
5
6
7
8
4.2.15 R.2.0 P.1
