Maintenance Manual > Adjustment > Adjustment Items > FEED COMP.2
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

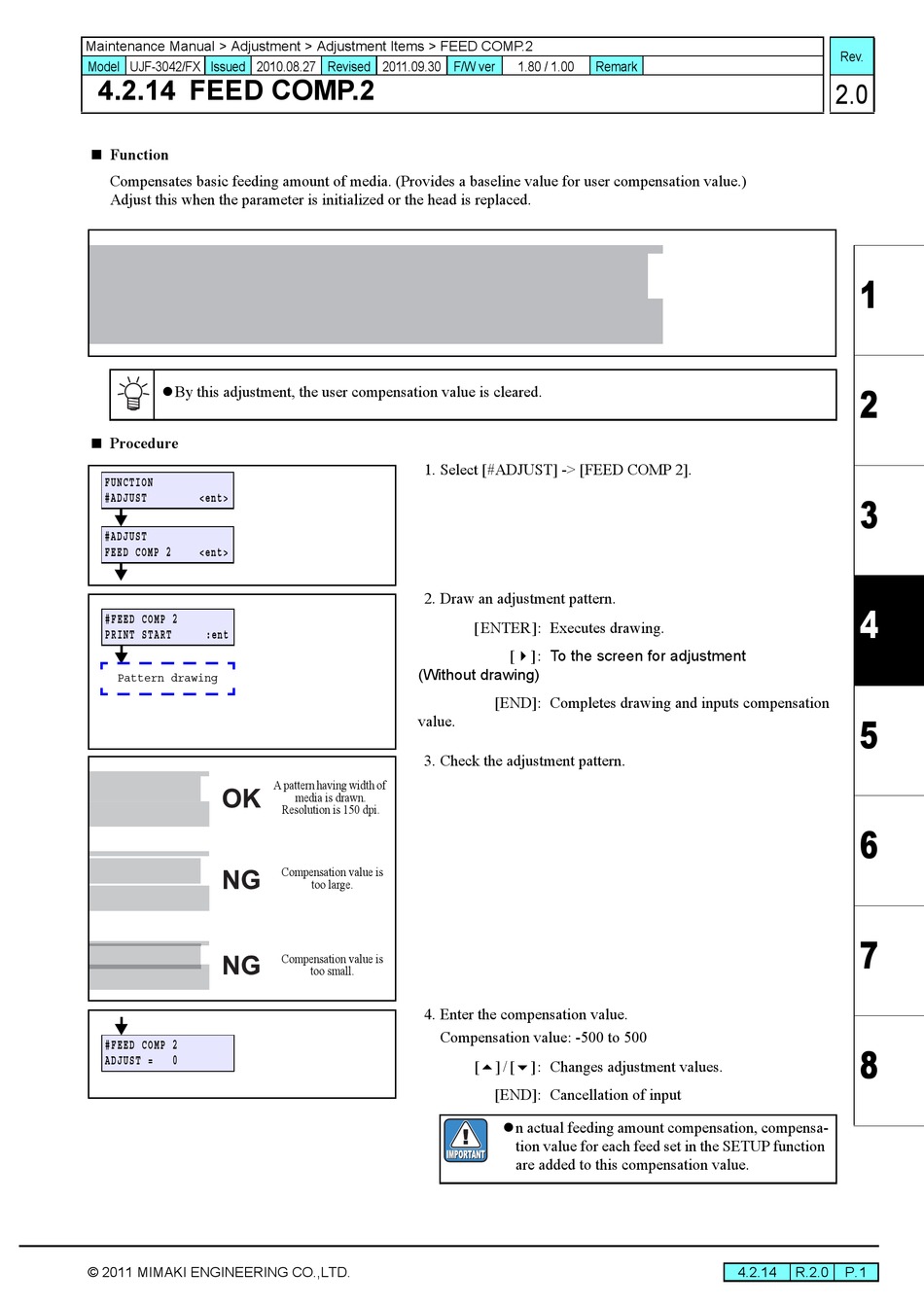

4.2.14 FEED COMP.2
 Function
Compensates basic feeding amount of media. (Provides a baseline value for user compensation value.)
Adjust this when the parameter is initialized or the head is replaced.
 By this adjustment, the user compensation value is cleared.
 Procedure
FUNCTION
#ADJUST <ent>
#ADJUST
FEED COMP 2 <ent>
#FEED COMP 2
PRINT START :ent
Pattern drawing
#FEED COMP 2
ADJUST = 0
© 2011 MIMAKI ENGINEERING CO.,LTD.
1. Select [#ADJUST] -> [FEED COMP 2].
2. Draw an adjustment pattern.
(Without drawing)
value.
3. Check the adjustment pattern.
A pattern having width of
media is drawn.
Resolution is 150 dpi.
Compensation value is
too large.
Compensation value is
too small.
4. Enter the compensation value.
Compensation value: -500 to 500
1.80 / 1.00 Remark
[ENTER]: Executes drawing.
[]: To the screen for adjustment
[END]: Completes drawing and inputs compensation
[] / []: Changes adjustment values.
[END]: Cancellation of input
 n actual feeding amount compensation, compensa-
tion value for each feed set in the SETUP function
are added to this compensation value.
Rev.
2.0
1
2
3
4
5
6
7
8
4.2.14 R.2.0 P.1
