Maintenance Manual > Adjustment > Adjustment Items > TABLE ADJUST
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

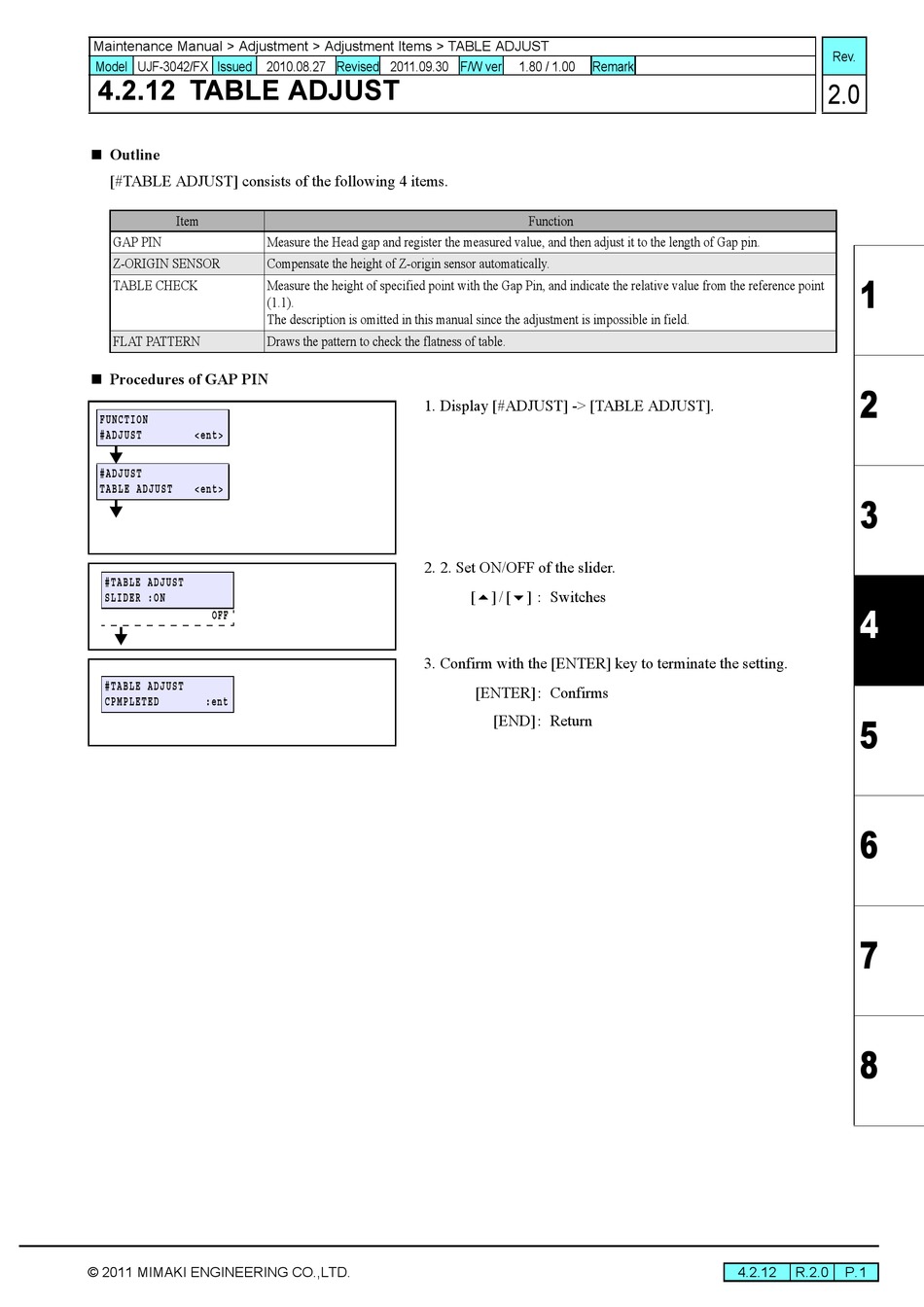

4.2.12 TABLE ADJUST
 Outline
[#TABLE ADJUST] consists of the following 4 items.
Item
GAP PIN
Z-ORIGIN SENSOR
TABLE CHECK
FLAT PATTERN
 Procedures of GAP PIN
FUNCTION
#ADJUST <ent>
#ADJUST
TABLE ADJUST <ent>
#TABLE ADJUST
SLIDER :ON
OFF
#TABLE ADJUST
CPMPLETED :ent
© 2011 MIMAKI ENGINEERING CO.,LTD.
Measure the Head gap and register the measured value, and then adjust it to the length of Gap pin.
Compensate the height of Z-origin sensor automatically.
Measure the height of specified point with the Gap Pin, and indicate the relative value from the reference point
(1.1).
The description is omitted in this manual since the adjustment is impossible in field.
Draws the pattern to check the flatness of table.
1. Display [#ADJUST] -> [TABLE ADJUST].
2. 2. Set ON/OFF of the slider.
3. Confirm with the [ENTER] key to terminate the setting.
1.80 / 1.00 Remark
Function
[] / [] : Switches
[ENTER]: Confirms
[END]: Return
Rev.
2.0
1
2
3
4
5
6
7
8
4.2.12 R.2.0 P.1
