Maintenance Manual > Adjustment > Adjustment Items > EXCHANGE LED UV
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

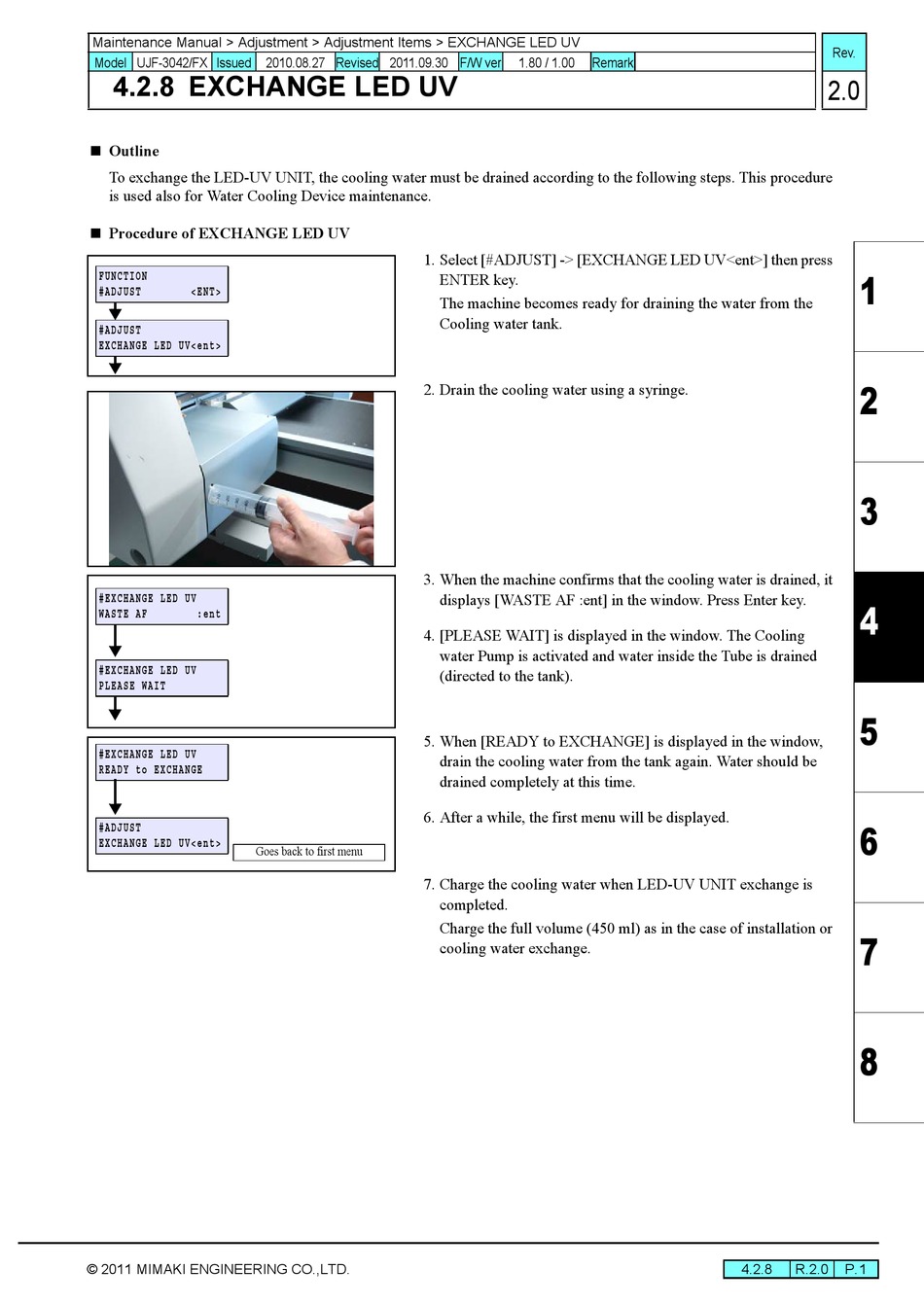

4.2.8 EXCHANGE LED UV
 Outline
To exchange the LED-UV UNIT, the cooling water must be drained according to the following steps. This procedure
is used also for Water Cooling Device maintenance.
 Procedure of EXCHANGE LED UV
FUNCTION
#ADJUST <ENT>
#ADJUST
EXCHANGE LED UV<ent>
#EXCHANGE LED UV
WASTE AF :ent
#EXCHANGE LED UV
PLEASE WAIT
#EXCHANGE LED UV
READY to EXCHANGE
#ADJUST
EXCHANGE LED UV<ent>
Goes back to first menu
© 2011 MIMAKI ENGINEERING CO.,LTD.
1.80 / 1.00 Remark
1. Select [#ADJUST] -> [EXCHANGE LED UV<ent>] then press
ENTER key.
The machine becomes ready for draining the water from the
Cooling water tank.
2. Drain the cooling water using a syringe.
3. When the machine confirms that the cooling water is drained, it
displays [WASTE AF :ent] in the window. Press Enter key.
4. [PLEASE WAIT] is displayed in the window. The Cooling
water Pump is activated and water inside the Tube is drained
(directed to the tank).
5. When [READY to EXCHANGE] is displayed in the window,
drain the cooling water from the tank again. Water should be
drained completely at this time.
6. After a while, the first menu will be displayed.
7. Charge the cooling water when LED-UV UNIT exchange is
completed.
Charge the full volume (450 ml) as in the case of installation or
cooling water exchange.
Rev.
2.0
1
2
3
4
5
6
7
8
4.2.8 R.2.0 P.1
