Maintenance Manual > Adjustment > Adjustment Items > HEAD WASH(#ADJUST)
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

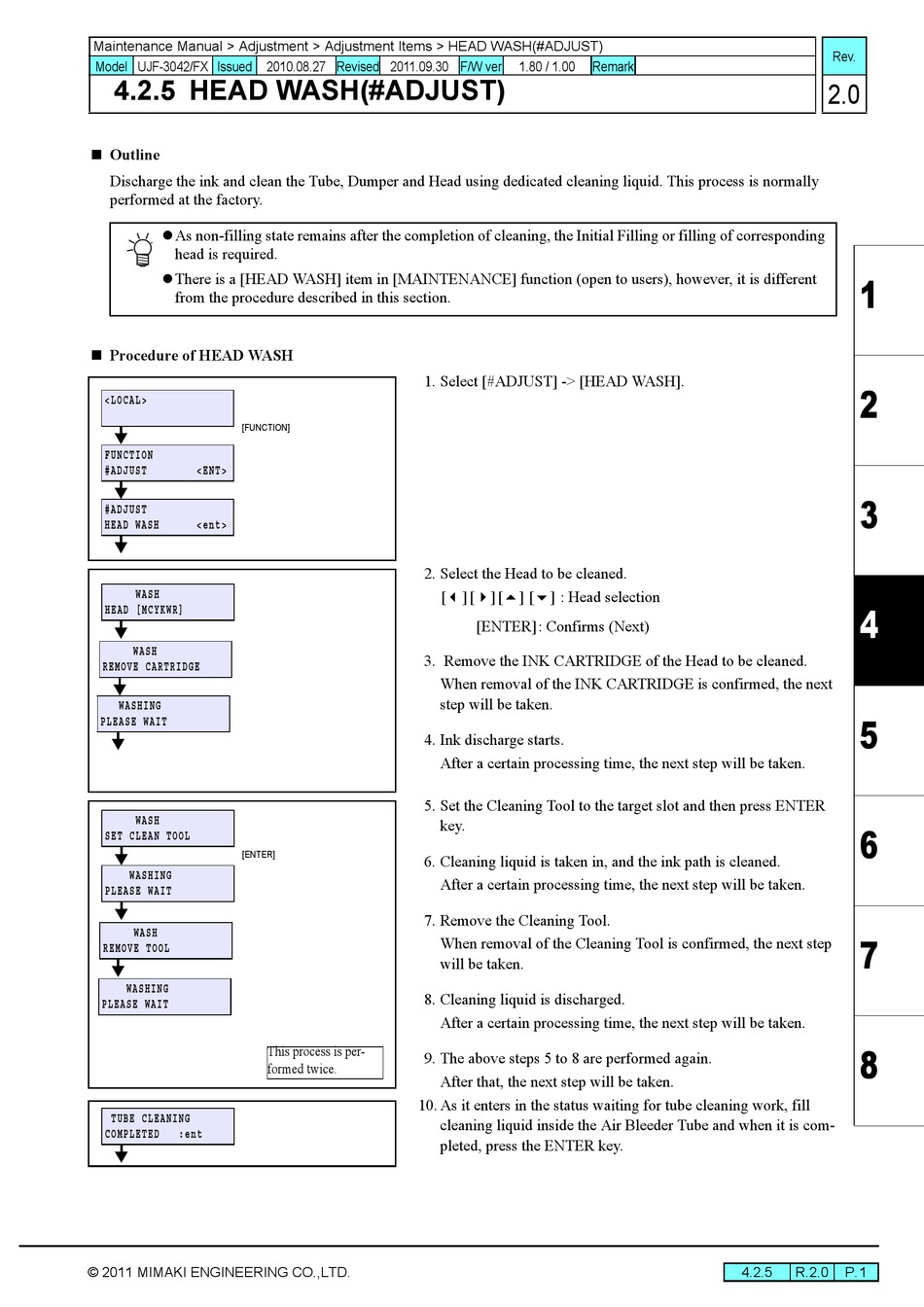

4.2.5 HEAD WASH(#ADJUST)
 Outline
Discharge the ink and clean the Tube, Dumper and Head using dedicated cleaning liquid. This process is normally
performed at the factory.
 As non-filling state remains after the completion of cleaning, the Initial Filling or filling of corresponding
head is required.
 There is a [HEAD WASH] item in [MAINTENANCE] function (open to users), however, it is different
from the procedure described in this section.
 Procedure of HEAD WASH
<LOCAL>
[FUNCTION]
FUNCTION
#ADJUST <ENT>
#ADJUST
HEAD WASH <ent>
WASH
HEAD [MCYKWR]
WASH
REMOVE CARTRIDGE
WASHING
PLEASE WAIT
WASH
SET CLEAN TOOL
[ENTER]
WASHING
PLEASE WAIT
WASH
REMOVE TOOL
WASHING
PLEASE WAIT
TUBE CLEANING
COMPLETED :ent
© 2011 MIMAKI ENGINEERING CO.,LTD.
1. Select [#ADJUST] -> [HEAD WASH].
2. Select the Head to be cleaned.
[] [] [] [] : Head selection
3. Remove the INK CARTRIDGE of the Head to be cleaned.
When removal of the INK CARTRIDGE is confirmed, the next
step will be taken.
4. Ink discharge starts.
After a certain processing time, the next step will be taken.
5. Set the Cleaning Tool to the target slot and then press ENTER
key.
6. Cleaning liquid is taken in, and the ink path is cleaned.
After a certain processing time, the next step will be taken.
7. Remove the Cleaning Tool.
When removal of the Cleaning Tool is confirmed, the next step
will be taken.
8. Cleaning liquid is discharged.
After a certain processing time, the next step will be taken.
This process is per-
9. The above steps 5 to 8 are performed again.
formed twice.
After that, the next step will be taken.
10. As it enters in the status waiting for tube cleaning work, fill
cleaning liquid inside the Air Bleeder Tube and when it is com-
pleted, press the ENTER key.
1.80 / 1.00 Remark
[ENTER]: Confirms (Next)
Rev.
2.0
1
2
3
4
5
6
7
8
4.2.5 R.2.0 P.1
