Maintenance Manual > Adjustment > Adjustment Items > ADJUST WIPER
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

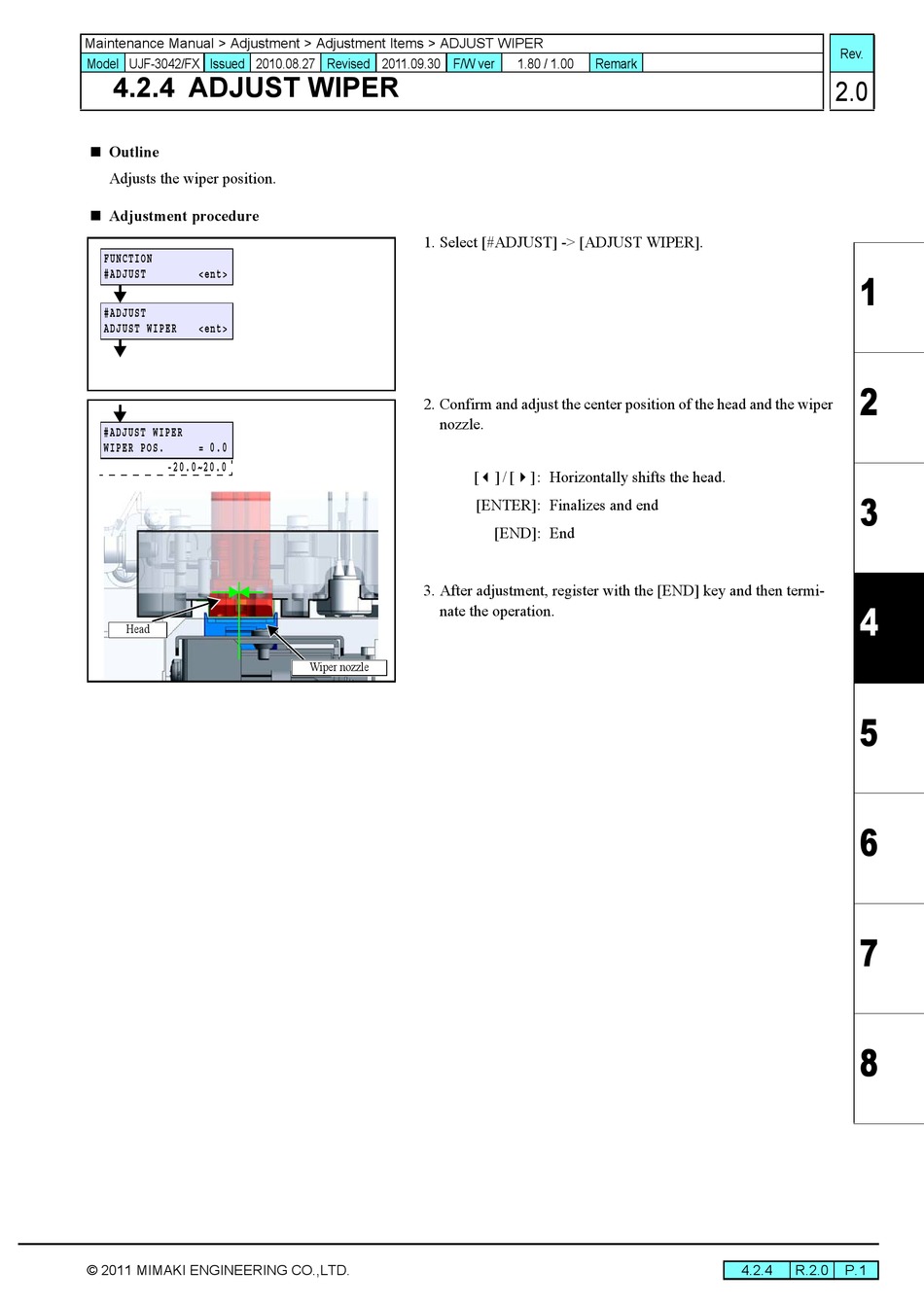

4.2.4 ADJUST WIPER
 Outline
Adjusts the wiper position.
 Adjustment procedure
FUNCTION
#ADJUST <ent>
#ADJUST
ADJUST WIPER <ent>
#ADJUST WIPER
WIPER POS. = 0.0
~
-20.0 20.0
Head
© 2011 MIMAKI ENGINEERING CO.,LTD.
1. Select [#ADJUST] -> [ADJUST WIPER].
2. Confirm and adjust the center position of the head and the wiper
nozzle.
[] / []: Horizontally shifts the head.
[ENTER]: Finalizes and end
3. After adjustment, register with the [END] key and then termi-
nate the operation.
Wiper nozzle
1.80 / 1.00 Remark
[END]: End
Rev.
2.0
1
2
3
4
5
6
7
8
4.2.4 R.2.0 P.1
