Maintenance Manual > Adjustment > Adjustment Items > HEAD ADJUST
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver
4.2.2 HEAD ADJUST

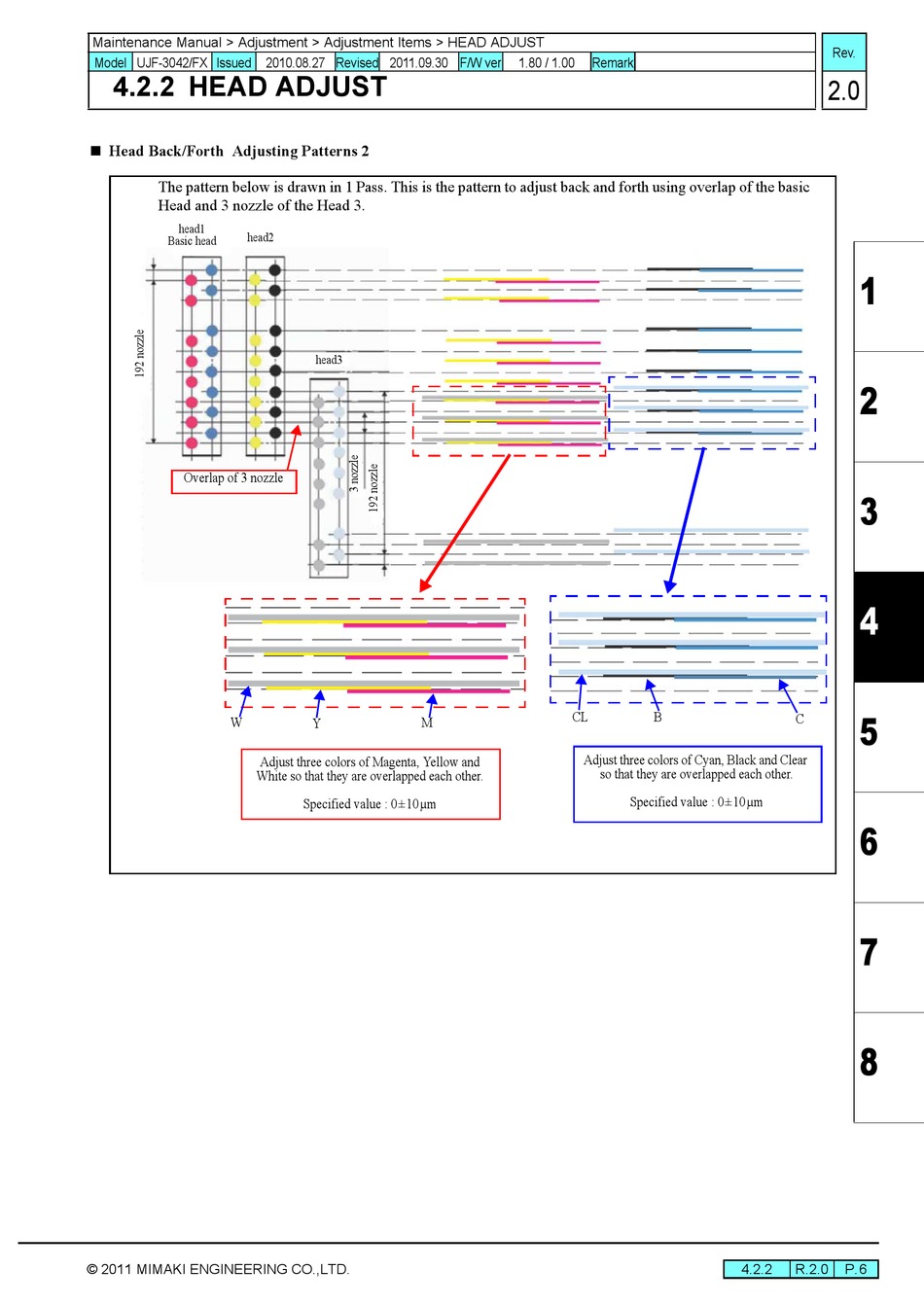

 Head Back/Forth Adjusting Patterns 2
The pattern below is drawn in 1 Pass. This is the pattern to adjust back and forth using overlap of the basic
Head and 3 nozzle of the Head 3.
head1
head2
Basic head
Overlap of 3 nozzle
W
Adjust three colors of Magenta, Yellow and
White so that they are overlapped each other.
© 2011 MIMAKI ENGINEERING CO.,LTD.
head3
M
Y
Specified value : 0±10µm
1.80 / 1.00 Remark
CL B
Adjust three colors of Cyan, Black and Clear
so that they are overlapped each other.
Specified value : 0±10µm
Rev.
2.0
1
2
3
4
5
C
6
7
8
4.2.2 R.2.0 P.6
