2011 Mimaki Engineering Co.,Ltd - MIMAKI UJF-3042 Maintenance Manual

Maintenance Manual > Adjustment > Adjustment Items > HEAD ADJUST
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

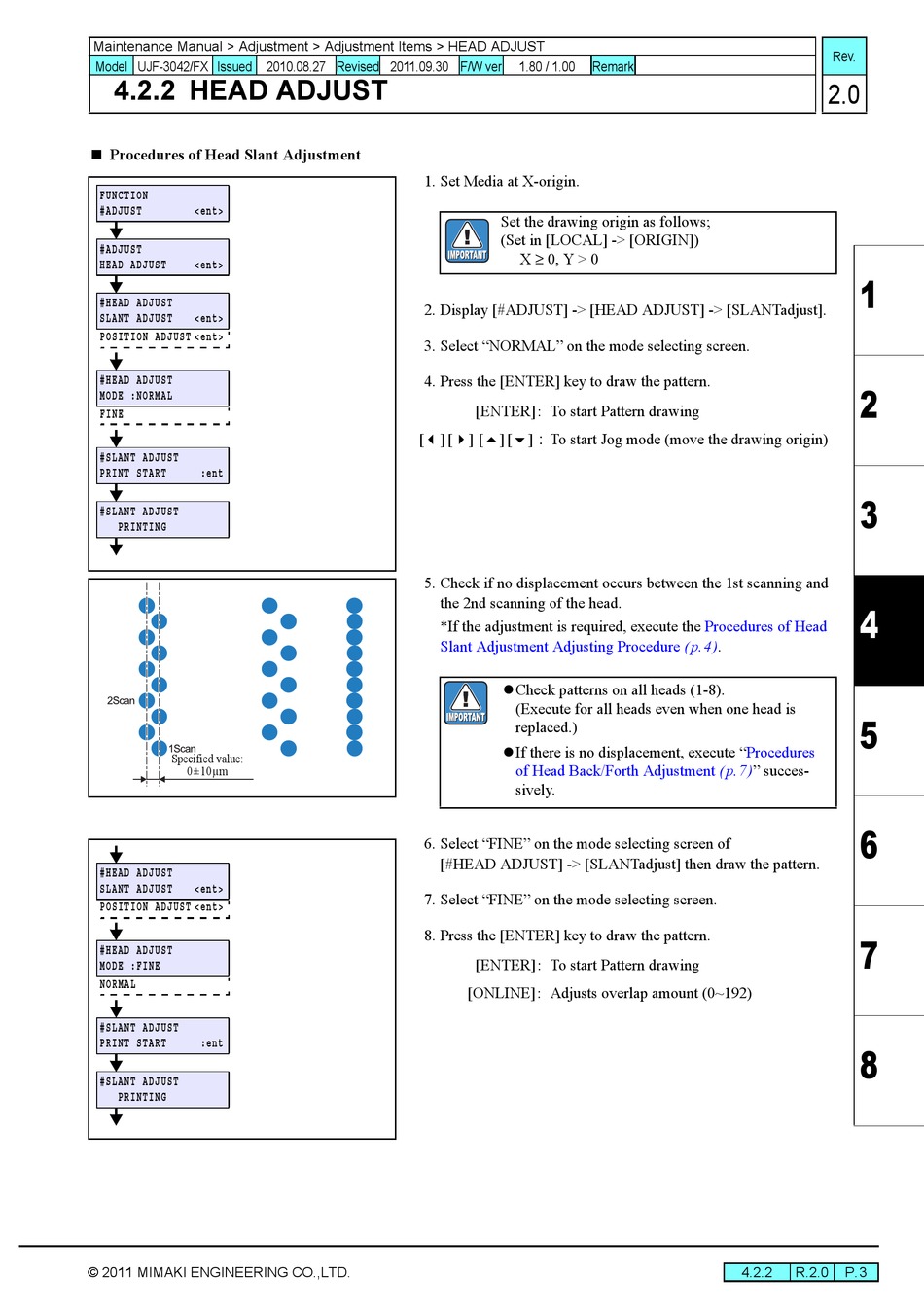

4.2.2 HEAD ADJUST
 Procedures of Head Slant Adjustment
FUNCTION
#ADJUST <ent>
#ADJUST
HEAD ADJUST <ent>
#HEAD ADJUST
SLANT ADJUST <ent>
POSITION ADJUST <ent>
#HEAD ADJUST
MODE :NORMAL
FINE
#SLANT ADJUST
PRINT START :ent
#SLANT ADJUST
PRINTING
Specified value:
0±10µm
#HEAD ADJUST
SLANT ADJUST <ent>
POSITION ADJUST <ent>
#HEAD ADJUST
MODE :FINE
NORMAL
#SLANT ADJUST
PRINT START :ent
#SLANT ADJUST
PRINTING
© 2011 MIMAKI ENGINEERING CO.,LTD.
1.80 / 1.00 Remark
1. Set Media at X-origin.
Set the drawing origin as follows;
(Set in [LOCAL] -> [ORIGIN])
X ≥ 0, Y > 0
2. Display [#ADJUST] -> [HEAD ADJUST] -> [SLANTadjust].
3. Select "NORMAL" on the mode selecting screen.
4. Press the [ENTER] key to draw the pattern.
[ENTER]: To start Pattern drawing
[] [] [] [] : To start Jog mode (move the drawing origin)
5. Check if no displacement occurs between the 1st scanning and
the 2nd scanning of the head.
*If the adjustment is required, execute the
Slant Adjustment Adjusting Procedure
 Check patterns on all heads (1-8).
(Execute for all heads even when one head is
replaced.)
 If there is no displacement, execute
of Head Back/Forth Adjustment
sively.
6. Select "FINE" on the mode selecting screen of
[#HEAD ADJUST] -> [SLANTadjust] then draw the pattern.
7. Select "FINE" on the mode selecting screen.
8. Press the [ENTER] key to draw the pattern.
[ENTER]: To start Pattern drawing
[ONLINE]: Adjusts overlap amount (0~192)
Rev.
2.0
Procedures of Head
(p.4).
"Procedures
(p.7)" succes-
4.2.2 R.2.0 P.3
