Maintenance Manual > Adjustment > Adjustment Items > HEAD ADJUST
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver
4.2.2 HEAD ADJUST

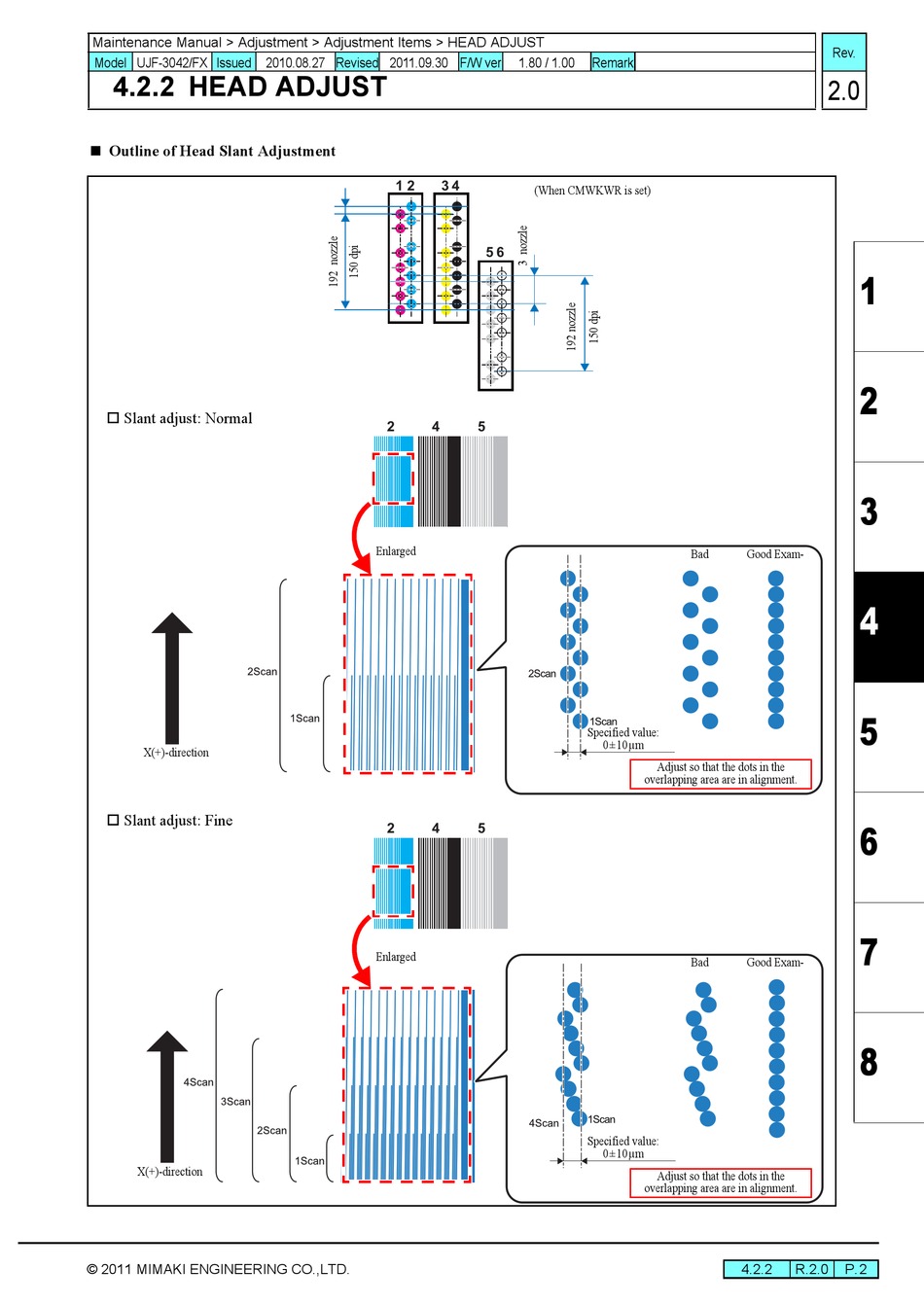

 Outline of Head Slant Adjustment
 Slant adjust: Normal
X(+)-direction
 Slant adjust: Fine
X(+)-direction
© 2011 MIMAKI ENGINEERING CO.,LTD.
1.80 / 1.00
1 2 3 4
(When CMWKWR is set)
5 6
2 4 5
Enlarged
2 4 5
Enlarged
Remark
Bad Good Exam-
Specified value:
0±10µm
Adjust so that the dots in the
overlapping area are in alignment.
Bad Good Exam-
Specified value:
0±10µm
Adjust so that the dots in the
overlapping area are in alignment.
4.2.2
Rev.
2.0
