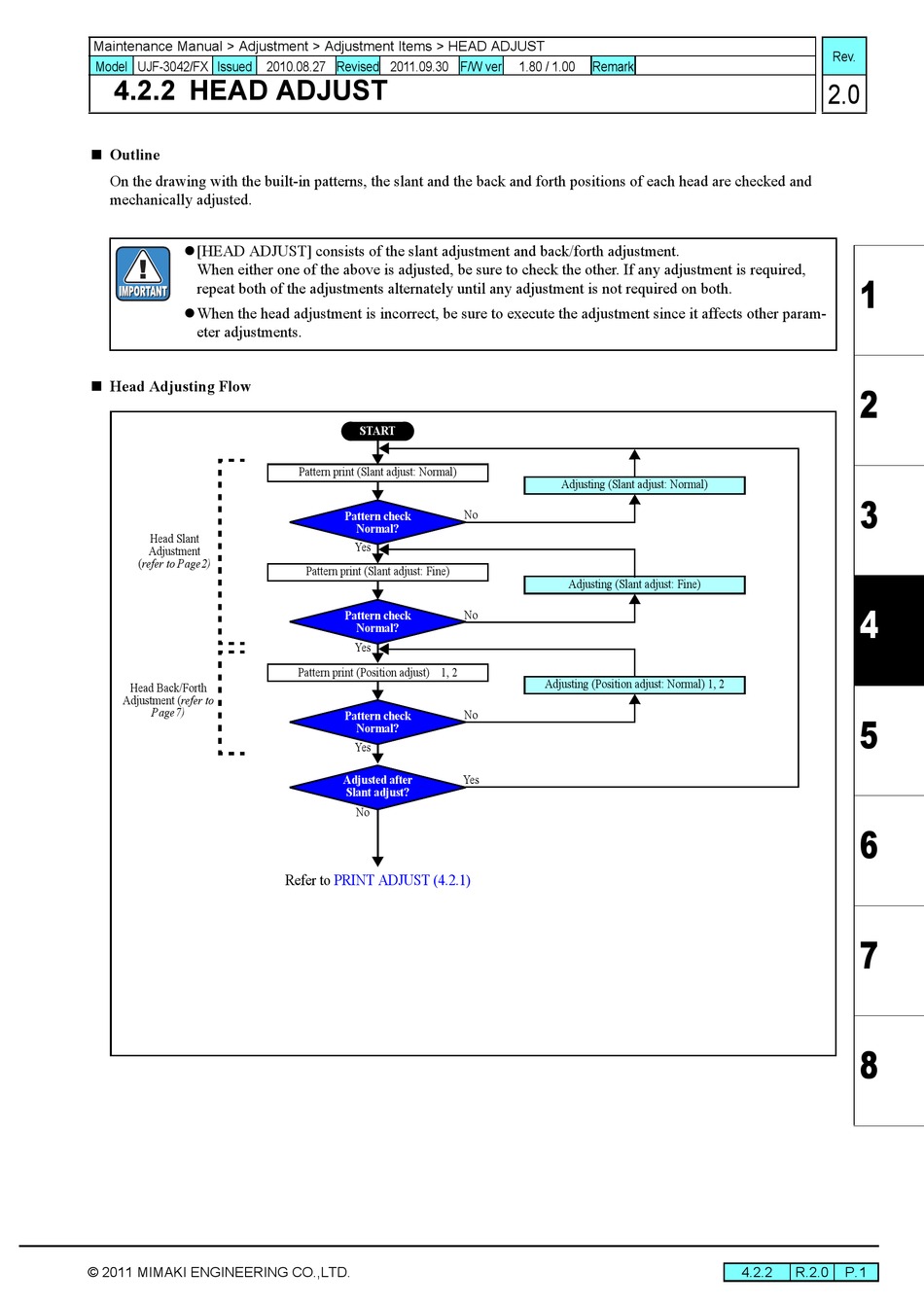

4.2.2 HEAD ADJUST
 Outline
On the drawing with the built-in patterns, the slant and the back and forth positions of each head are checked and
mechanically adjusted.
 [HEAD ADJUST] consists of the slant adjustment and back/forth adjustment.
When either one of the above is adjusted, be sure to check the other. If any adjustment is required,
repeat both of the adjustments alternately until any adjustment is not required on both.
 When the head adjustment is incorrect, be sure to execute the adjustment since it affects other param-
eter adjustments.
 Head Adjusting Flow
Head Slant
Adjustment
(refer to Page2)
Head Back/Forth
Adjustment (refer to
Page7)
© 2011 MIMAKI ENGINEERING CO.,LTD.
START
Pattern print (Slant adjust: Normal)
Pattern check
Normal?
Yes
Pattern print (Slant adjust: Fine)
Pattern check
Normal?
Yes
Pattern print (Position adjust) 1, 2
Pattern check
Normal?
Yes
Adjusted after
Slant adjust?
No
Refer to PRINT ADJUST (4.2.1)
1.80 / 1.00 Remark
Adjusting (Slant adjust: Normal)
No
Adjusting (Slant adjust: Fine)
No
Adjusting (Position adjust: Normal) 1, 2
No
Yes
Rev.
2.0
1
2
3
4
5
6
7
8
