Maintenance Manual > Adjustment > Adjustment Items > PRINT ADJUST
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

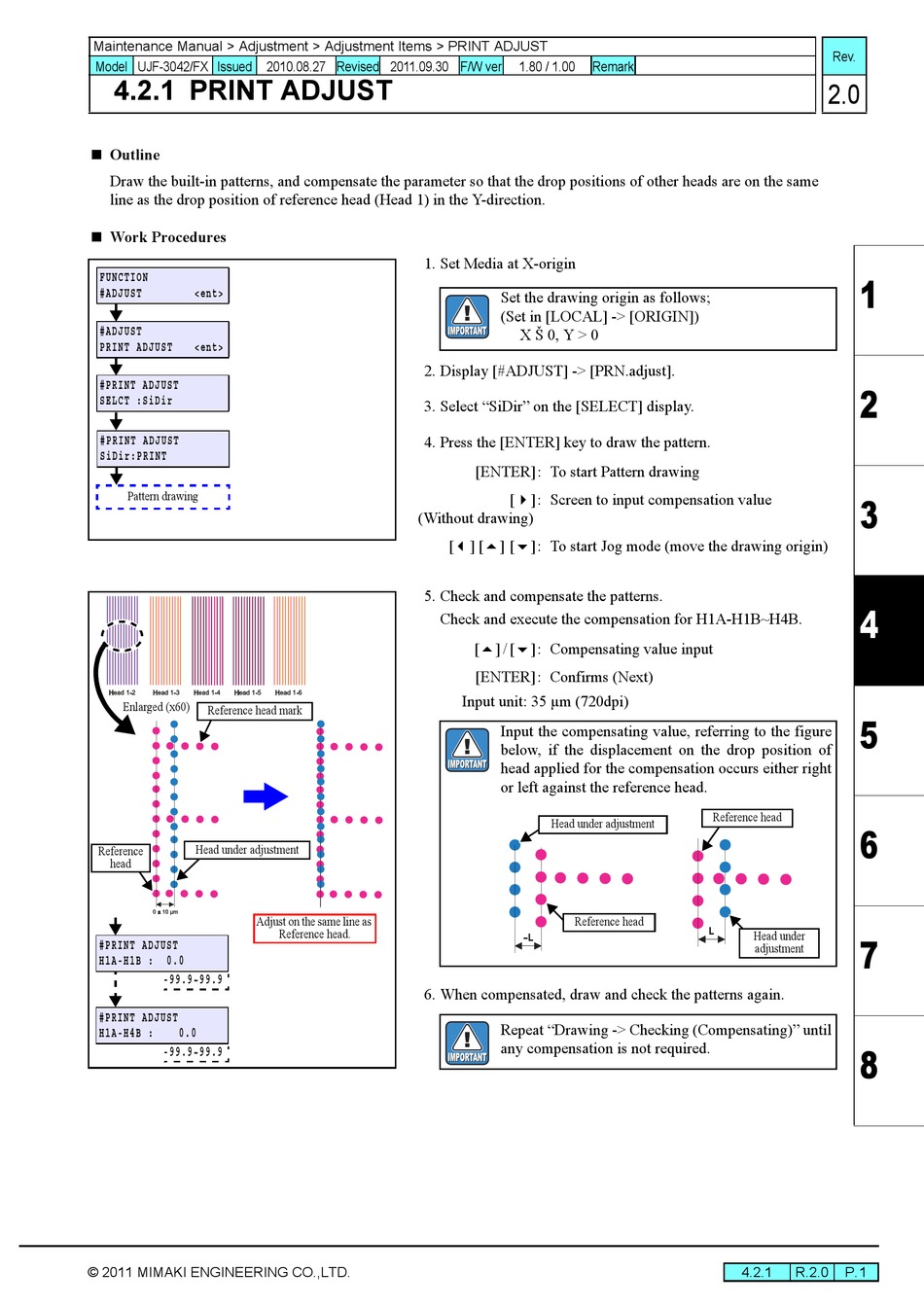

4.2.1 PRINT ADJUST
 Outline
Draw the built-in patterns, and compensate the parameter so that the drop positions of other heads are on the same
line as the drop position of reference head (Head 1) in the Y-direction.
 Work Procedures
FUNCTION
#ADJUST <ent>
#ADJUST
PRINT ADJUST <ent>
#PRINT ADJUST
SELCT :SiDir
#PRINT ADJUST
SiDir:PRINT
Pattern drawing
Enlarged (x60)
Reference head mark
Head under adjustment
Reference
head
Adjust on the same line as
#PRINT ADJUST
H1A-H1B : 0.0
-99.9~99.9
#PRINT ADJUST
H1A-H4B : 0.0
-99.9~99.9
© 2011 MIMAKI ENGINEERING CO.,LTD.
1. Set Media at X-origin
2. Display [#ADJUST] -> [PRN.adjust].
3. Select "SiDir" on the [SELECT] display.
4. Press the [ENTER] key to draw the pattern.
(Without drawing)
[] [] []: To start Jog mode (move the drawing origin)
5. Check and compensate the patterns.
Check and execute the compensation for H1A-H1B~H4B.
Reference head.
6. When compensated, draw and check the patterns again.
1.80 / 1.00 Remark
.
Set the drawing origin as follows;
(Set in [LOCAL] -> [ORIGIN])
X Š 0, Y > 0
[ENTER]: To start Pattern drawing
[]: Screen to input compensation value
[] / []: Compensating value input
[ENTER]: Confirms (Next)
Input unit: 35 µm (720dpi)
Input the compensating value, referring to the figure
below, if the displacement on the drop position of
head applied for the compensation occurs either right
or left against the reference head.
Head under adjustment
Reference head
Repeat "Drawing -> Checking (Compensating)" until
any compensation is not required.
Rev.
2.0
1
2
3
4
5
Reference head
6
7
Head under
adjustment
8
