Maintenance Manual > Workflow > UV UNIT > Replacement of LEDUV Irradiation Assy
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

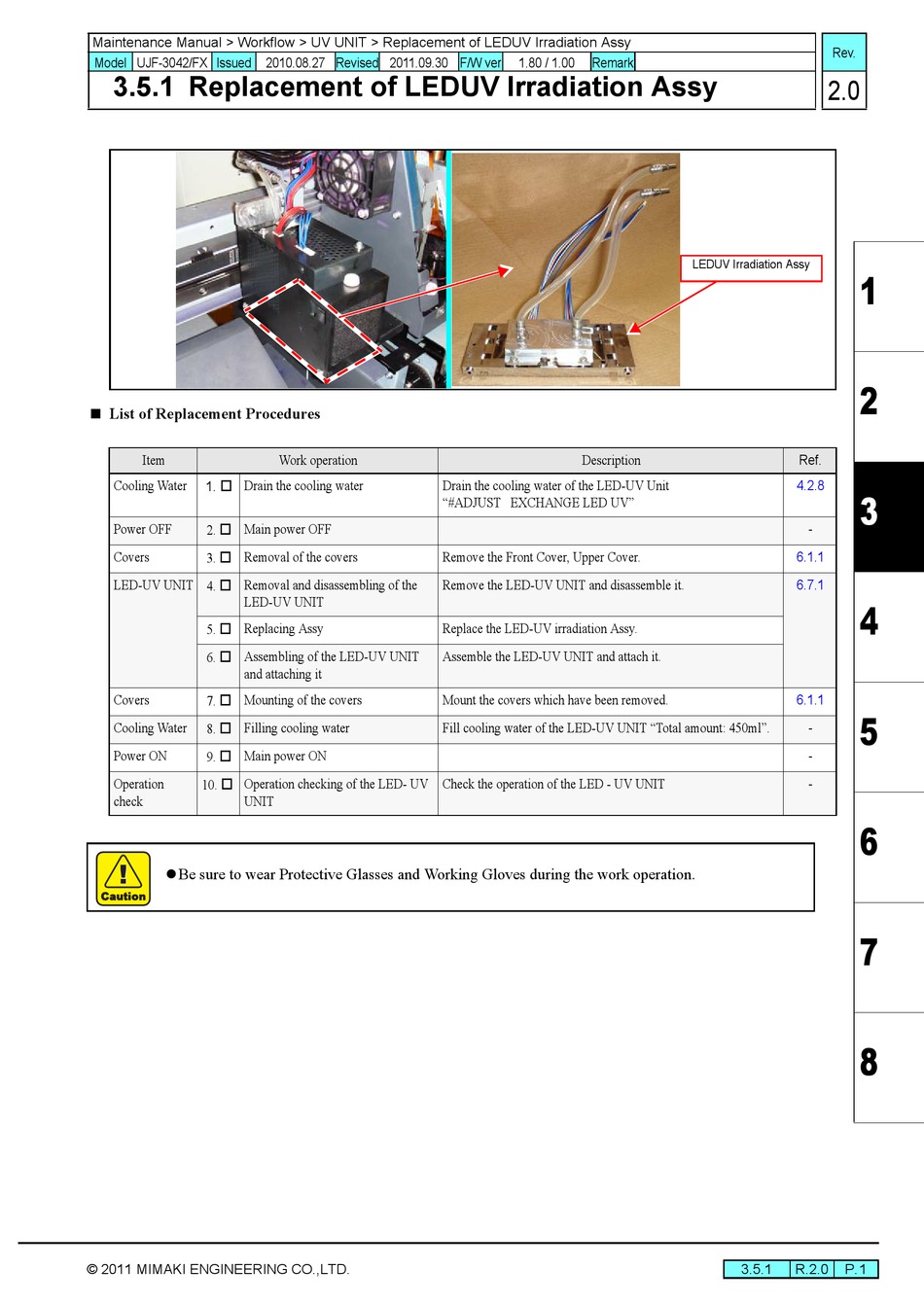

3.5.1 Replacement of LEDUV Irradiation Assy
 List of Replacement Procedures
Item

Cooling Water 1. Drain the cooling water
Power OFF  Main power OFF
2.
Covers  Removal of the covers
3.

LED-UV UNIT 4. Removal and disassembling of the
LED-UV UNIT
 Replacing Assy
5.
 Assembling of the LED-UV UNIT
6.
and attaching it

Covers Mounting of the covers
7.

Cooling Water Filling cooling water
8.
Power ON  Main power ON
9.
Operation  Operation checking of the LED- UV
10.
check UNIT
 Be sure to wear Protective Glasses and Working Gloves during the work operation.
© 2011 MIMAKI ENGINEERING CO.,LTD.
Work operation
Drain the cooling water of the LED-UV Unit
"#ADJUST EXCHANGE LED UV"
Remove the Front Cover, Upper Cover.
Remove the LED-UV UNIT and disassemble it.
Replace the LED-UV irradiation Assy.
Assemble the LED-UV UNIT and attach it.
Mount the covers which have been removed.
Fill cooling water of the LED-UV UNIT "Total amount: 450ml".
Check the operation of the LED - UV UNIT
1.80 / 1.00 Remark
LEDUV Irradiation Assy
Description
Rev.
2.0
1
2
Ref.
4.2.8
3
-
6.1.1
6.7.1
4
6.1.1
5
-
-
-
6
7
8
3.5.1 R.2.0 P.1
