Maintenance Manual > Workflow > Electrical Parts > Replacement of ID Contact PCB
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

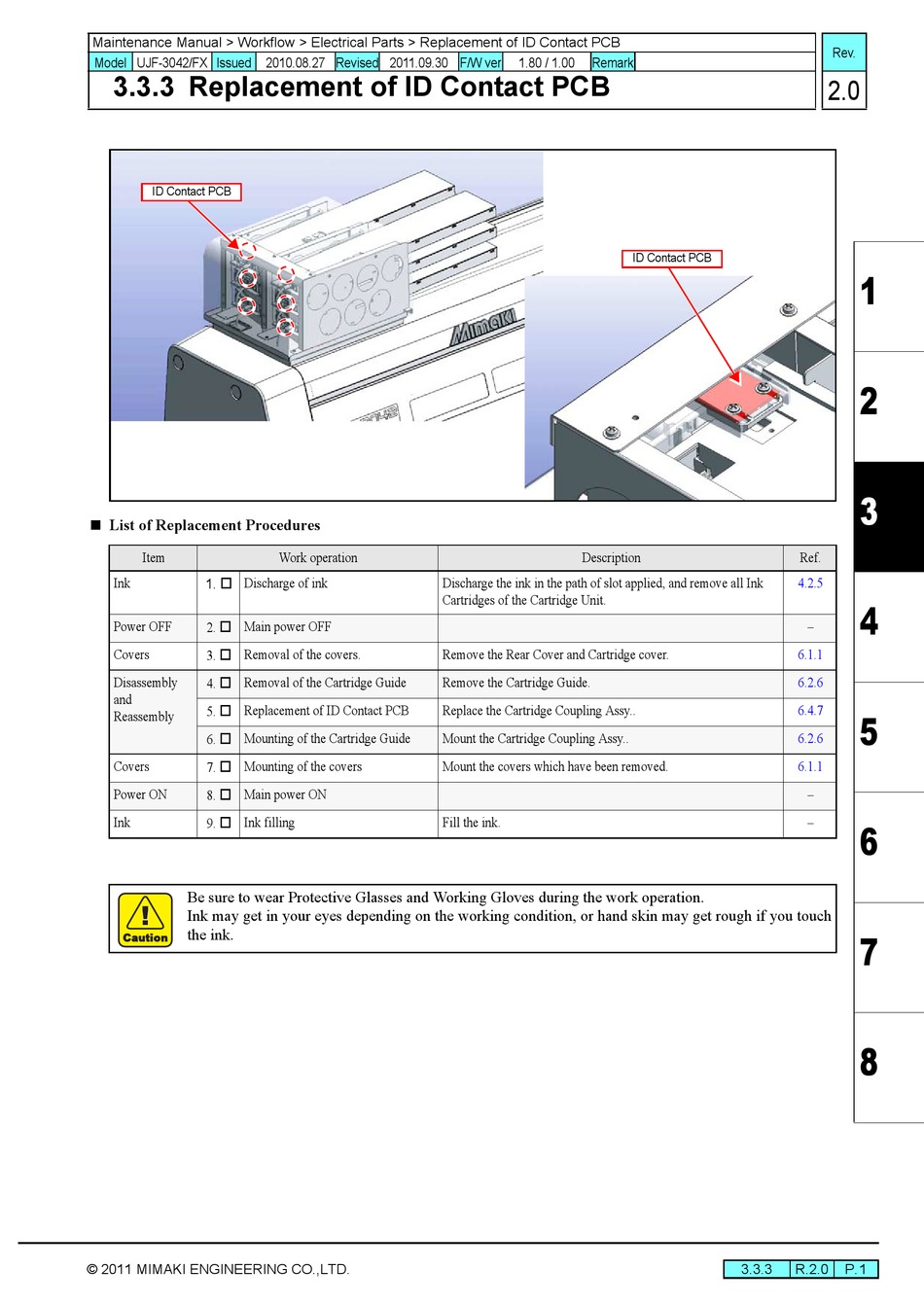

3.3.3 Replacement of ID Contact PCB
ID Contact PCB
 List of Replacement Procedures
Item
Ink
1.
Discharge of ink
Power OFF
Main power OFF
2.
Covers
Removal of the covers.
3.
Disassembly
Removal of the Cartridge Guide
4.
and
Replacement of ID Contact PCB
5.
Reassembly
Mounting of the Cartridge Guide
6.
Covers
Mounting of the covers
7.
Power ON
Main power ON
8.
Ink
Ink filling
9.
Be sure to wear Protective Glasses and Working Gloves during the work operation.
Ink may get in your eyes depending on the working condition, or hand skin may get rough if you touch
the ink.
© 2011 MIMAKI ENGINEERING CO.,LTD.
Work operation
Discharge the ink in the path of slot applied, and remove all Ink
Cartridges of the Cartridge Unit.
Remove the Rear Cover and Cartridge cover.
Remove the Cartridge Guide.
Replace the Cartridge Coupling Assy..
Mount the Cartridge Coupling Assy..
Mount the covers which have been removed.
Fill the ink.
1.80 / 1.00
Remark
ID Contact PCB
Description
Rev.
2.0
1
2
3
Ref.
4.2.5
4
6.1.1
6.2.6
6.4.7
5
6.2.6
6.1.1
6
7
8
3.3.3
R.2.0
P.1
