Maintenance Manual > Workflow > Driving Parts > Replacement of Tabel Absorption Fan
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

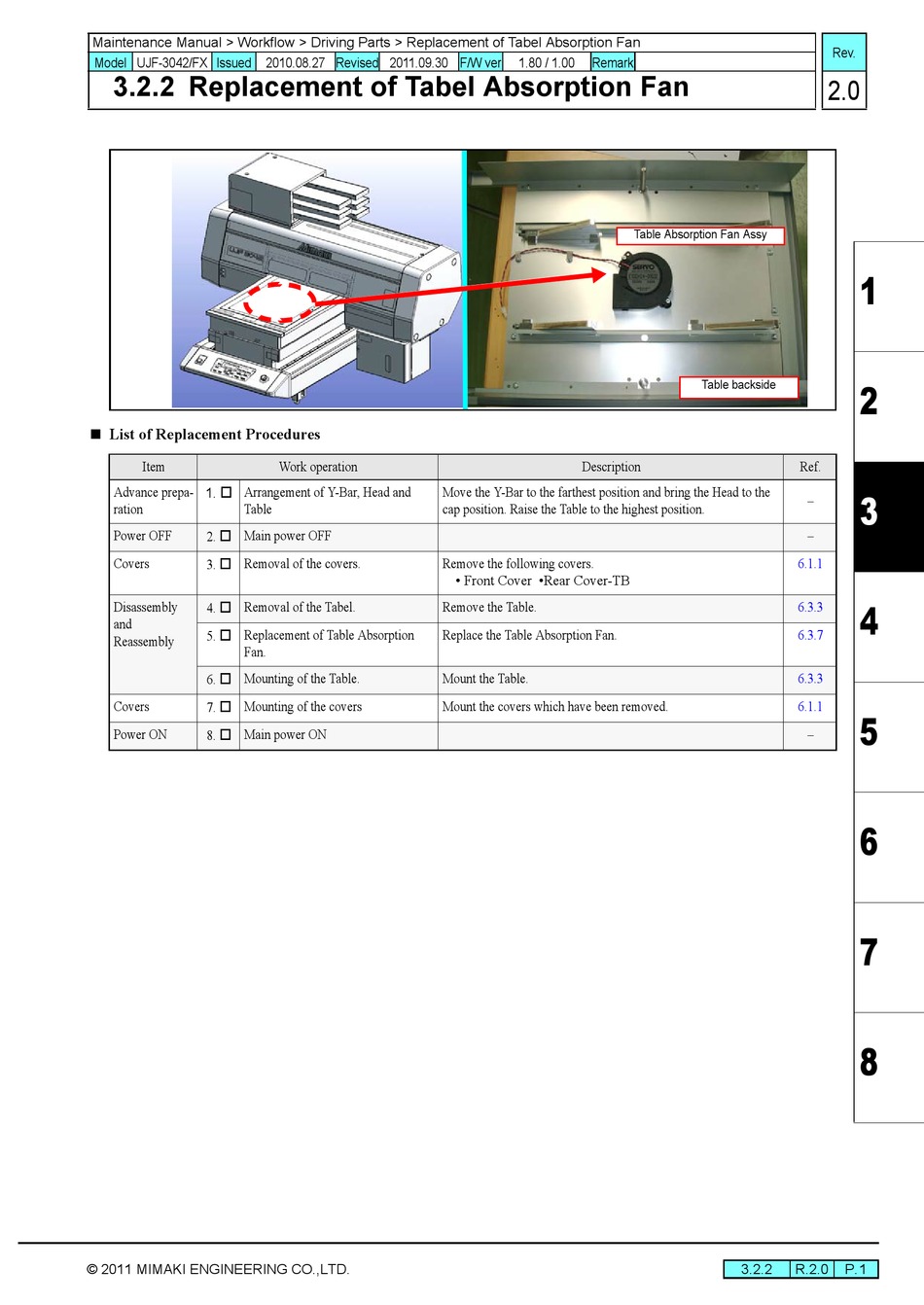

3.2.2 Replacement of Tabel Absorption Fan
 List of Replacement Procedures
Item
Advance prepa-  Arrangement of Y-Bar, Head and
1.
ration Table

Power OFF Main power OFF
2.

Covers Removal of the covers.
3.
Disassembly  Removal of the Tabel.
4.
and
 Replacement of Table Absorption
5.
Reassembly
Fan.

Mounting of the Table.
6.
Covers  Mounting of the covers
7.
Power ON  Main power ON
8.
© 2011 MIMAKI ENGINEERING CO.,LTD.
Work operation
Move the Y-Bar to the farthest position and bring the Head to the
cap position. Raise the Table to the highest position.
Remove the following covers.
Remove the Table.
Replace the Table Absorption Fan.
Mount the Table.
Mount the covers which have been removed.
1.80 / 1.00 Remark
Description
• Front Cover •Rear Cover-TB
Table Absorption Fan Assy
Table backside
Ref.
–
–
6.1.1
6.3.3
6.3.7
6.3.3
6.1.1
–
3.2.2 R.2.0
Rev.
2.0
1
2
3
4
5
6
7
8
P.1
