2011 Mimaki Engineering Co.,Ltd - MIMAKI UJF-3042 Maintenance Manual

Maintenance Manual > Workflow > Ink Related Parts > Replacement of Cartridge Coupling Assy.
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

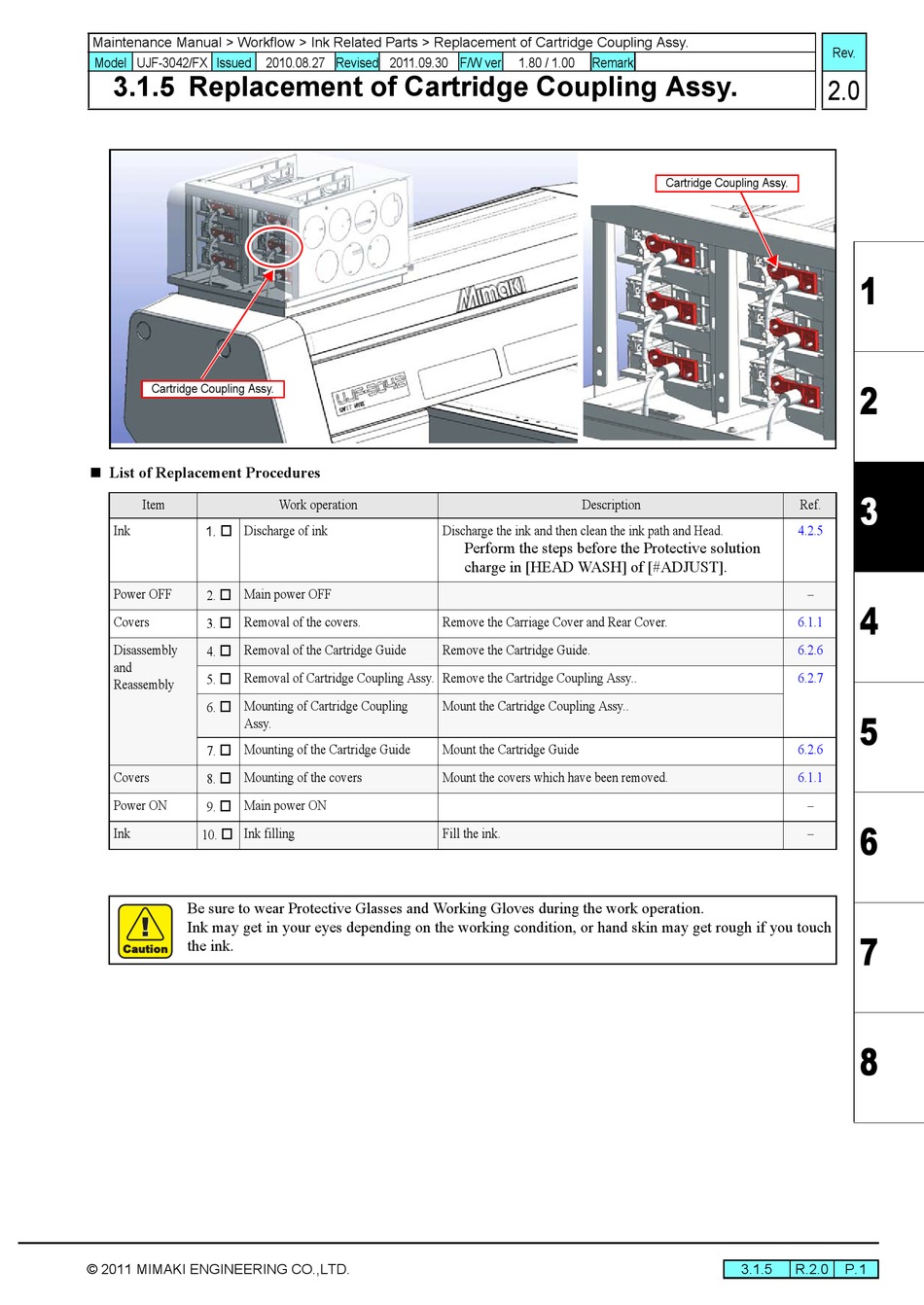

3.1.5 Replacement of Cartridge Coupling Assy.
Cartridge Coupling Assy.
 List of Replacement Procedures
Item

Ink 1. Discharge of ink
Power OFF  Main power OFF
2.

Covers Removal of the covers.
3.

Disassembly Removal of the Cartridge Guide
4.
and
 Removal of Cartridge Coupling Assy. Remove the Cartridge Coupling Assy..
5.
Reassembly
 Mounting of Cartridge Coupling
6.
Assy.

Mounting of the Cartridge Guide
7.
Covers  Mounting of the covers
8.
Power ON  Main power ON
9.
Ink  Ink filling
10.
Be sure to wear Protective Glasses and Working Gloves during the work operation.
Ink may get in your eyes depending on the working condition, or hand skin may get rough if you touch
the ink.
© 2011 MIMAKI ENGINEERING CO.,LTD.
Work operation
Discharge the ink and then clean the ink path and Head.
Remove the Carriage Cover and Rear Cover.
Remove the Cartridge Guide.
Mount the Cartridge Coupling Assy..
Mount the Cartridge Guide
Mount the covers which have been removed.
Fill the ink.
1.80 / 1.00 Remark
Description
Perform the steps before the Protective solution
charge in [HEAD WASH] of [#ADJUST].
Rev.
2.0
Cartridge Coupling Assy.
Ref.
4.2.5
–
6.1.1
6.2.6
6.2.7
6.2.6
6.1.1
–
–
3.1.5 R.2.0
1
2
3
4
5
6
7
8
P.1
