Maintenance Manual > Workflow > Ink Related Parts > Replacement of Cartridge Guide Assy.
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

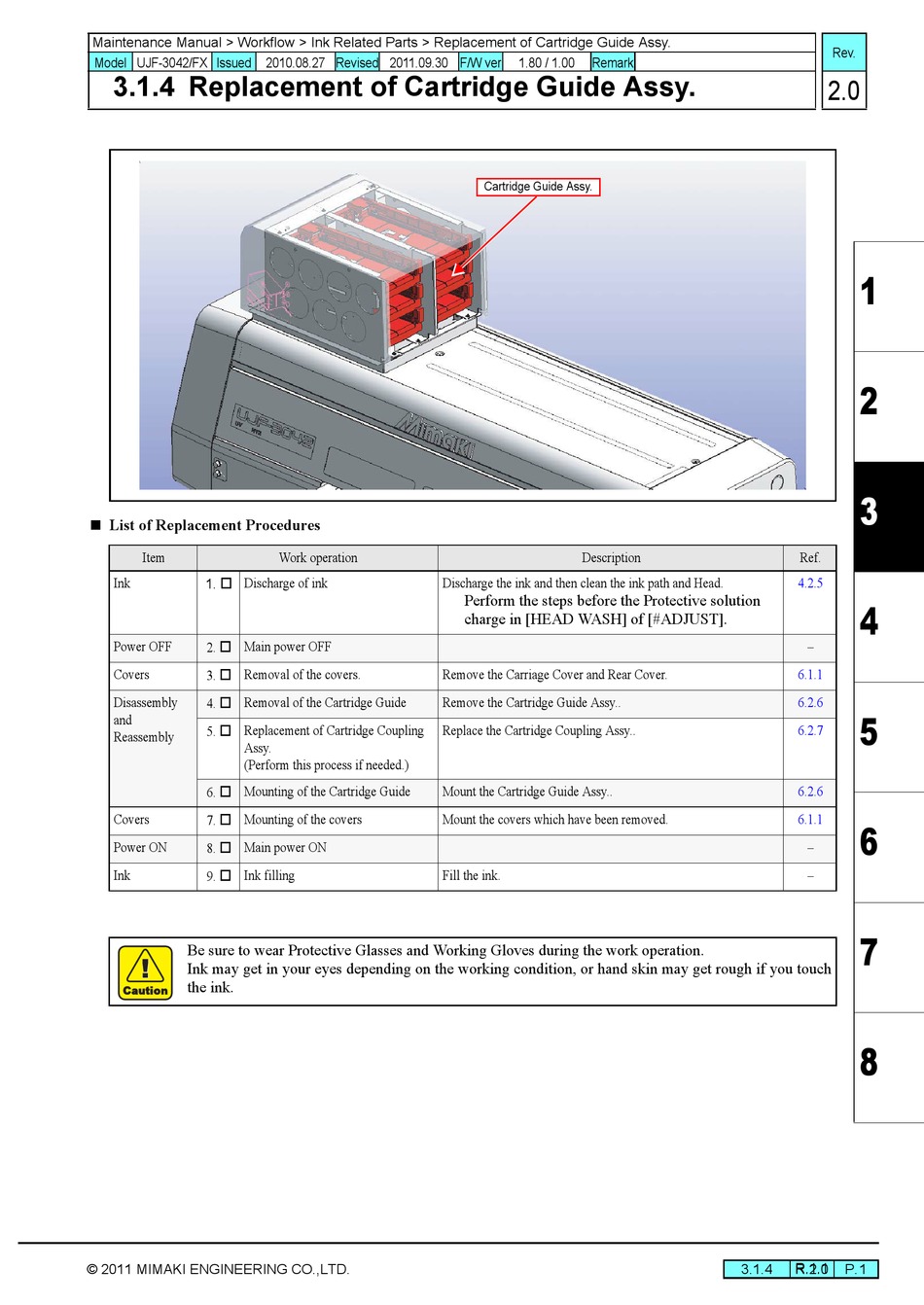

3.1.4 Replacement of Cartridge Guide Assy.
 List of Replacement Procedures
Item

Ink 1. Discharge of ink
Power OFF  Main power OFF
2.

Covers Removal of the covers.
3.
Disassembly  Removal of the Cartridge Guide
4.
and
 Replacement of Cartridge Coupling
5.
Reassembly
Assy.
(Perform this process if needed.)
 Mounting of the Cartridge Guide
6.
Covers  Mounting of the covers
7.
Power ON  Main power ON
8.

Ink Ink filling
9.
Be sure to wear Protective Glasses and Working Gloves during the work operation.
Ink may get in your eyes depending on the working condition, or hand skin may get rough if you touch
the ink.
© 2011 MIMAKI ENGINEERING CO.,LTD.
Work operation
Discharge the ink and then clean the ink path and Head.
Remove the Carriage Cover and Rear Cover.
Remove the Cartridge Guide Assy..
Replace the Cartridge Coupling Assy..
Mount the Cartridge Guide Assy..
Mount the covers which have been removed.
Fill the ink.
1.80 / 1.00 Remark
Cartridge Guide Assy.
Description
Perform the steps before the Protective solution
charge in [HEAD WASH] of [#ADJUST].
Rev.
2.0
1
2
3
Ref.
4.2.5
4
–
6.1.1
6.2.6
5
6.2.7
6.2.6
6.1.1
6
–
–
7
8
R.1.1
3.1.4 R.2.0 P.1
