2011 Mimaki Engineering Co.,Ltd - MIMAKI UJF-3042 Maintenance Manual

Maintenance Manual > Workflow > Ink Related Parts > Replacement of Dumper
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

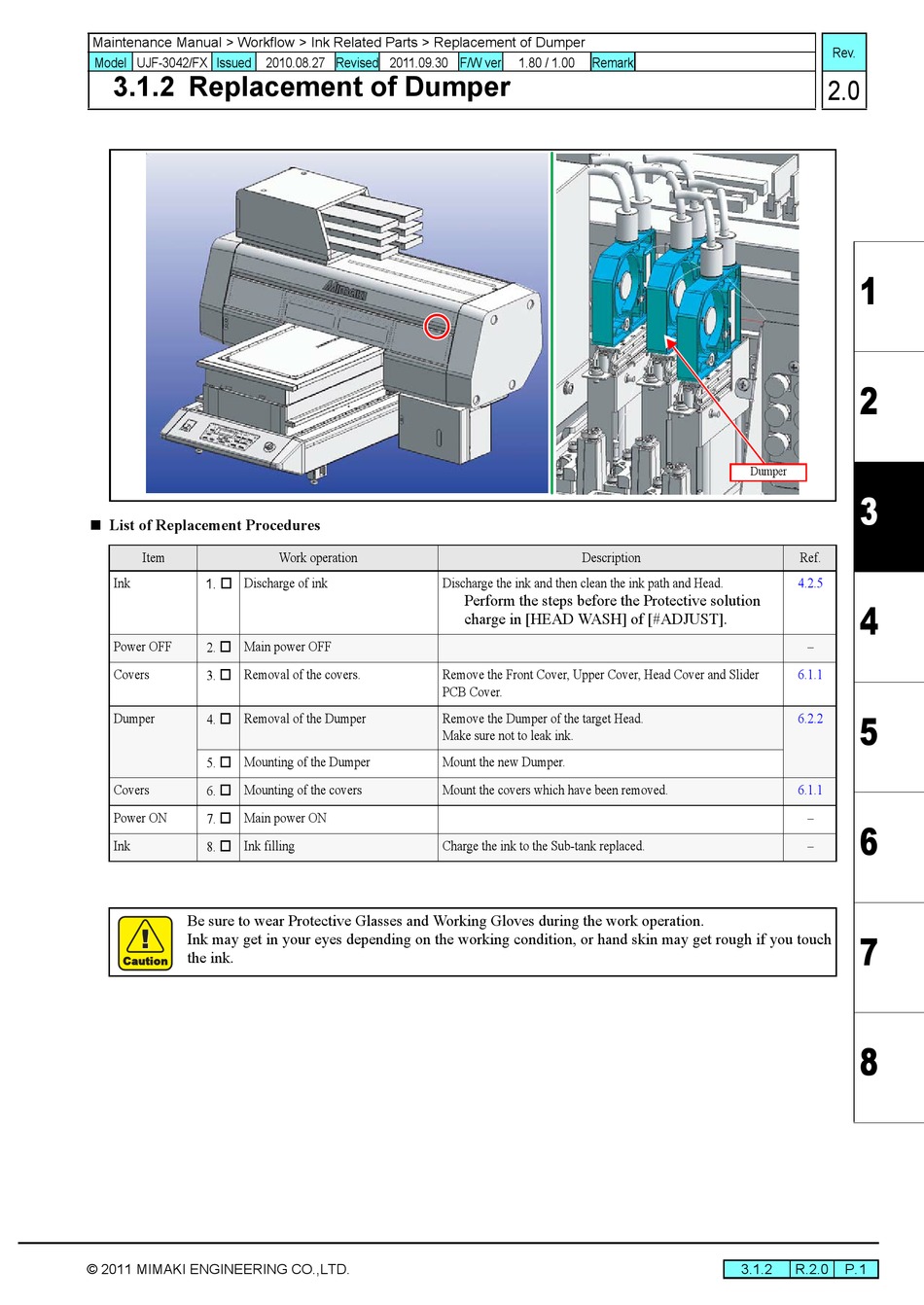

3.1.2 Replacement of Dumper
 List of Replacement Procedures
Item

Ink 1. Discharge of ink
Power OFF  Main power OFF
2.

Covers Removal of the covers.
3.
Dumper  Removal of the Dumper
4.
 Mounting of the Dumper
5.

Covers Mounting of the covers
6.

Power ON Main power ON
7.
Ink  Ink filling
8.
Be sure to wear Protective Glasses and Working Gloves during the work operation.
Ink may get in your eyes depending on the working condition, or hand skin may get rough if you touch
the ink.
© 2011 MIMAKI ENGINEERING CO.,LTD.
Work operation
Discharge the ink and then clean the ink path and Head.
Remove the Front Cover, Upper Cover, Head Cover and Slider
PCB Cover.
Remove the Dumper of the target Head.
Make sure not to leak ink.
Mount the new Dumper.
Mount the covers which have been removed.
Charge the ink to the Sub-tank replaced.
1.80 / 1.00 Remark
Description
Perform the steps before the Protective solution
charge in [HEAD WASH] of [#ADJUST].
Rev.
2.0
1
2
Dumper
3
Ref.
4.2.5
4
–
6.1.1
5
6.2.2
6.1.1
–
6
–
7
8
3.1.2 R.2.0 P.1
