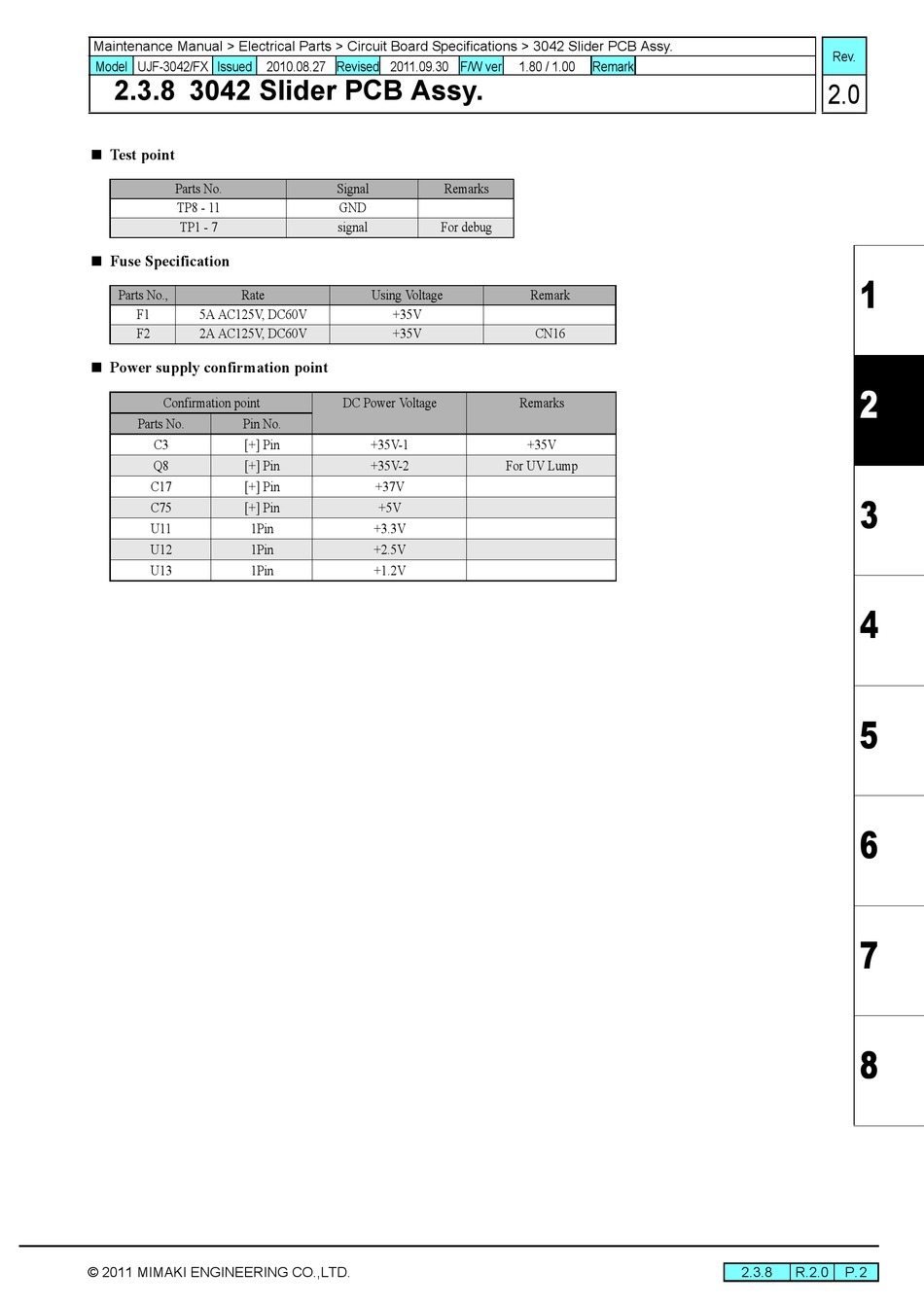

Maintenance Manual > Electrical Parts > Circuit Board Specifications > 3042 Slider PCB Assy.
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver
2.3.8 3042 Slider PCB Assy.
 Test point
Parts No.
TP8 - 11
TP1 - 7
 Fuse Specification
Parts No., Rate
F1 5A AC125V, DC60V
F2 2A AC125V, DC60V
 Power supply confirmation point
Confirmation point
Parts No. Pin No.
C3 [+] Pin
Q8 [+] Pin
C17 [+] Pin
C75 [+] Pin
U11 1Pin
U12 1Pin
U13 1Pin
