MIMAKI UJF-3042 Maintenance Manual page 39

Maintenance Manual > Electrical Parts > Circuit Board Specifications > 3042 Slider Relay PCB Assy.
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

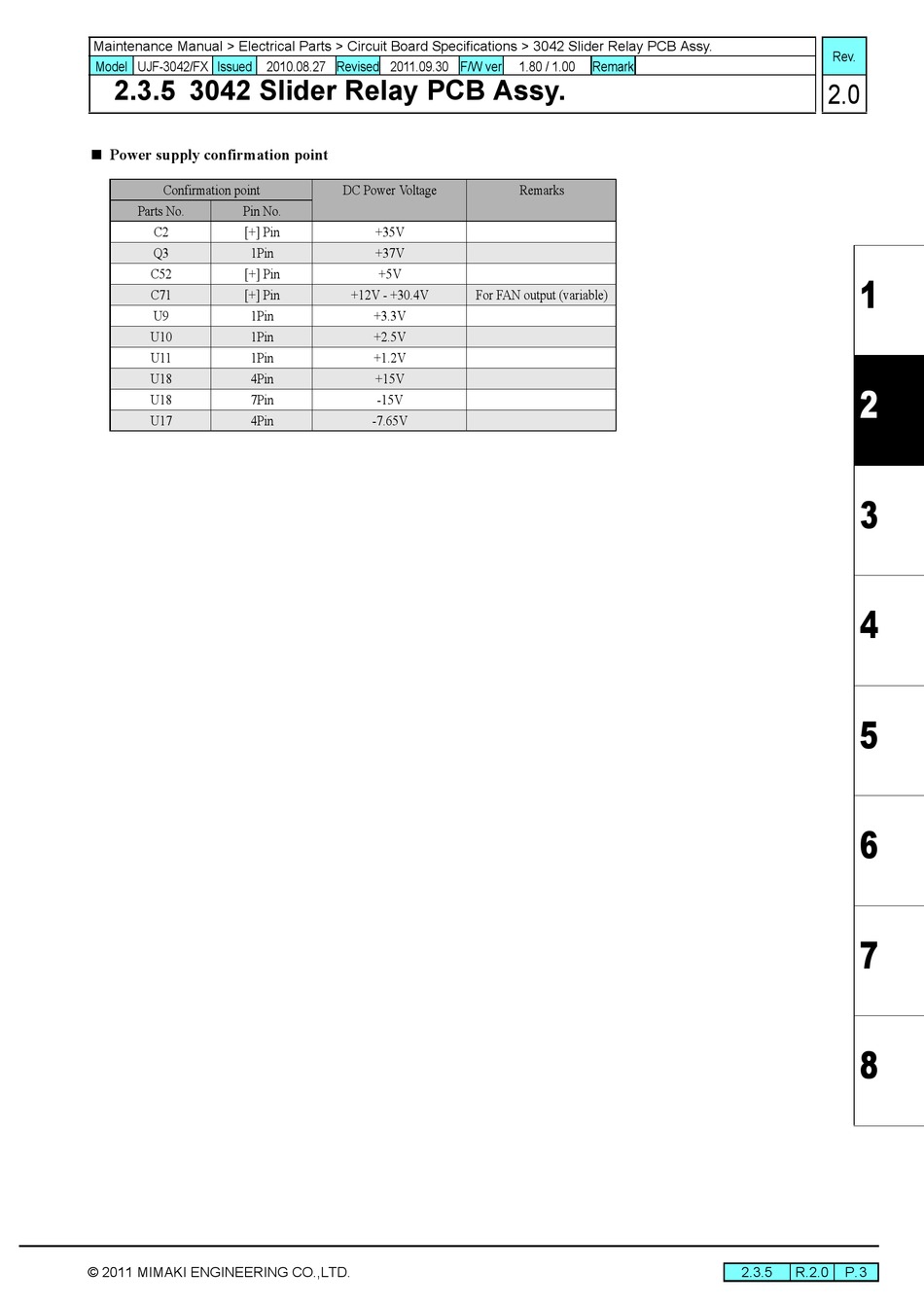

2.3.5 3042 Slider Relay PCB Assy.
 Power supply confirmation point
Confirmation point
Parts No. Pin No.
C2 [+] Pin
Q3 1Pin
C52 [+] Pin
C71 [+] Pin
U9 1Pin
U10 1Pin
U11 1Pin
U18 4Pin
U18 7Pin
U17 4Pin
© 2011 MIMAKI ENGINEERING CO.,LTD.
DC Power Voltage
+35V
+37V
+5V
+12V - +30.4V For FAN output (variable)
+3.3V
+2.5V
+1.2V
+15V
-15V
-7.65V
1.80 / 1.00 Remark
Remarks
Rev.
2.0
1
2
3
4
5
6
7
8
2.3.5 R.2.0 P.3
