Maintenance Manual > Electrical Parts > Circuit Board Specifications > 3042 Station3 PCB Assy.
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

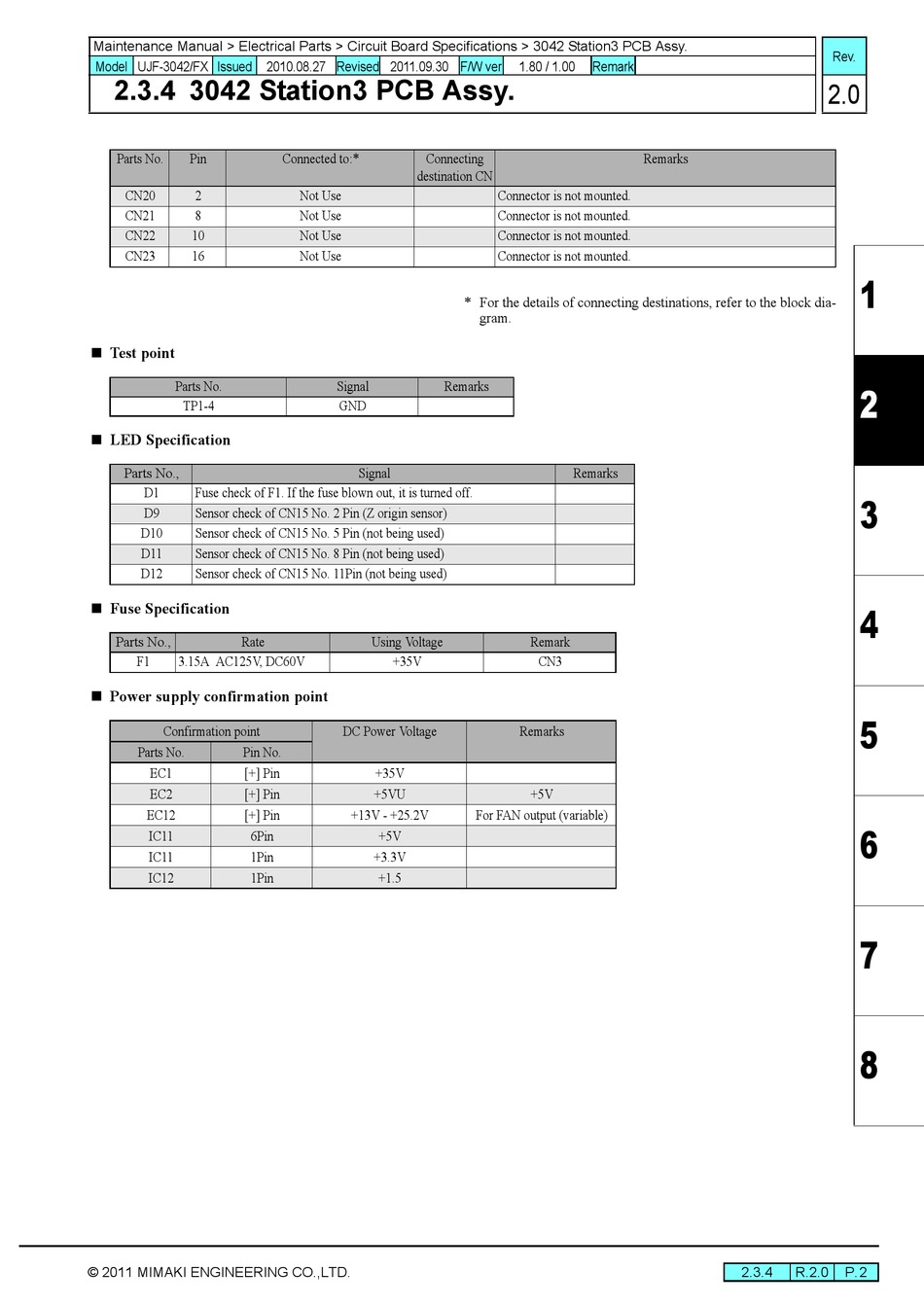

2.3.4 3042 Station3 PCB Assy.
Parts No. Pin
CN20 2
CN21 8
CN22 10
CN23 16
 Test point
Parts No.
TP1-4
 LED Specification
Parts No.,
D1 Fuse check of F1. If the fuse blown out, it is turned off.
D9 Sensor check of CN15 No. 2 Pin (Z origin sensor)
D10 Sensor check of CN15 No. 5 Pin (not being used)
D11 Sensor check of CN15 No. 8 Pin (not being used)
D12 Sensor check of CN15 No. 11Pin (not being used)
 Fuse Specification
Parts No., Rate
F1 3.15A AC125V, DC60V
 Power supply confirmation point
Confirmation point
Parts No. Pin No.
EC1 [+] Pin
EC2 [+] Pin
EC12 [+] Pin
IC11 6Pin
IC11 1Pin
IC12 1Pin
