Maintenance Manual > Electrical Parts > Circuit Board Specifications > Power Supply PCB Assy.
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

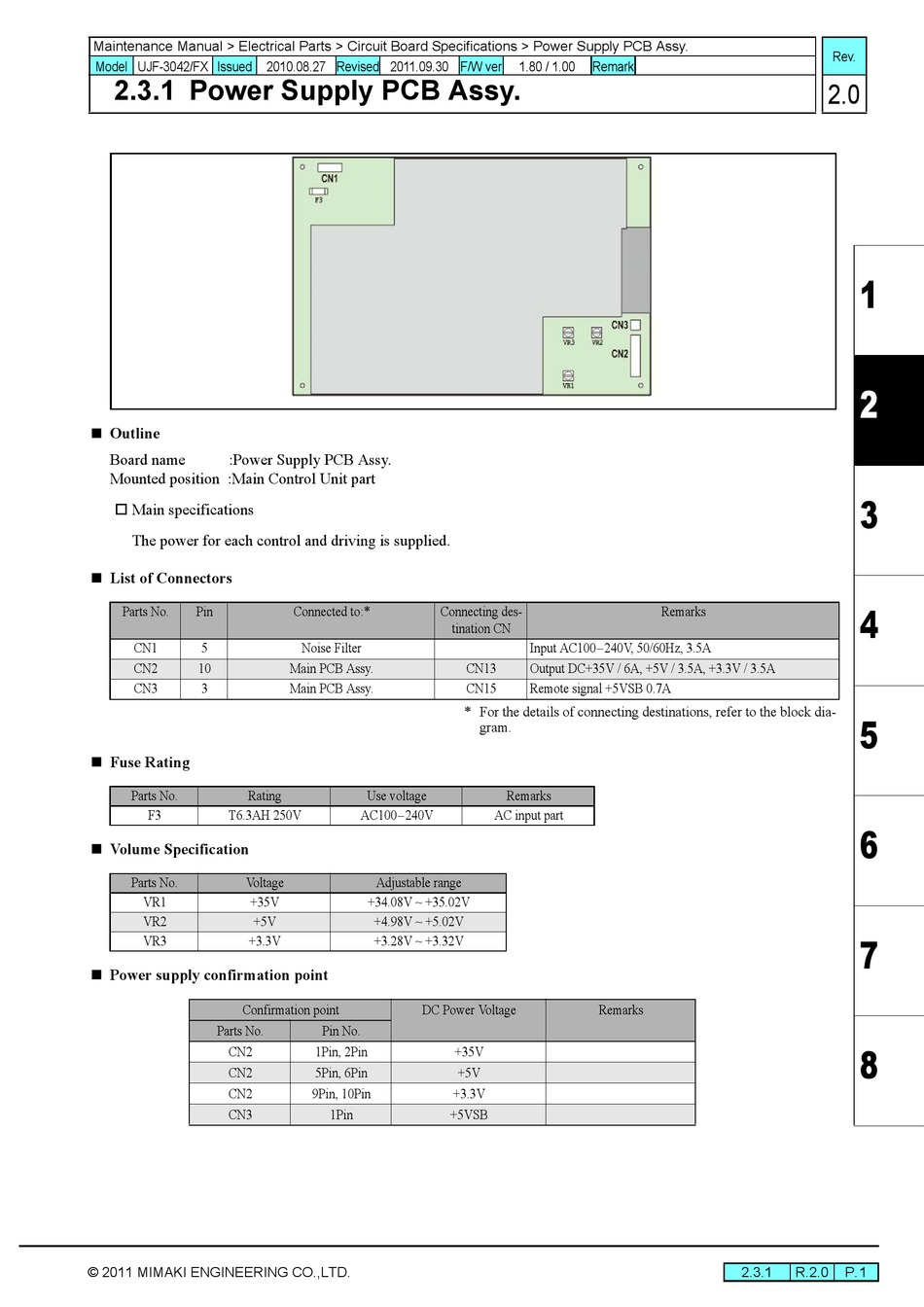

2.3.1 Power Supply PCB Assy.
 Outline
Board name :Power Supply PCB Assy.
Mounted position :Main Control Unit part
 Main specifications
The power for each control and driving is supplied.
 List of Connectors
Parts No. Pin
CN1 5
CN2 10
CN3 3
 Fuse Rating
Parts No. Rating
F3 T6.3AH 250V
 Volume Specification
Parts No. Voltage
VR1 +35V
VR2 +5V
VR3 +3.3V
 Power supply confirmation point
Confirmation point
Parts No.
CN2
CN2
CN2
CN3
© 2011 MIMAKI ENGINEERING CO.,LTD.
Connected to:* Connecting des-
tination CN
Noise Filter
Main PCB Assy.
Main PCB Assy.
Use voltage
AC100–240V
Adjustable range
+34.08V ~ +35.02V
+4.98V ~ +5.02V
+3.28V ~ +3.32V
DC Power Voltage
Pin No.
1Pin, 2Pin +35V
5Pin, 6Pin +5V
9Pin, 10Pin +3.3V
1Pin +5VSB
1.80 / 1.00 Remark
Input AC100–240V, 50/60Hz, 3.5A
CN13 Output DC+35V / 6A, +5V / 3.5A, +3.3V / 3.5A
CN15 Remote signal +5VSB 0.7A
* For the details of connecting destinations, refer to the block dia-
gram.
Remarks
AC input part
Remarks
Rev.
2.0
Remarks
2.3.1 R.2.0
1
2
3
4
5
6
7
8
P.1
